PXI-7841R, 200 kS/s, Multifunction Reconfigurable I/O Module

Rated 4.7/5  |  18 ratings

PXI-7841R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-7841R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7841R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7841R New
PXI-7841R Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PXI-7841R

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments PXI-7841R PXI Multifunction Reconfigurable I/O Module

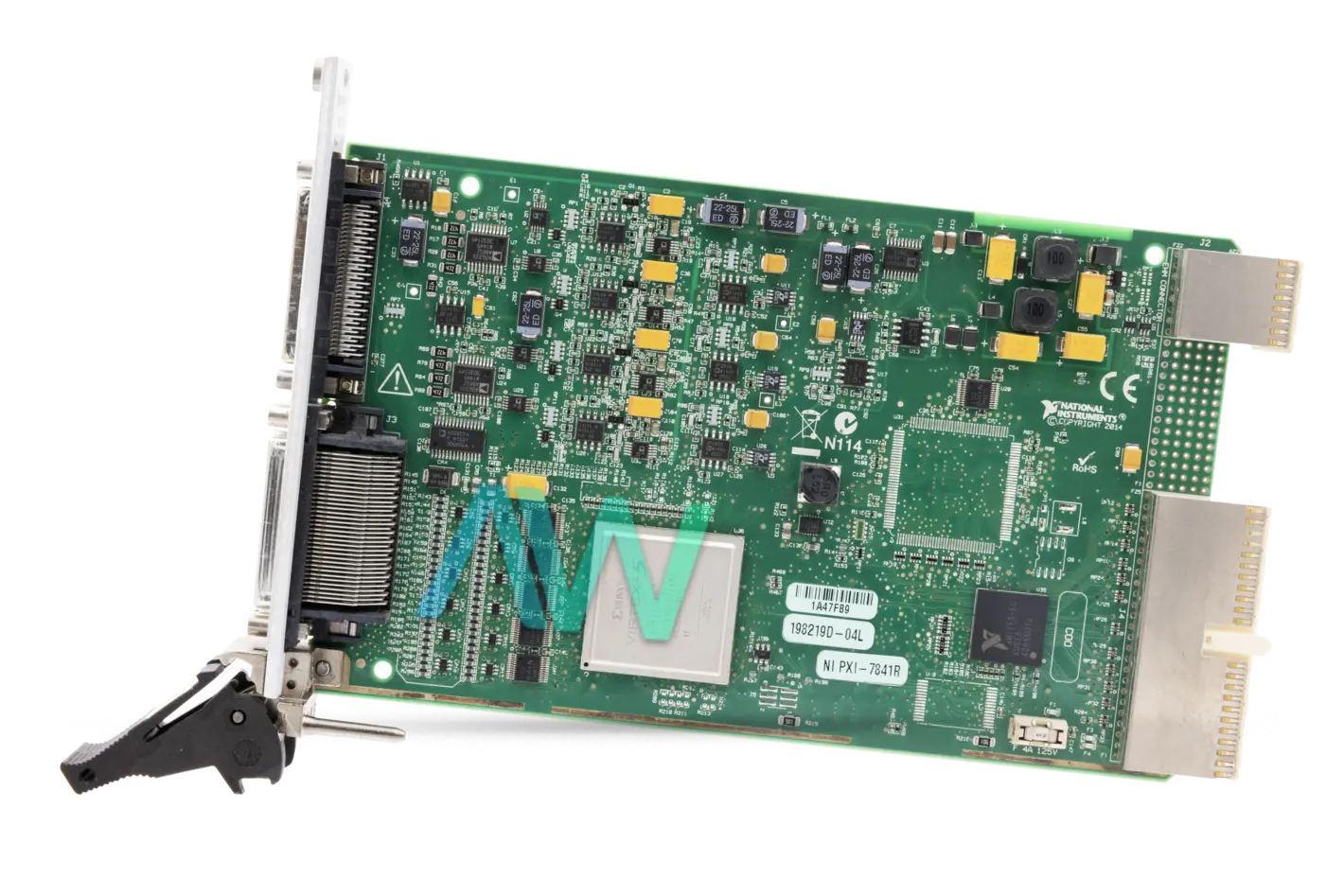

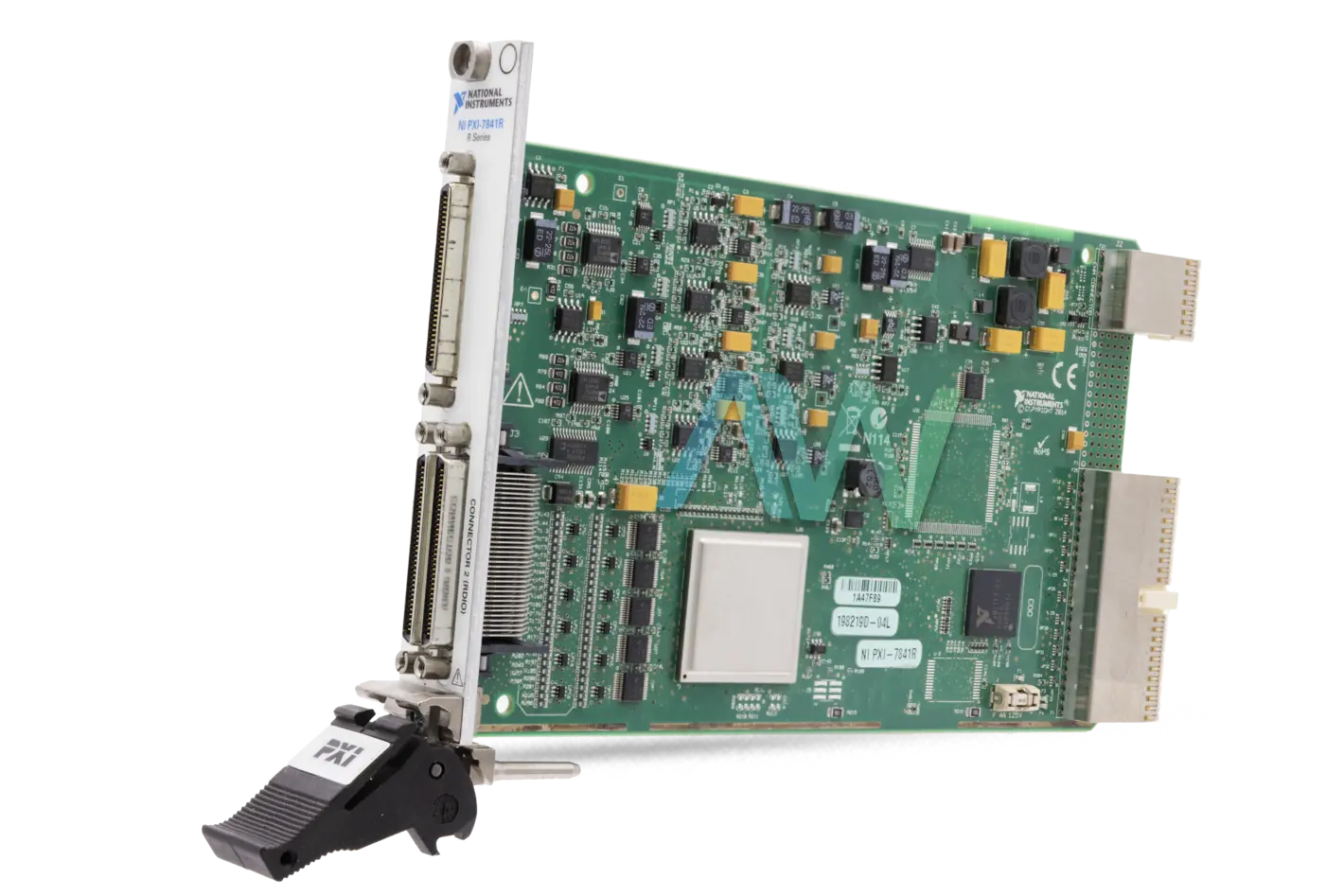

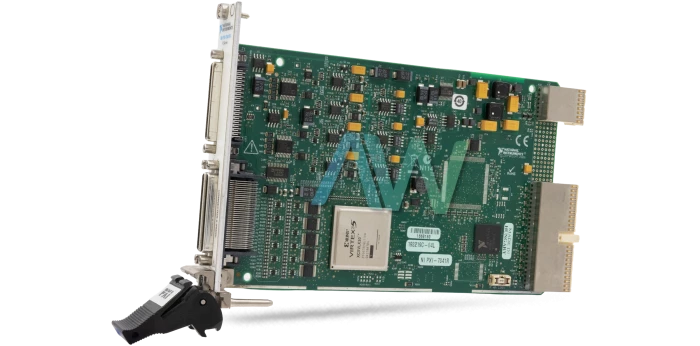

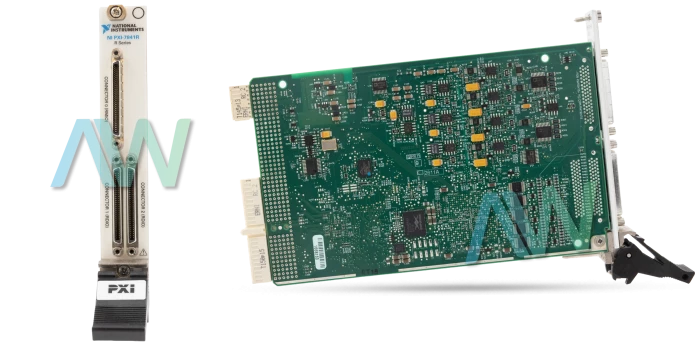

The PXI-7841R (Part Numbers: 780337-01, 198219D-04L) Multifunction Reconfigurable I/O Module is a member of the R Series by National Instruments. This module has the following specifications: a maximum sample rate of 200 kS/s, eight analog input channels, eight analog output channels, 96 bidirectional digital channels, an analog input voltage range from -10 V to 10 V, 3.3V, 5V digital I/O logic levels, a Virtex-5 LX30 FPGA, and a maximum clock rate of 40 MHz.

The greatest feature of the PXI-7841R Multifunction Reconfigurable I/O Module is its versatility to meet separate application requirements. As an example, this module can be arranged in one application for three 32-bit quadrature encoders, then the user can arrange it for eight 16-bit event counters in the next application.

A Field-Programmable Gate Array, or FPGA, can be re-arranged by the user. The FPGA controls the analog I/O lines and permits the user to designate the functionality and timing of the module. By utilizing LabVIEW on a LabVIEW FPGA Module, the user can modify the functionality of the FPGA on the PXI-7841R or any other RIO module in the R Series. The user can additionally construct and download a unique virtual instrument (VI) to the FPGA. Other functions, such as floating-point processing, real-time, or datalogging can be accomplished while completing I/O and logic on the National Instruments PXI-7841R module. The Multifunction Reconfigurable I/O Module has Flash memory for saving an initial VI for automatic loading of the FPGA when the module is turned on.

PXI-7841R Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7841R
ManufacturerNational Instruments
Part Numbers780337-01, 198219D-04L
SeriesR Series
TypePXI Multifunction Reconfigurable I/O Module
FPGAVirtex-5 LX30
Maximum Sample Rate200 kS/s
Channels8 AI, 8 AO, 96 digital
PXI-7841R ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-7841R:

National Instruments PXI-7841R Frequently Asked Questions



Question: How many digital lines does the PXI-7841R have?

Answer: The PXI-7841R has 96 digital lines configurable as inputs, outputs, counters, or custom logic.



Question: What FPGA is used with the PXI 7841R?

Answer: The PXI 7841R has a Virtex-5 LX30 FPGA.



Question: Is the triggering on the NI PXI-7841R user-defined?
Answer: Yes, the NI PXI-7841R has user-defined triggering, timing, and decision making.
