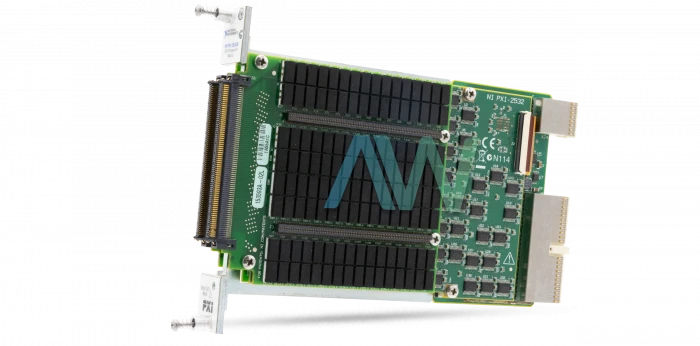

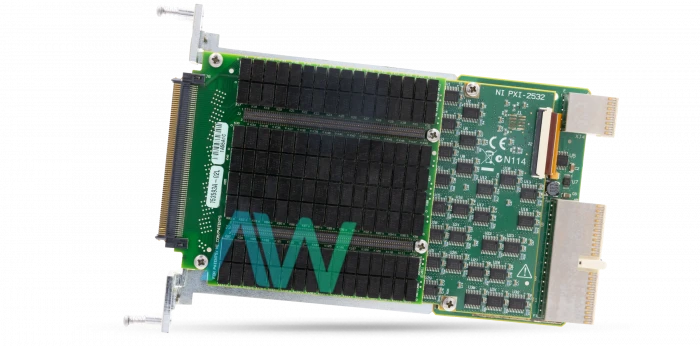

PXI-2532B National Instruments Matrix Switch Module | Apex Waves | Image PXI-2532B National Instruments Matrix Switch Module | Apex Waves | ImagePXI-2532B NewPXI-2532B | Legacy, Refurbished and New Surplus
PXI-2532B National Instruments Matrix Switch Module | Apex Waves | Image
PXI-2532B National Instruments Matrix Switch Module | Apex Waves | Image
PXI-2532B New
PXI-2532B | Legacy, Refurbished and New Surplus

PXI-2532B

4.6/5 | 13 ratings

Modular Systems > National Instruments > PXI Matrix Switch Modules

Part Number PXI-2532B
Manufacturer/Brand National Instruments
Description: PXI-2532B, 512-Crosspoint, Matrix Switch Module
In Stock | Ships in 5-10 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXI-2532B PXI Matrix Switch Module

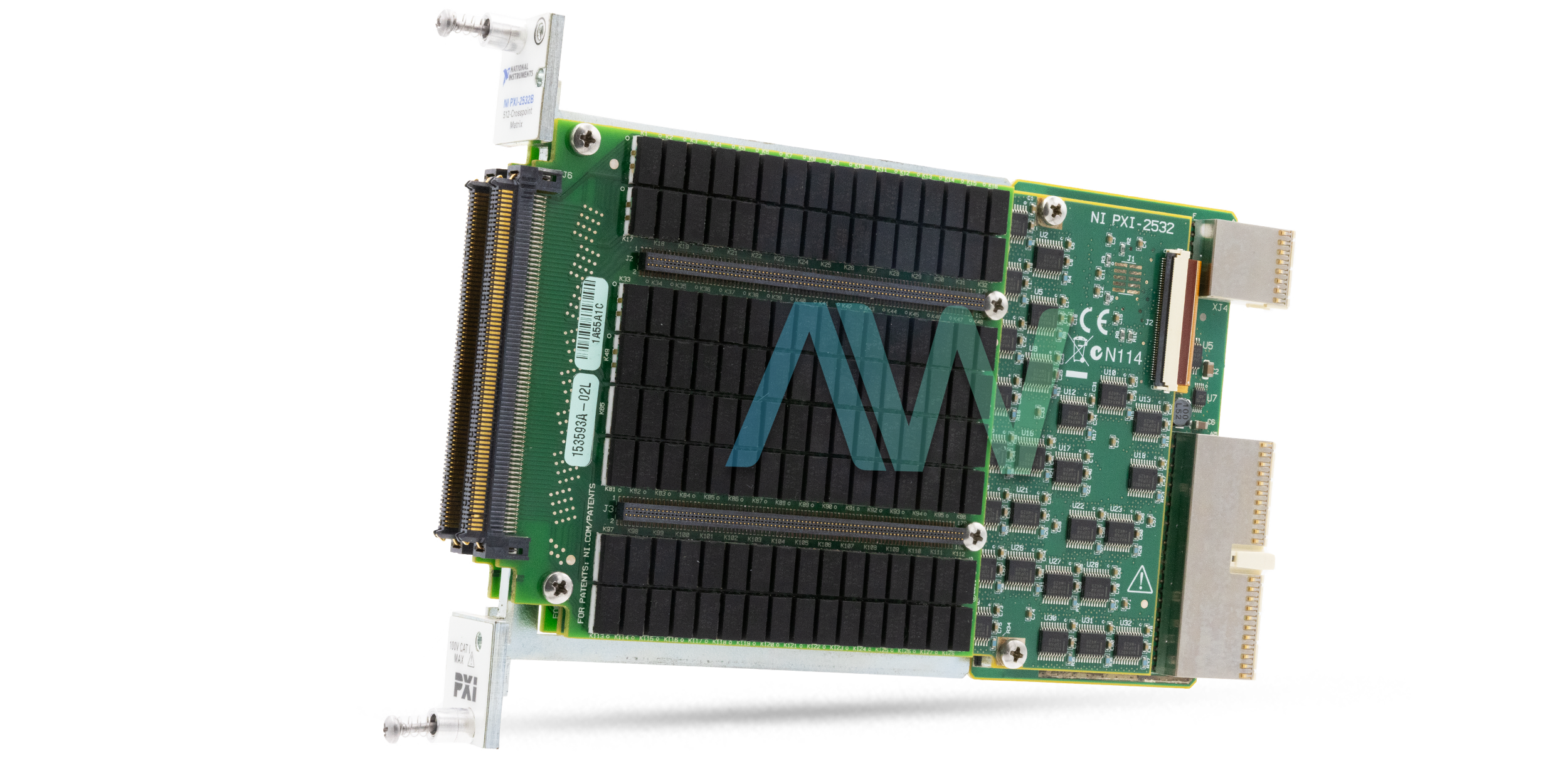

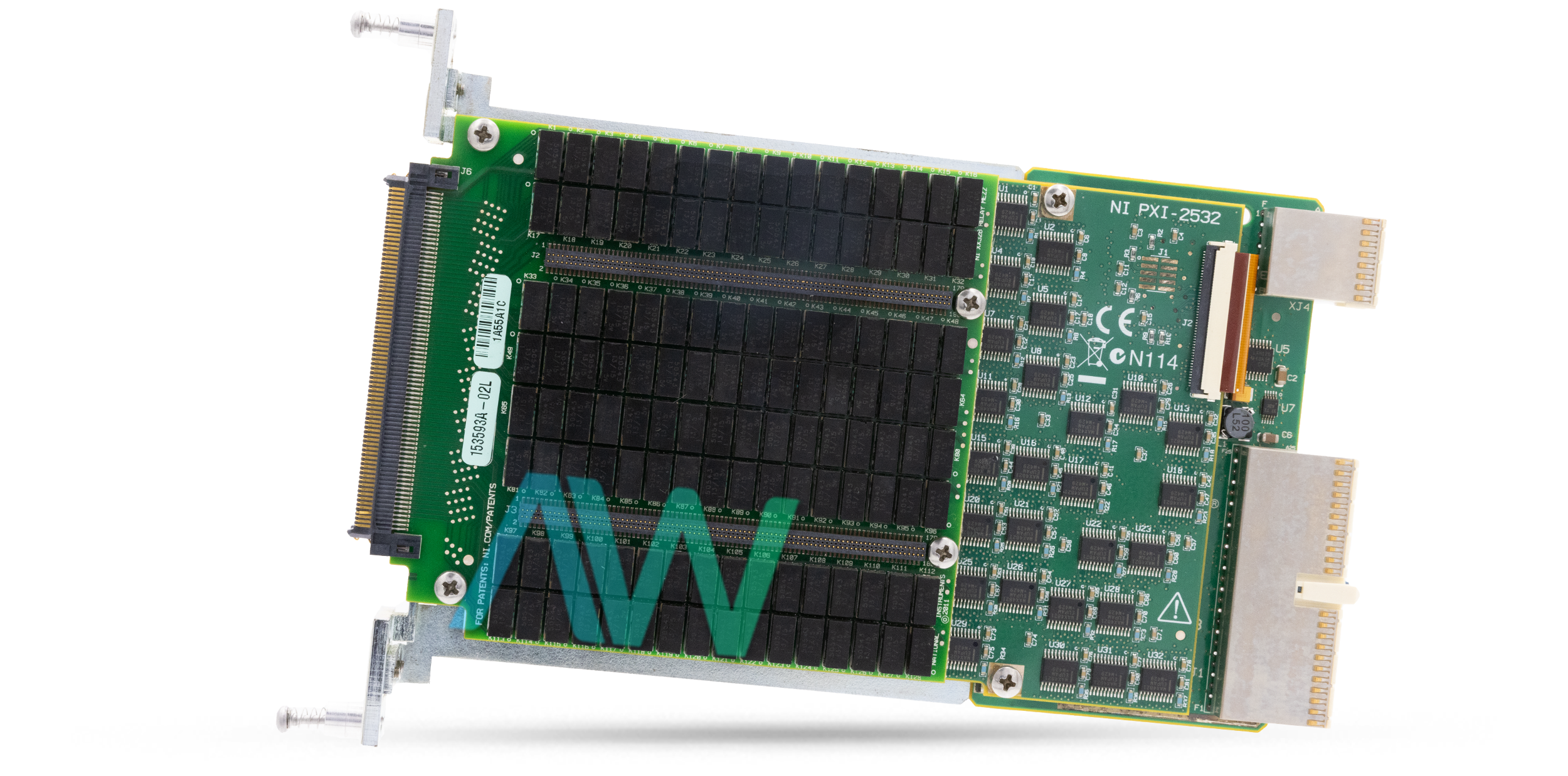

The NI PXI-2532B (Part Number: 782383-01) is a 512-crosspoint, rapid Matrix Switch Module. With the biggest framework measure accessible in a 3U PXI slot, the NI PXI-2532B offers ultra-high-density switch arrangements in the PXI platform. With the capacity to make up to a 4x2176 or 8x1088 one-wire matrix in a single frame and considerably bigger arrangements with multi-chassis arrangements, the National Instruments PXI-2532B is perfect for high-channel-count automated test setups. Highlighting compact reed relays with changing rates as fast as 2,000 cycles per second and the capacity to synchronize with instruments, the NI PXI 2532B gives the most extreme throughput in a test framework for signals up to 100 VDC/100 Vp or 0.5 A. The device has a channel-to-channel maximum switching voltage of 100 V, and a channel-to-ground maximum switching voltage of 100V, CAT 1. It has a maximum switching power of 10 W per channel.

If the user needs a matrix estimate bigger than one of the standard NI PXI 2532B designs, it is possible to use the NI R1616 section extension link to interconnect the columns of two PXI 2532B modules via a TB-264xB terminal square. For example, the user can make a 4x256 one-wire matrix with two NI PXI 2532B modules, two TB-2640B terminal blocks, and one R1616 segment development link interconnected between the TB-2640B terminal blocks.

The PXI instrument has a simultaneous drive limit of 40 relays, a mechanical relay life of 1 × 109 cycles, an electrical relay life ranging from 1 × 107 cycles through 5 × 106 cycles, to 5 × 105 cycles. The device is equipped with 2 Samtec ERM8-EM series I/O connectors.
The PXI-2532B Switch Module is perfect for high-channel-count applications that need to associate estimation or signal generation instruments to different test points on gadgets or units under test (DUTs or UUTs). The PXI 2532B PXI Matrix Switch Module has more than 10 matrix topology combinations available, since it has the capability to be used with a variety of terminal block accessories, making it an extremely diverse module. The device weighs 1 lb, and has the dimensions: 7.3 x 0.8 x 5.1 in.

ModelPXI-2532B
Part Number782383-01
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints512
Mode (n-wire)1-wire, 2-wire
Number of Banks1, 16, 2, 4
Dimensions7.3 x 0.8 x 5.1 in.
Weight1 lb.
WarrantyThree Year Warranty
PXI-2532B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2532B Frequently Asked Questions



Question: What type of relays are on the National Instruments PXI-2532B?



Answer: The National Instruments PXI-2532B has reed relays.



Question: What is the switch bandwidth on the PXI-2532B?



Answer: The switch bandwidth on the PXI-2532B Is 30 MHz.



Question: What is the NI PXI-2532B scan rate?



Answer: The NI PXI-2532B scan rate is 2,000 cycles/s.



Question: How many rows are on the PXI-2532B?



Answer: There are 16, 2, 4, 8 rows on the PXI-2532B.



  PXI-2532B PDF Manuals

  PXI-2532B Diagrams


Why Buy From Apex Waves:

Apex Waves Youtube Video


Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page:
Associated Part Numbers:
Common Typos: OXI-2532B, PZI-2532B, PSI-2532B, PXU-2532B, PXL-2532B

PXI-2532B


PXI-2532B

PXI-2532B, 512-Crosspoint, Matrix Switch Module

In Stock | Ships in 5-10 Days
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

National Instruments PXI-2532B PXI Matrix Switch Module

The NI PXI-2532B (Part Number: 782383-01) is a 512-crosspoint, rapid Matrix Switch Module. With the biggest framework measure accessible in a 3U PXI slot, the NI PXI-2532B offers ultra-high-density switch arrangements in the PXI platform. With the capacity to make up to a 4x2176 or 8x1088 one-wire matrix in a single frame and considerably bigger arrangements with multi-chassis arrangements, the National Instruments PXI-2532B is perfect for high-channel-count automated test setups. Highlighting compact reed relays with changing rates as fast as 2,000 cycles per second and the capacity to synchronize with instruments, the NI PXI 2532B gives the most extreme throughput in a test framework for signals up to 100 VDC/100 Vp or 0.5 A. The device has a channel-to-channel maximum switching voltage of 100 V, and a channel-to-ground maximum switching voltage of 100V, CAT 1. It has a maximum switching power of 10 W per channel.

If the user needs a matrix estimate bigger than one of the standard NI PXI 2532B designs, it is possible to use the NI R1616 section extension link to interconnect the columns of two PXI 2532B modules via a TB-264xB terminal square. For example, the user can make a 4x256 one-wire matrix with two NI PXI 2532B modules, two TB-2640B terminal blocks, and one R1616 segment development link interconnected between the TB-2640B terminal blocks.

The PXI instrument has a simultaneous drive limit of 40 relays, a mechanical relay life of 1 × 109 cycles, an electrical relay life ranging from 1 × 107 cycles through 5 × 106 cycles, to 5 × 105 cycles. The device is equipped with 2 Samtec ERM8-EM series I/O connectors.
The PXI-2532B Switch Module is perfect for high-channel-count applications that need to associate estimation or signal generation instruments to different test points on gadgets or units under test (DUTs or UUTs). The PXI 2532B PXI Matrix Switch Module has more than 10 matrix topology combinations available, since it has the capability to be used with a variety of terminal block accessories, making it an extremely diverse module. The device weighs 1 lb, and has the dimensions: 7.3 x 0.8 x 5.1 in.

ModelPXI-2532B
Part Number782383-01
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints512
Mode (n-wire)1-wire, 2-wire
Number of Banks1, 16, 2, 4
Dimensions7.3 x 0.8 x 5.1 in.
Weight1 lb.
WarrantyThree Year Warranty
PXI-2532B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2532B Frequently Asked Questions



Question: What type of relays are on the National Instruments PXI-2532B?



Answer: The National Instruments PXI-2532B has reed relays.



Question: What is the switch bandwidth on the PXI-2532B?



Answer: The switch bandwidth on the PXI-2532B Is 30 MHz.



Question: What is the NI PXI-2532B scan rate?



Answer: The NI PXI-2532B scan rate is 2,000 cycles/s.



Question: How many rows are on the PXI-2532B?



Answer: There are 16, 2, 4, 8 rows on the PXI-2532B.
