USB-7845R National Instruments Multifunction Reconfigurable I/O Device | Apex Waves | Image USB-7845R National Instruments Multifunction Reconfigurable I/O Device | Apex Waves | ImageUSB-7845RUSB-7845R | Legacy, Refurbished and New Surplus
USB-7845R National Instruments Multifunction Reconfigurable I/O Device | Apex Waves | Image
USB-7845R National Instruments Multifunction Reconfigurable I/O Device | Apex Waves | Image
USB-7845R New
USB-7845R | Legacy, Refurbished and New Surplus

USB-7845R

4.9/5 | 17 ratings

Modular Systems > National Instruments > R Series

Part Number USB-7845R
Manufacturer/Brand National Instruments
Description: USB-7845R, 48-Channel, Multifunction Reconfigurable I/O Device
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

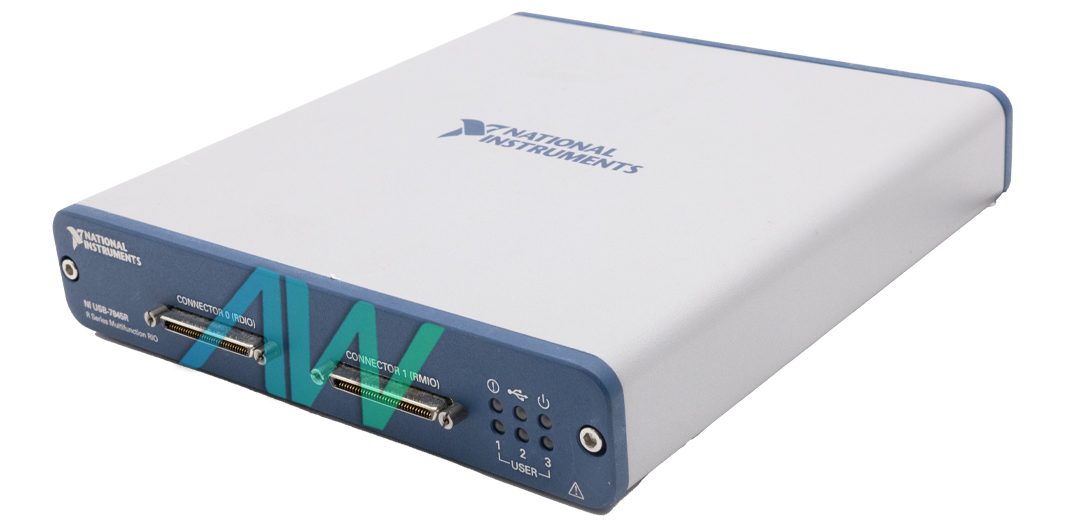

National Instruments USB-7845R Multifunction Reconfigurable I/O Device

The USB-7845R is a Multifunction Reconfigurable I/O Device. The USB-7845R has been designed and launched by National Instruments. The National Instruments USB-7845R can provide connectivity for 8 AI (analog input) channels, 8 AO (analog output) channels, and 48 DIO (digital input/output) channels. National Instruments offers the USB-7845R with the part numbers 783200-02 and 783200-01. The only difference between the part numbers is that part number 783200-01 is an enclosed device. Every channel of the National Instruments USB-7845R possesses three pins AI+, AI-, and AIGND. Therefore, the end-user can connect both differential voltage signals and single-ended signals. The USB-7845R also has a pin called AISENSE. This pin can be used to connect single-ended signals that are non-referenced.

While connecting single-ended, referenced voltage signals to the NI USB-7845R, the end-user should connect the voltage GND signal to the AI GND. This is necessary to retain the common mode voltage in the defined range. The end-user can connect the sources of the ground or float differential signals with the USB-7845R Multifunction Reconfigurable I/O Device. The negative signal will be connected to the AI- and the positive signal will be connected to AI+. To connect the ground diff signal to the NI USB-7845R, the end-user must connect the reference signal to the AI Ground.

While connecting floating diff signals to the National Instruments USB-7845R, the end-user must connect the positive signals of the negative end to the AI Ground from a resistor of one MΩ. The USB-7845R can sample data at a maximum rate of 500 kS/sec/channel.

ModelUSB-7845R (USB-7845)
ManufacturerNational Instruments
Part Numbers783200-02, 783200-01, 154803-03L, and 154803-13L
SeriesR Series
TypeMultifunction Reconfigurable I/O Device
Bus ConnectorUSB 2.0
Bidirectional Digital Channels48
EnclosedNo
FPGAKintex-7 70T
Maximum Sample Rate500 kS/s
Maximum Clock Rate3280 MHz
Analog Input Resolution16 bits
Dimensions7.3 x 6.8 x 1.4 in.
Weight3 lbs.
WarrantyOne Year Warranty
USB-7845R ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.
