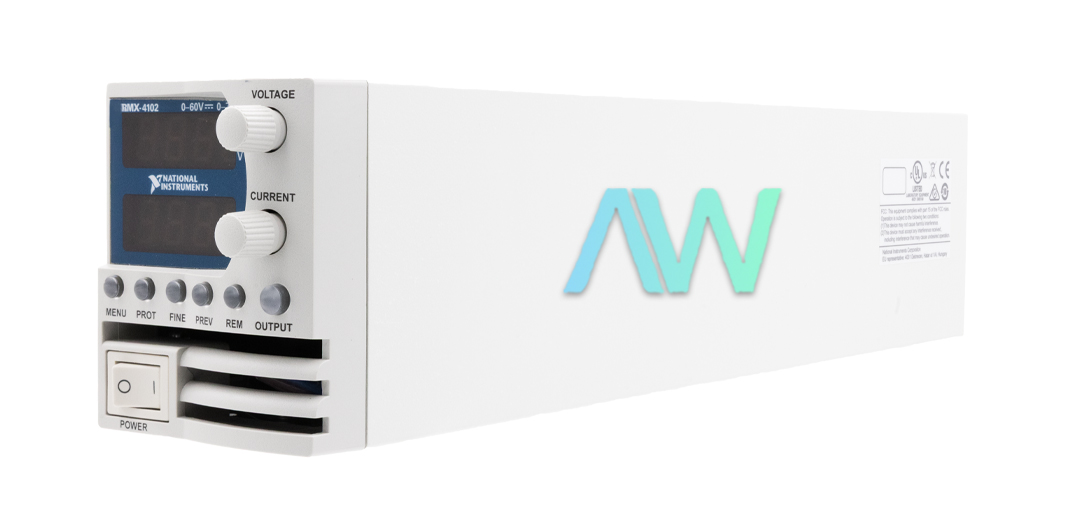

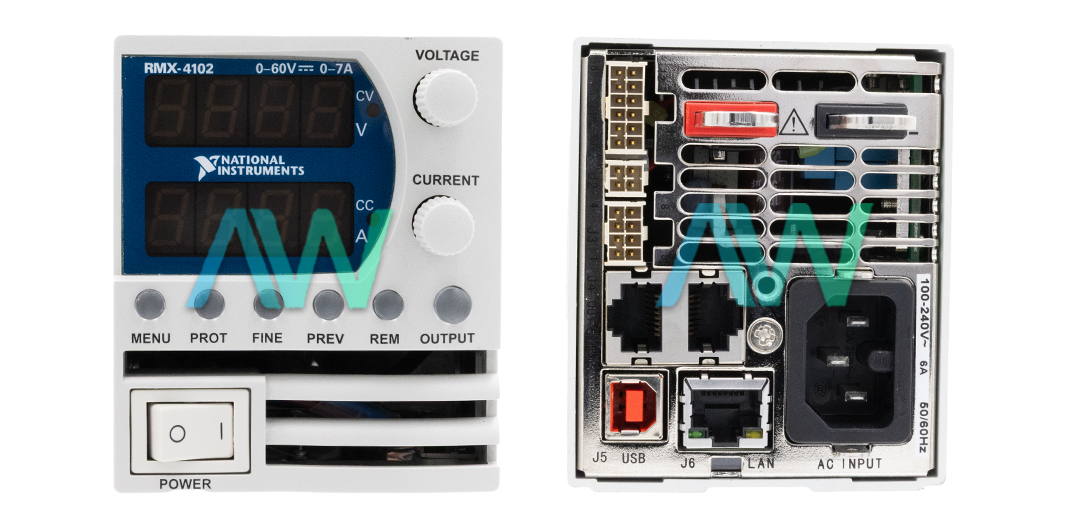

National Instruments RMX-4102 Programmable Power Supply Device
The RMX-4102 (Part Numbers: 786012-01, 786013-01, 786011-01, 786010-01) is a rackmount Programmable Power Supply Device designed by National Instruments. The RMX-4102 device comes from the RMX-410x Series of power supplies by National Instruments. The NI RMX-4102 is a switchable power supply. The RMX-4102 device can be operated on AC voltage and has several different power options. The NI RMX-4102 is available with an LED indicator that shows the continuously working current and voltage status.
The NI RMX-4102 Programmable Power Supply Device comes with built-in communication interfaces like RS-232/485, LAN, as well as USB. The RMX-4102 device is equipped with an embedded microprocessor controller. The NI RMX-4102 Programmable Power Supply Device is used to correct the power factor during the active position. The RMX-4102 is designed with 2U rack height and 1/6th rack width. The NI RMX-4102 device has digital encoders for current and voltage adjustments to different resolutions. The RMX-4102 renders an overall 432 W output power maximum. However, other versions of this device have 420 W or 400 W total output power.
The NI RMX-4102 Programmable Power Supply Device performs parallel operations on actively shared current. The NI RMX-4102 device delivers an analog output voltage range from 0 V up to 36 V. The RMX-4102 functions with 20 A maximum current. The NI RMX-4102 Programmable Power Supply Device is built without internal trimmers or potentiometers for software calibration. The RMX-4102 device can be used remotely for enabling/disabling options. The NI RMX-4102 is available with a cooling fan that can be controlled for low noise issues.
| Model | RMX-4102 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 786012-01, 786013-01, 786011-01, 786010-01 |
| Type | Programmable Power Supply Device |
| Total Output Power | 432 W, 420 W, or 400 W |
| Analog Output Voltage Range | 0 to 36 V, 0 to 60 V, 0 to 20 V, or 0 to 100 V |
| Maximum Current | 12 A, 7 A, 20 A, or 4 A |
| Dimensions | 3.3 in. x 2.8 in. x 13.8 in. |
| Rack Height | 2U |
| Rack Width | 1/6 |
| Weight | 4.2 lb. |
| RMX-4102 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
