Part Number SCC-LP01
Manufacturer/Brand National Instruments
Description: SCC-LP01, 2 DIFF Input Channels, ±10 V Input, ±5 V Output, Lowpass Filter Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCC-LP01 Lowpass Filter Module

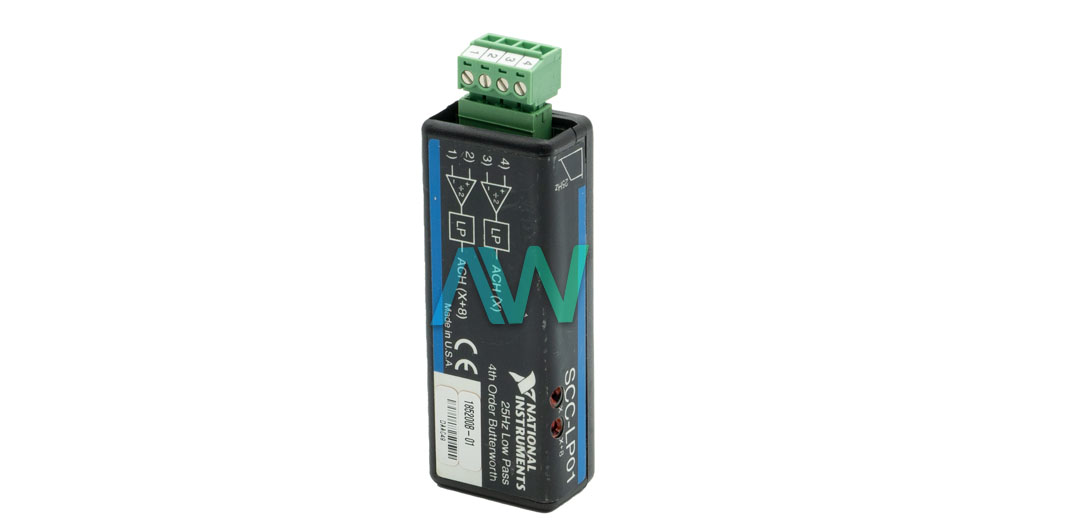

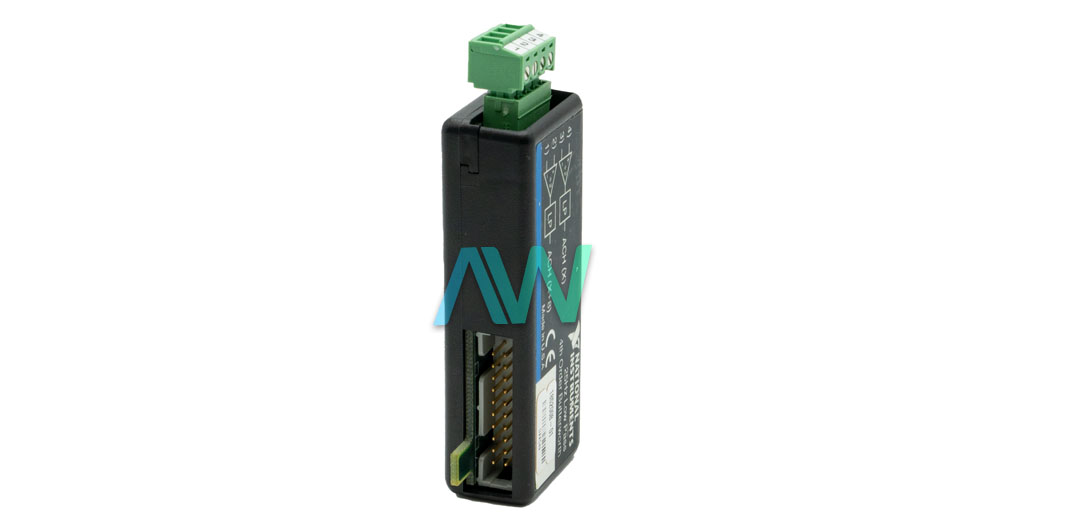

The SCC-LP01 (Part Number: 777459-07) is a Lowpass Filter Module created by National Instruments. The instrument comes with two built-in channels. These are differential inputs with the voltage range of ± 10 volts. Each channel of the National Instruments SCC-LP01 Lowpass Filter Module incorporates a fourth order Butterworth filter. This module offers cut-off frequency option capabilities for both channels. The instrument also offers cascading capabilities, which enables the user to fulfill various industrial requirements. These capabilities include an application that requires a low pass filtering mechanism, along with the ability to implement different SSC conditions. The NI device is equipped with one 20-pin right-angle male I/O connector and one 4-pin screw terminal.

The National Instruments SCC-LP01 Lowpass Filter Module includes a differential attenuator, which permits the user to attenuate each signal by a factor of two. The output of this amplifier is fed to a Butterworth filter circuit. This allows the user to get the desired output. The instrument offers the cutoff frequency of 25 Hertz. The output signal range of the device is ± 5 volts. The value of the gain is 0.5. It also incorporates built-in high impedance, with the value of 10 Giga-ohms and is connected in parallel with the capacitor of 10 Pico-farad. Additionally, the device has a maximum working voltage of ±15 V.

The NI SCC–LP01 Lowpass Filter Module delivers a roll-off rate of 80 dB per decade. The instrument has a low value for total harmonic distortion, which is -90 decibels at the cutoff frequency. The maximum analog power consumption of the module is 135 mW.

The National Instruments SCC–LP01 Lowpass Filter Module weighs around 37 grams, has a field wiring diameter of 28 to 16 AWG, with the physical dimensions: 8.89 x 2.92 x 1.85 cm. The NI device has recommended operating and storage temperature ranges of 0 to 50 °C and –20 to 70 °C respectively, and a non-condensing relative humidity range of 10 to 90%. It is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3111-1, UL 61010B-1, and CAN/CSA C22.2 No. 1010.1.

ModelSCC-LP01, 777459-07
ManufacturerNational Instruments
TypeLowpass Filter Module
Input Channels2 DIFF
Input Signal Range±10 V
Output Signal Range±5 V
I/O ConnectorsOne 20-pin right-angle male connector, one 4-pin screw terminal
WarrantyThree Year Warranty
SCC-LP01 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-LP01 Frequently Asked Questions



Question: What is the cutoff frequency of the SCC-LP01?



Answer: The SCC-LP01 has a 25 Hz cutoff frequency.



Question: What type of filter circuitry does the NI SCC-LP01 have?



Answer: The NI SCC-LP01 contains fourth-order Butterworth filter circuitry.



Question: Can the SCC LP01 function as a single-stage module?



Answer: Yes, the SCC LP01 can function as a single-stage module or as the first or the second stage of a dual-stage signal.
