SCXI-1100

Modular Systems > National Instruments > SCXI

Part Number SCXI-1100
Manufacturer/Brand National Instruments
Description SCXI-1100 32-Channel Voltage Input Module for SCXI
In Stock - Ships Today
In Stock | Ships Today

Speak to a sales representative for pricing & lead time:

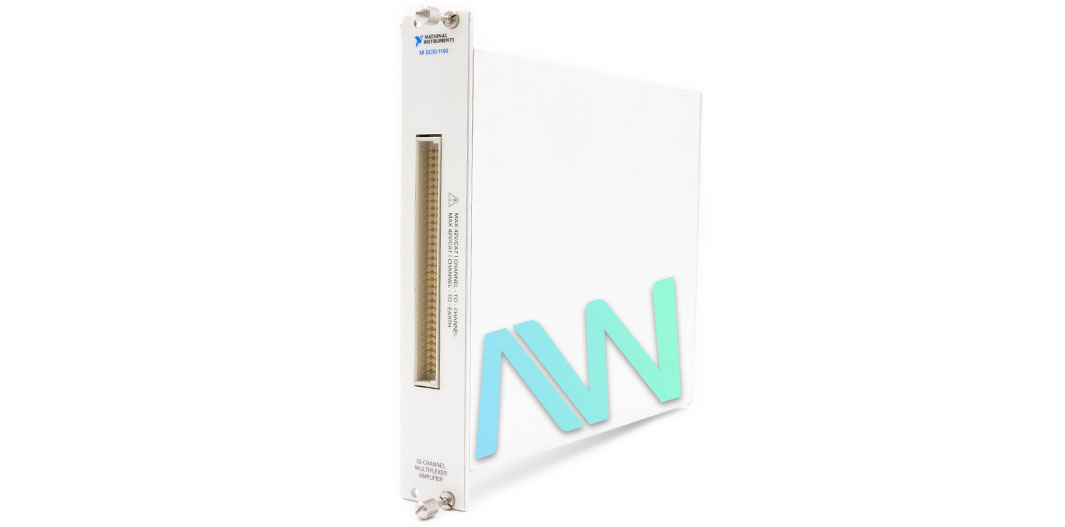

National Instruments SCXI-1100 Voltage Input Module

The National Instruments SCXI-1100 (Part Number: 776572-00) is a 32-Channel Voltage Input Module for SCXI. This module is created for affordable signal conditioning of millivolt, volt, and current signals. All channels are multiplexed with the option of several gain ranges with a jumper-selectable 4 Hz lowpass filter. The channels are multiplexed into one channel of a controlling DAQ instrument. The outcome is a higher number of channels for the DAQ system. An additional shielded terminal block has screw terminals for simple signal attachment to the SCXI 1100 module. Additionally, a temperature sensor for cold-junction compensation of thermocouples is included on the terminal block. The cold-junction reference can be multiplexed with the 32 channels on the NI SCXI-1100. The other option is for the cold-junction reference to be jumper connected to a different channel of the data acquisition board.

The NI SCXI-1100 module can be utilized with the NI MIO boards, including the PC-LPM-16, Lab-LC, Lab-PC+, Lab-PC, and Lab-NB. However, these boards can solely accomplish one-channel reads; they cannot scan the module.

The SCXI-1100 Voltage Input Module can be used with a variety of terminal blocks, including rack-mounted, thermocouple plugs, screw terminals, BNC connectors, DIN-rail mount, solder pins, and front-mounting terminal blocks. The SCXI 1100 can be used with the following National Instruments Terminal Blocks: the SCXI-1300, SCXI-1303, SCXI-1308, BNC-2095, TC-2095, TBX-1303, TBX-96, and SCXI-1310. A few of these terminal blocks have extra features. For example, a special feature of the SCXI-1310 is the affordable connector and shell assembly. Also, the BNC-2095 has prewired ground referencing. The TC-2095 has isothermal construction and switchable ground referencing. In addition, the SCXI-1303 has pluggable ground referencing.

SCXI-1100 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1100
ManufacturerNational Instruments
Part Number776572-00
TypeVoltage Input Module
Channels32 differential
Input CouplingDC
Maximum Working Voltage±10 V
I/O ConnectorsFront: 96-pin male DIN C front connector
Back: 50-pin male ribbon cable rear connector
Dimensions1.2 by 6.8 by 8.0 in.
WarrantyOne Year Warranty
SCXI-1100 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1100 Frequently Asked Questions



Question: Which driver software can be used with the NI SCXI-1100?



Answer: NI-DAQ 7 driver software can be used with the NI SCXI-1100.



Question: What is the difference between later revisions of the SCXI-1100?



Answer: Revisions C and later of the SCXI-1100 have 10 jumpers. There are two jumpers for communication between the data acquisition board and the SCXIbus backplane/Slot 0 for Revision C, while Revision A and B of the SCXI-1100 have three jumpers dedicated for this purpose. There is an additional Jumper W11 on Revision A and B Modules.



Question: What are the filters on the NI SCXI 1100?



Answer: The filters on the NI SCXI 1100 are 4 Hz, 10 kHz, and full bandwidth (jumper selectable).



Question: Which types of connectors does the SCXI 1100 have?



Answer: The SCXI 1100 has a 50-pin male ribbon-cable back connector, a 96-pin DIN C front connector, and there is a 70-screw terminal adapter available.

SCXI-1100 Technical Specifications:


Manufacturer:National Instruments
Model:SCXI-1100
Part Number:776572-00
Series:SCXI Series
Type:Voltage Input Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
