National Instruments SCXI-1143 Lowpass Filter Input Module

The NI SCXI-1143 (Part Number: 776572-43) Lowpass Filter Input Module has an 8th-order Butterworth filter response, eight channels, ±30 V overvoltage protection when powered on, and 333 kS/s maximum sampling rate. This module can be used for antialiasing applications and is suggested for maximum flatness in the passband. NI-DAQ 7 driver software should be used with this module. Other recommended software includes: VI Logger, LabVIEW, Measurement Studio, and LabWindows/CVI.

The cutoff frequency of the Butterworth filter on the SCXI-1143 can be programmed for a range of frequencies, from 10 Hz-25 kHz. The specific frequencies available are fc = 100 kHz/n, where n = 4, 5, …,10,000. The user additionally has the option to control the cutoff frequency with an external clock. The eight channels all function with an identical cutoff frequency. Although, the user can separately bypass the eight filters in a module under software control to keep the channel unfiltered.

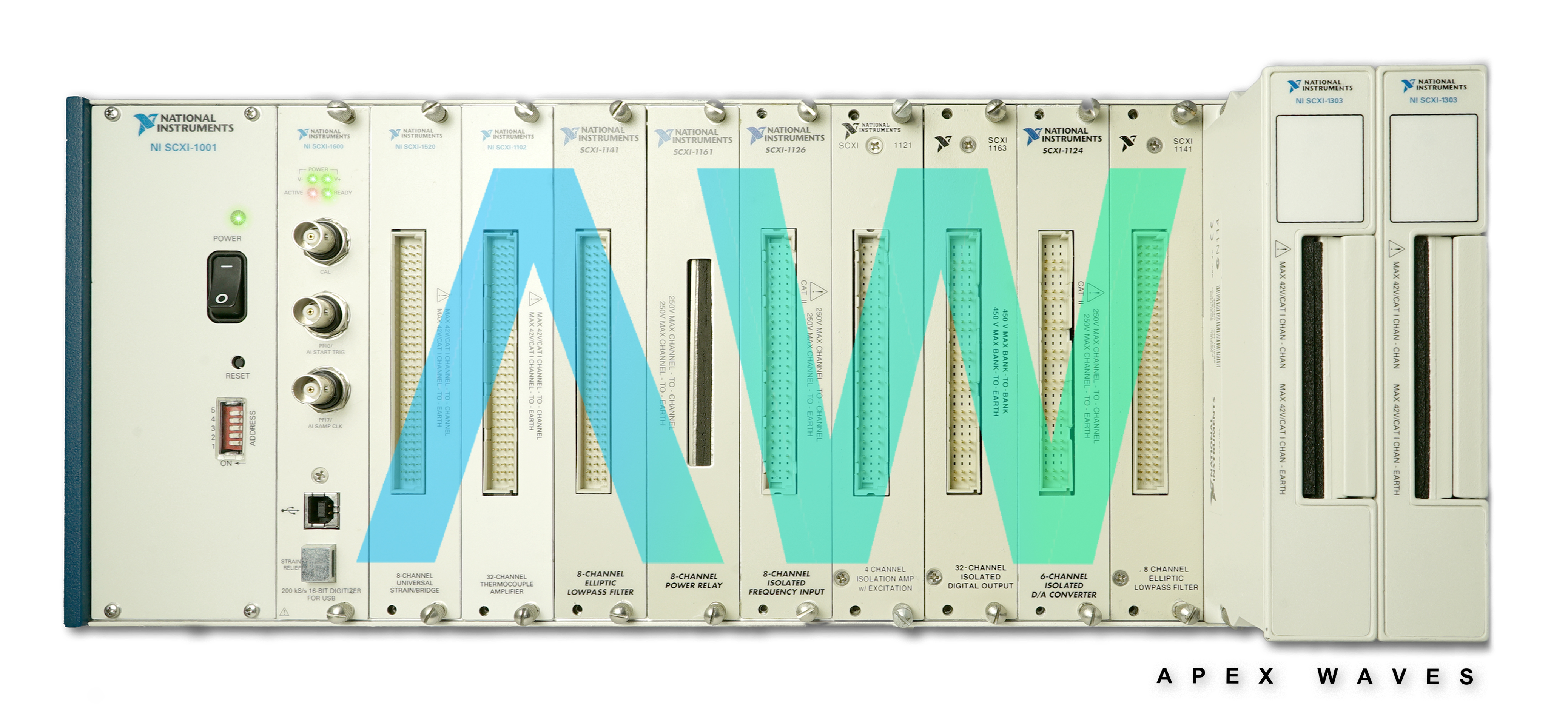

The following items are required to operate the NI SCXI 1143 module: an SCXI-1304 or SCXI-1305 terminal block, an SCXI chassis or PXI/SCXI combination chassis, an E/M Series DAQ instrument or an SCXI-1600, a computer (if utilizing an SCXI chassis), cabling, a cable adapter, and sensors as needed for the user’s application. The user will also need NI-DAQ and one of the software types mentioned previously, as well as guides/user manuals to each of the instruments being used.

SCXI-1143 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1143
ManufacturerNational Instruments
Part Number776572-43
TypeLowpass Filter Input Module
Lowpass Filter TypeButterworth
Frequency Range10 Hz to 25 kHz
Channels8 differential
Dimensions1.2 by 6.8 by 8.0 in.
Weight22.0 oz.
WarrantyOne Year Warranty
SCXI-1143 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1143 Frequently Asked Questions



Question: What type of filter is used on the SCXI-1143?



Answer: The SCXI-1143 has an 8th-order Butterworth filter with a flat passband, ideal for providing uniform signal amplitude throughout.



Question: Can you program the cutoff frequency of the filters on the SCXI 1143?



Answer: Yes, you can program the cutoff frequency of the filters on the SCXI 1143 for a range of frequencies, from 10 Hz to 25 kHz. You can also cut off the frequency with an external clock.



Question: How are the calibration constants stored for the NI SCXI-1143?



Answer: The NI SCXI-1143 has an onboard EEPROM that stores the calibration constants for each channel and each input range.
