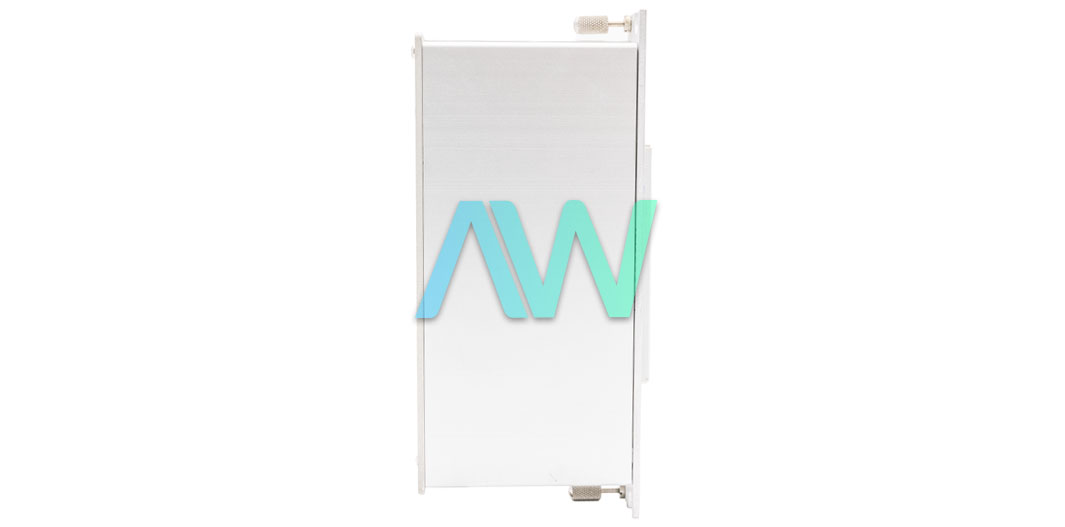

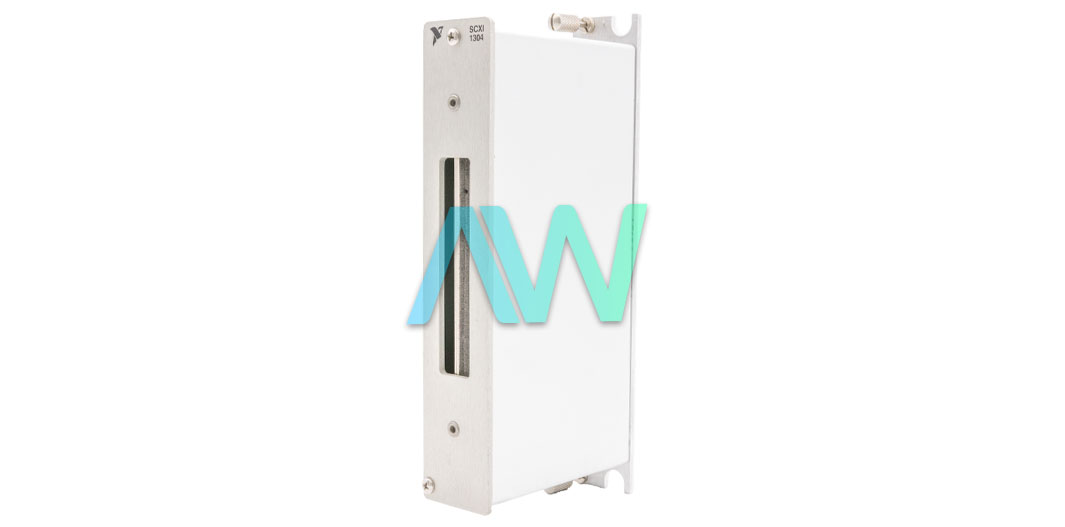

SCXI-1304 National Instruments Terminal Block | Apex Waves | Image SCXI-1304 National Instruments Terminal Block | Apex Waves | ImageSCXI-1304SCXI-1304 | Legacy, Refurbished and New Surplus
SCXI-1304 National Instruments Terminal Block | Apex Waves | Image
SCXI-1304 National Instruments Terminal Block | Apex Waves | Image
SCXI-1304 New
SCXI-1304 | Legacy, Refurbished and New Surplus

SCXI-1304

4.7/5 | 18 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1304
Manufacturer/Brand National Instruments
Description: SCXI-1304, 32-Channel, AC/DC Coupling Terminal Block
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments SCXI-1304 AC/DC Coupling Terminal Block

The SCXI-1304 (Part Number: 777687-04) is a Terminal Block from the SCXI Series by National Instruments. This AC/DC Coupling Terminal Block can be used with the SCXI-1140 SCXI-1141/1142/1143, SCXI-1120/D, SCXI-1125, and SCXI-1125 modules. Other than AC/DC Coupling, this model also has BNC connectors and signal ground referencing which can be configured for each channel. There are 22 screw terminals on the NI SCXI-1304 for effortless signal connection. The user can utilize eight pairs of screw terminals for signal connections to the eight module inputs and a single pair to link to the module analog ground. The other four screw terminals give access to the digital ground and digital signals of the module. For the SCXI-1140, these signals are HOLDTRIG. However, for the SCXI-1141/1142/1143, these signals are OUTCLK and EXTCLK.

When the National Instruments SCXI 1304 Terminal Block is used with the SCXI-1120/D, SCXI-1125, or SCXI-1126, the channel isolation specification is not valid if the bias resistors are in the engaged setting. The user must keep the resistor switches in the open or G grounded setting, so the isolation remains valid.

The NI SCXI-1304 has the capability for every channel to be configured for AC or DC coupling via the switch settings. Every channel needs two switches in identical positions for the coupling circuitry to work accurately. For AC coupling, the user must designate both switches to the AC setting, which puts single-pole highpass filters in the paths of the positive and negative channel inputs. On the other hand, for DC coupling, the user must set both switches to the DC position. This eliminates the filters from the signal paths and links the screw terminals straight to the module inputs.

SCXI-1304 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1304
Part Number777687-04
ManufacturerNational Instruments
TypeAC/DC Coupling Terminal Block
Screw Terminals22
CouplingAC/DC
Analog Input CouplingAC (1-pole highpass filter)
Analog Input Channels8
WarrantyOne Year Warranty
SCXI-1304 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1304 Frequently Asked Questions



Question: What other devices can the SCXI 1304 connect to?



Answer: The SCXI 1304 can connect to the SCXI-1140, SCXI-1141/1142/1143, SCXI-1120/D, SCXI-1125, or SCXI-1126 input connector.



Question: Can you configure the SCXI-1304 to provide AC coupling of a signal?



Answer: Yes, you can configure the SCXI-1304 to provide AC or DC coupling of a signal to the SCXI module.



Question: Can the NI SCXI-1304 ground reference a floating signal with a bias resistor?



Answer: Yes, each channel of the NI SCXI-1304 can ground reference a floating signal with a bias resistor.



Question: Can you use the SCXI-1304 terminal block with the SCXI-1120/D?



Answer: You can use the SCXI-1304 terminal block with the SCXI-1120/D module, as well as the SCXI-1125 and SCXI-1126. Just be aware that the channel isolation specification is invalid if the bias resistors are in the engaged position. You must leave the resistor switches in the open or grounded position to keep the isolation valid.
