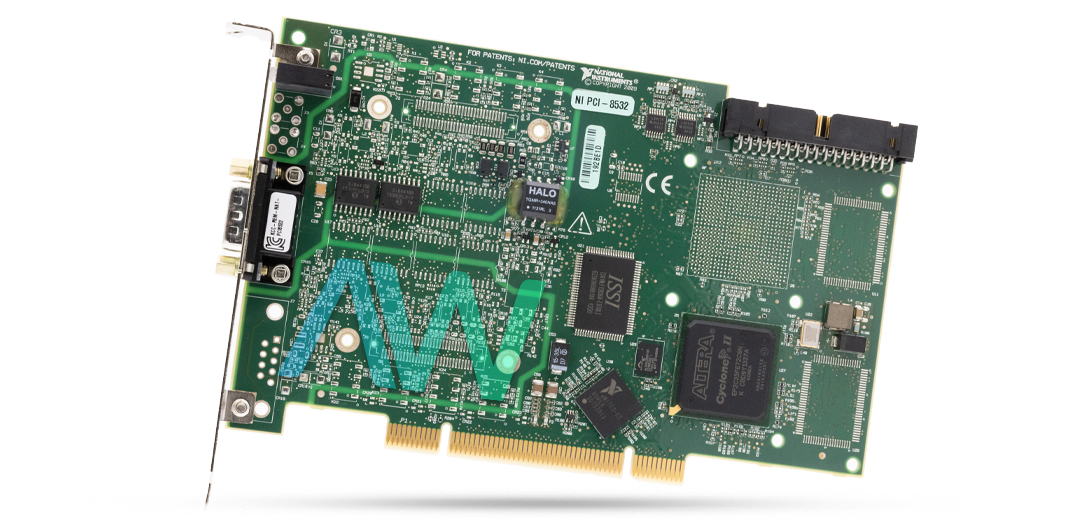

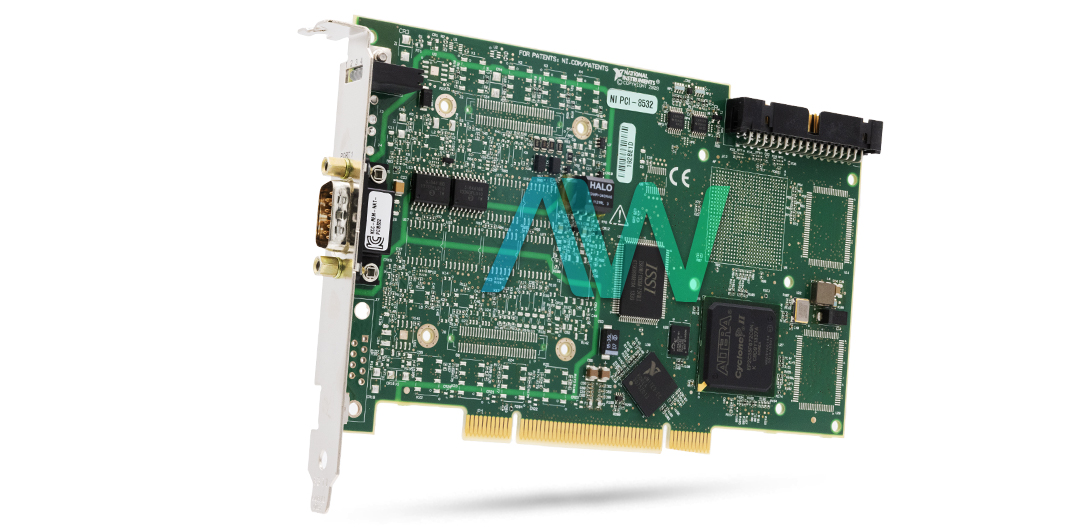

National Instruments PCI-8532 DeviceNet Interface Device

The PCI‑8532 (Part number: 781062-01) is a high-speed DeviceNet Interface Device manufactured by National Instruments. The NI PCI-8532 device is featured with master (scanner) abilities, which helps provide complete control to DeviceNet networks. This model has implementation for the controllers that are used in the industry. The NI PCI-8532 DeviceNet is based on the physical layer and controller area network. This device increases inter-connectivity and strength by stipulating many parameters. These parameters include the connectors and baud rates. It also depends on the required cable’s length.

The National Instruments PCI-8532 can be operated with LabVIEW RT and Windows operating systems. The software driver delivers advanced API and efficient control through LabVIEW RT. This is the major difference between the NI PCI-8532 and older devices. With the help of LabVIEW, the user can monitor slave devices. The devices are monitored over the network. It allows the devices to approach their physical channels. The user can also adjust the settings by manipulating I/O variables. It also offers the flexibility to write and read data to slave devices with the help of the drag-and-drop feature for I/O variables. The NI PCI-8532 can auto synchronize time to the controller of the scan engine.

The NI PCI-8532 is featured with a new function block for messages. This feature assists the user to direct and accept requests. This feature arranges and programs the DeviceNet master interface. It also enables the user to manage a vast system of DeviceNet slave devices. The NI PCI-8532 is used in the embedded control system and PC-based control system. This device is also applicable for a PC-based human-machine interface.

ModelPCI-8532
ManufacturerNational Instruments
Part Number781062-01
TypeDeviceNet Interface Device
Physical LayerCAN
TransceiverNXP PCA82C251
Interface TypeISO 11898
Maximum Baud Rate1 Mbps
Minimum Baud Rate10 kbps
I/O Connector9-pin male D-SUB
CAN_H, CAN_L Bus Lines–36 to +36 VDC
Integrated Memory256 MB SRAM
16 Mbit Flash
92 Kbit FPGA Block Memory
Power Requirements10 to 30 VDC-- 40 mA typical, 100 mA maximum
Dimensions4.2 in. x 6.9 in.
Software DriverNI-Industrial Communications for DeviceNet
WarrantyOne Year Warranty
PCI-8532 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
