PCIe-8430-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCIe-8430-2
Manufacturer/Brand National Instruments
Description PCIe-8430/2 2-Port, RS-232 Serial Interface Device
In Stock | Ships 2-4 Weeks

Speak to a sales representative for pricing & lead time:

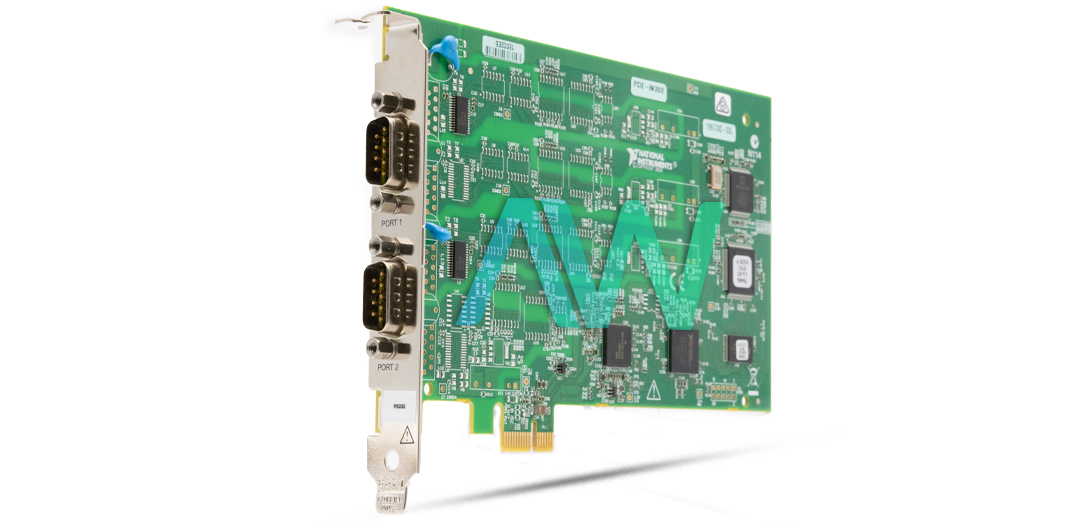

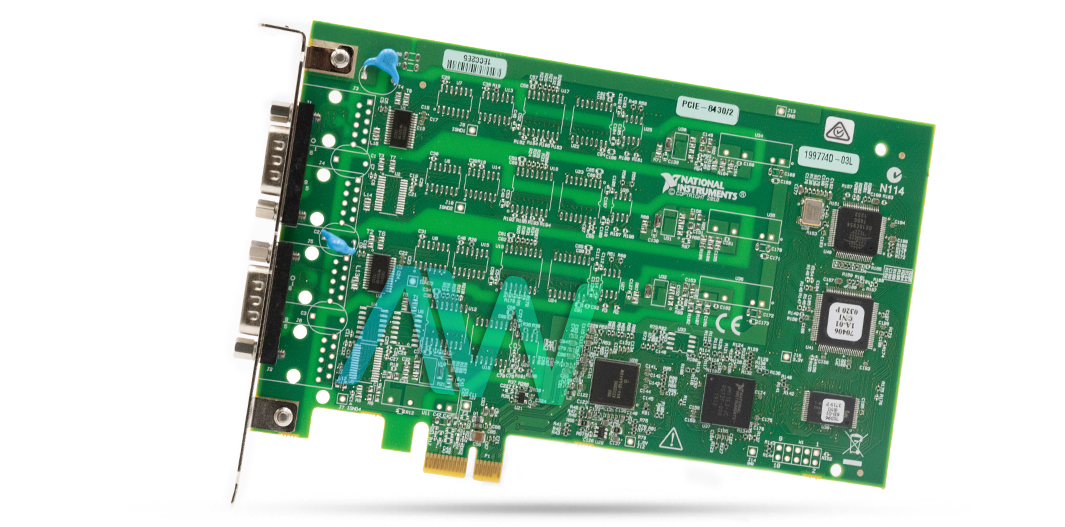

National Instruments PCIe-8430/2 Serial Interface Device

The National Instruments PCIe-8430/2 (Part number: 782122-01) is a 2-Port, PCI Express based Serial Interface Device that supports RS232 serial communications. This model is the perfect answer for efficient communications between a PCIe enabled PC and different RS232 devices. The National Instruments PCIe-8430/2 device has some powerful features, such as DMA transfers, multiprocessor support, and multithreading. The DMA transfer scheme allows the I/O device to transmit data to or from the main memory, while keeping the CPU out of the loop. This configuration brings much faster memory operations and is controlled by a chip called a DMA controller or DMAC. The ability to work in multi-processor or multithreading environments allows the NI PCIe-8430/2 to have its resources used at an optimum level.

This RS-232 Serial Interface Device requires one PCI Express slot, which the device turns into two RS-232 (or DB-9) serial connections since it comes with two DB-9 connectors. The NI PCIe-8430/2 RS-232 Serial Interface Device draws 325 mA of current (typical) or 500 mA (maximum) at +5 VDC.  This model offers from 2 baud minimum to 1000.0 kbaud maximum baud rate. This device comes with a 128 byte FIFO as well. This device supports the following types of settings: adjustable FIFO settings, Get Interface, RS-232 Transceiver State, RTS/CTS, DTR/DSR, and Xon/Xoff settings. The National Instruments PCIe-8430/2 device is offered in the standard PCIe form factor. This RS-232 Serial Interface Device weighs around 88 g and has 10.67 × 14.22 cm physical dimensions.

ModelPCIe-8430/2
ManufacturerNational Instruments
Part Number782122-01
TypeSerial Interface Device
StandardRS232
Number of Ports2
IsolatedNo
Maximum Baud Rate1000 kbits/s (1 Mbps)
Connector Type68-pin VHDCI
FIFO Size128 Bytes
Power Requirements+3.3 VDC, +12 VDC - 200 mA, 190 mA
Dimensions4.38 × 6.9 in.
Weight0.19 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCIe-8430/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-8430/2 Frequently Asked Questions



Question: What type of devices does the PCIe-8430/2 communicate with?



Answer: The PCIe‑8430/2 is a high-performance interface designed for high-speed communication with RS232 devices.



Question: Is the PCIe-8430/2 compatible with programs that use serial communications?



Answer: Yes, the NI serial interfaces appear as standard COM ports for compatibility with programs that use serial communications.



Question: Does the NI PCIe-8430/2 support Real Time?



Answer: The NI PCIe-8430/2 does support Real Time.

PCIe-8430-2 Technical Specifications:


Manufacturer:National Instruments
Model:PCIe-8430/2
Part Number:782122-01
Type:Serial Interface Device
Repair Evaluation:$150
