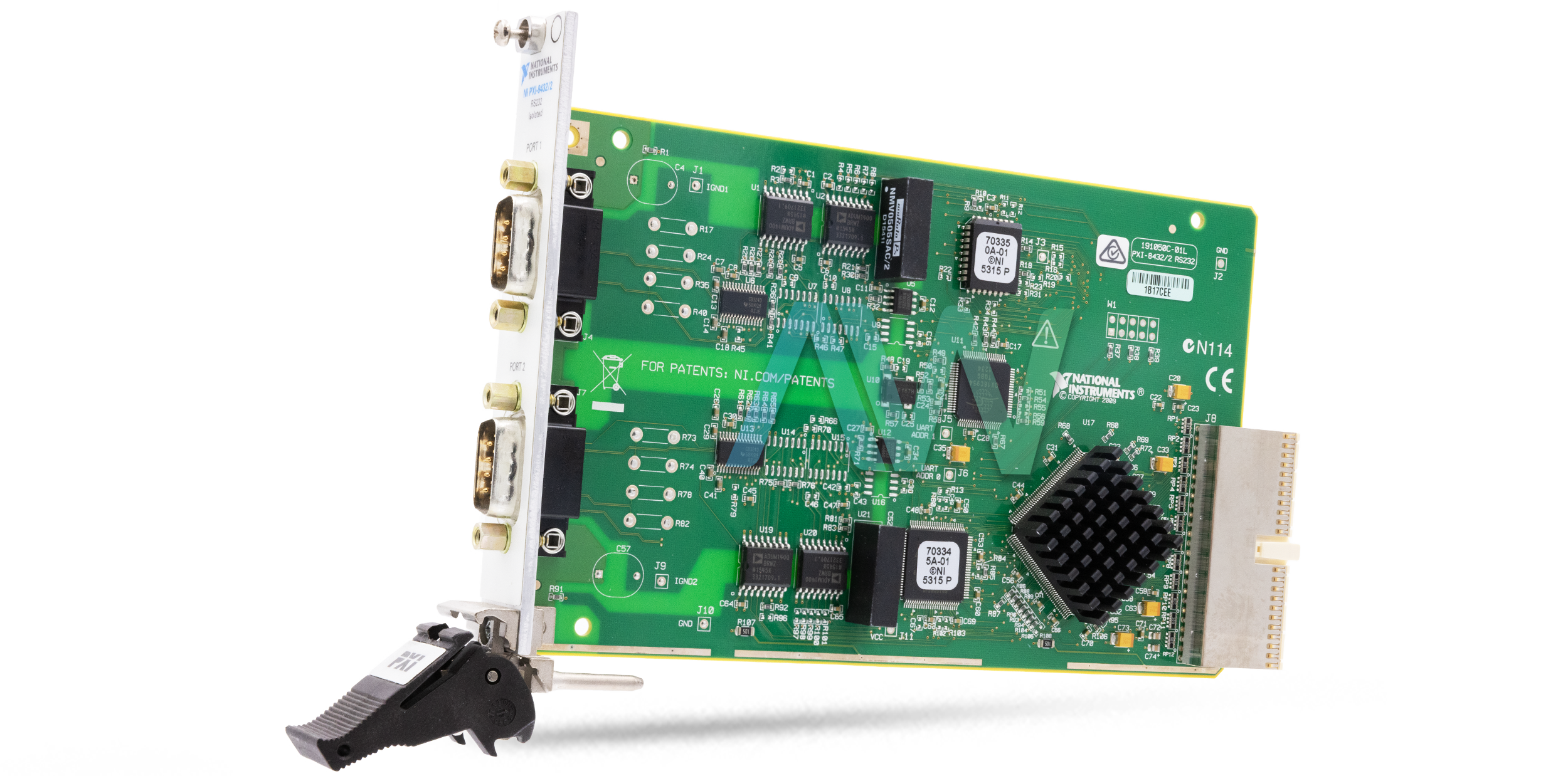

PXI-8432/2 National Instruments RS-232 Interface | Apex Waves | Image PXI-8432/2 National Instruments RS-232 Interface | Apex Waves - Wiring Diagram Image

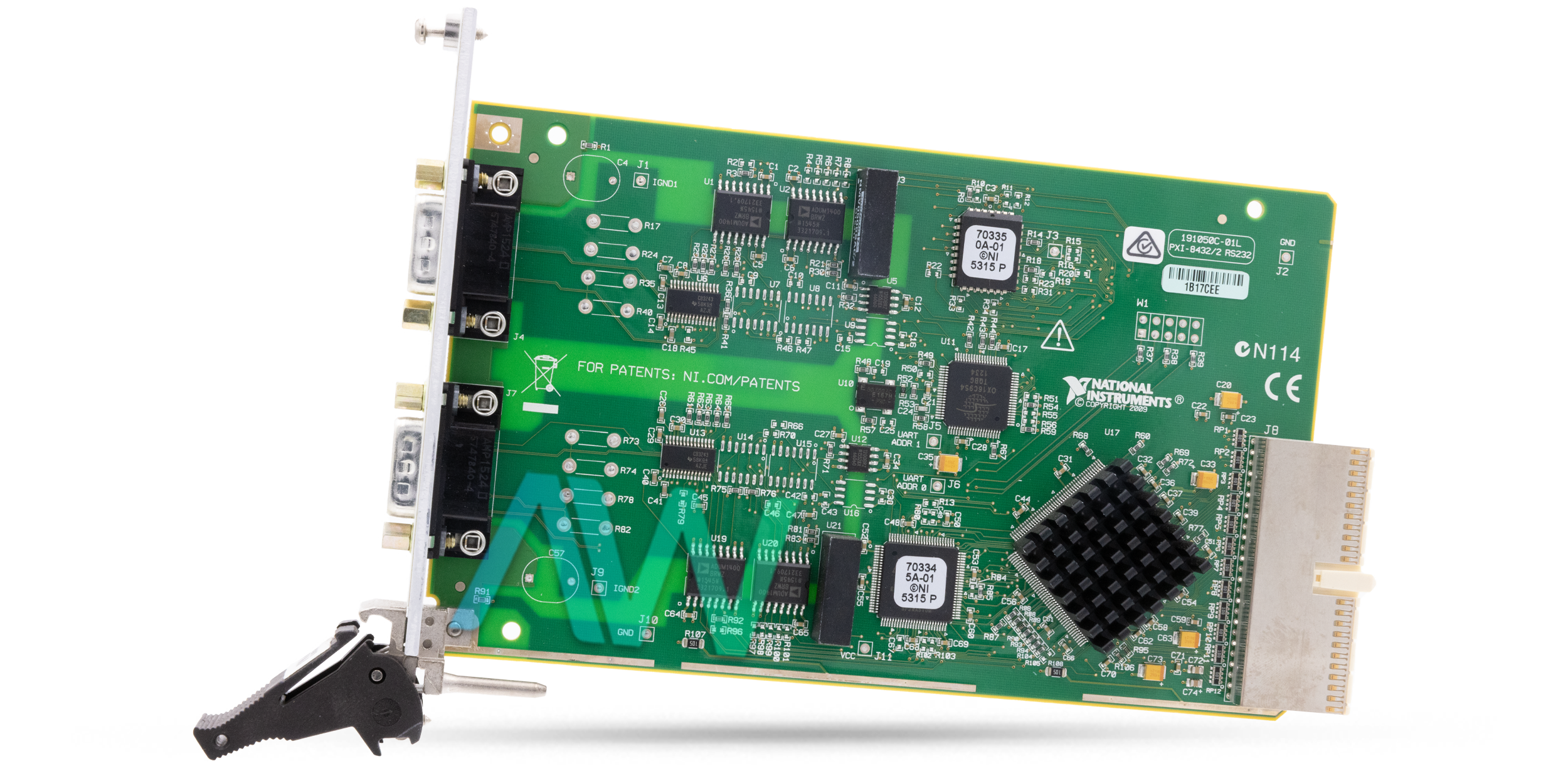

PXI-8432/2 National Instruments RS-232 Interface | Apex Waves | Image
PXI-8432/2 National Instruments RS-232 Interface | Apex Waves - Wiring Diagram Image
Rate the PXI-8432-2
Rated 4.5/5 based on 16 ratings.

PXI-8432-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXI-8432-2
Manufacturer/Brand National Instruments
Description PXI-8432/2 2-Port RS-232 Interface
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:


National Instruments PXI-8432/2 RS-232 Interface

The 2-Port, Isolated, RS232 Serial Interface Module PXI-8432/2 (Part Number: 779744-01) is a superior interface for rapid port-to-port isolated communication with RS-232 gadgets. It has elite, multi-threaded DMA transfers and multiprocessor support. NI Serial Interfaces additionally appear as standard COM ports for compatibility with programs that use serial communications.

NI PXI-8432/2 high-execution serial interfaces deliver many highlights, such as adaptable baud rates up to 2 Mb/s, and hyper threading and multiprocessor similarity. With the adaptable baud rate abilities of the NI PXI-8432/2 interface, the user can communicate with gadgets that work with nonstandard baud rates running from 57 b/w up to 2 Mb/s inside 1 percent and standard baud rates inside 0.01 percent. With multiprocessor and hyper threading similarity, the user can additionally take advantage of the most recent PC innovation for higher speeds and enhanced productivity. The new programming driver included with the gadget offers better asset designation and DMA access for higher throughput with CPU use. Moreover, the PXI-8432/2 interface incorporates new memory-mapping highlights that can be used to associate with more serial gadgets without resource conflicts. The NI PXI-8432/2 interface is a universal board, completely compatible with both 5 and 3.3 V signaling conditions so the board can work in an extensive variety of PCs.

The National Instruments USB-232 transforms the USB port into an asynchronous serial port for communication with serial gadgets. The NI USB-232 devices are accessible in either 1, 2, or 4-port versions, utilizing standard RS232, RS422, or RS485 communications.

ModelPXI-8432/2
Part Number779743-01
ManufacturerNational Instruments
TypePXI Serial Interface Module
Ports2
Supported Serial ProtocolRS-232
Isolation TypePort-PC Isolation, Port-Port Isolation
Dimensions6.37 x 3.94 in.
Weight125 g.
WarrantyOne Year Warranty
PXI-8432/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8432/2 Frequently Asked Questions



Question: What type of I/O connector is on the PXI-8432/2?



Answer: The PXI-8432/2 has two DB-9 male I/O connectors.



Question: What is the maximum baud rate for the NI PXI-8432/2?



Answer: The maximum baud rate for the NI PXI-8432/2 is 1 Mbps.



Question: What is the continuous port-to-port isolation voltage for the PXI-8432/2?



Answer: The continuous port-to-port isolation voltage for the PXI-8432/2 is 60 VDC (CAT I).



Question: What is the power requirement from the PXI channel for the NI PXI-8432/2?



Answer: The power requirement from the PXI channel for the NI PXI-8432/2 is 725 mA typical, 1 A maximum at +5 VDC.

PXI-8432-2 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-8432/2 (779743-01)
Type:RS-232 Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PXI-8432-2

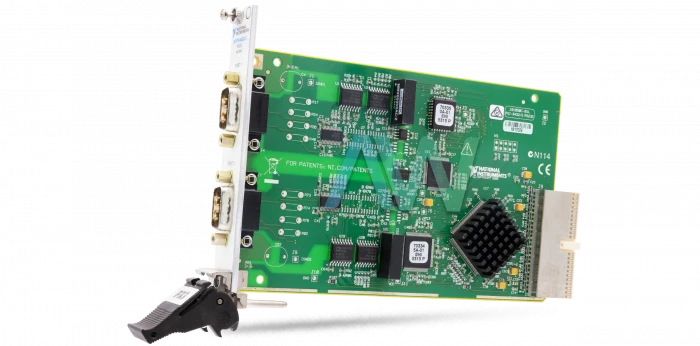

PXI-8432/2 National Instruments RS-232 Interface | Apex Waves | Image

Main Image

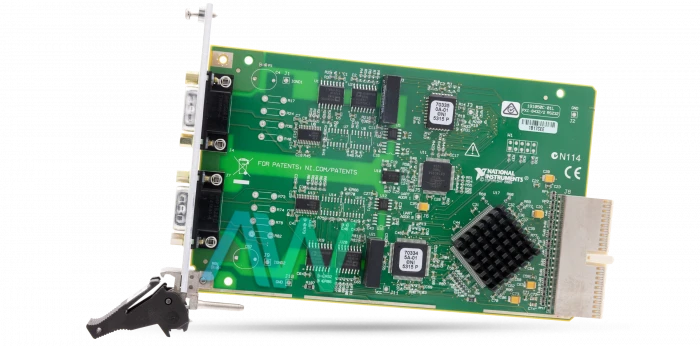

PXI-8432/2 National Instruments RS-232 Interface | Apex Waves | Image
