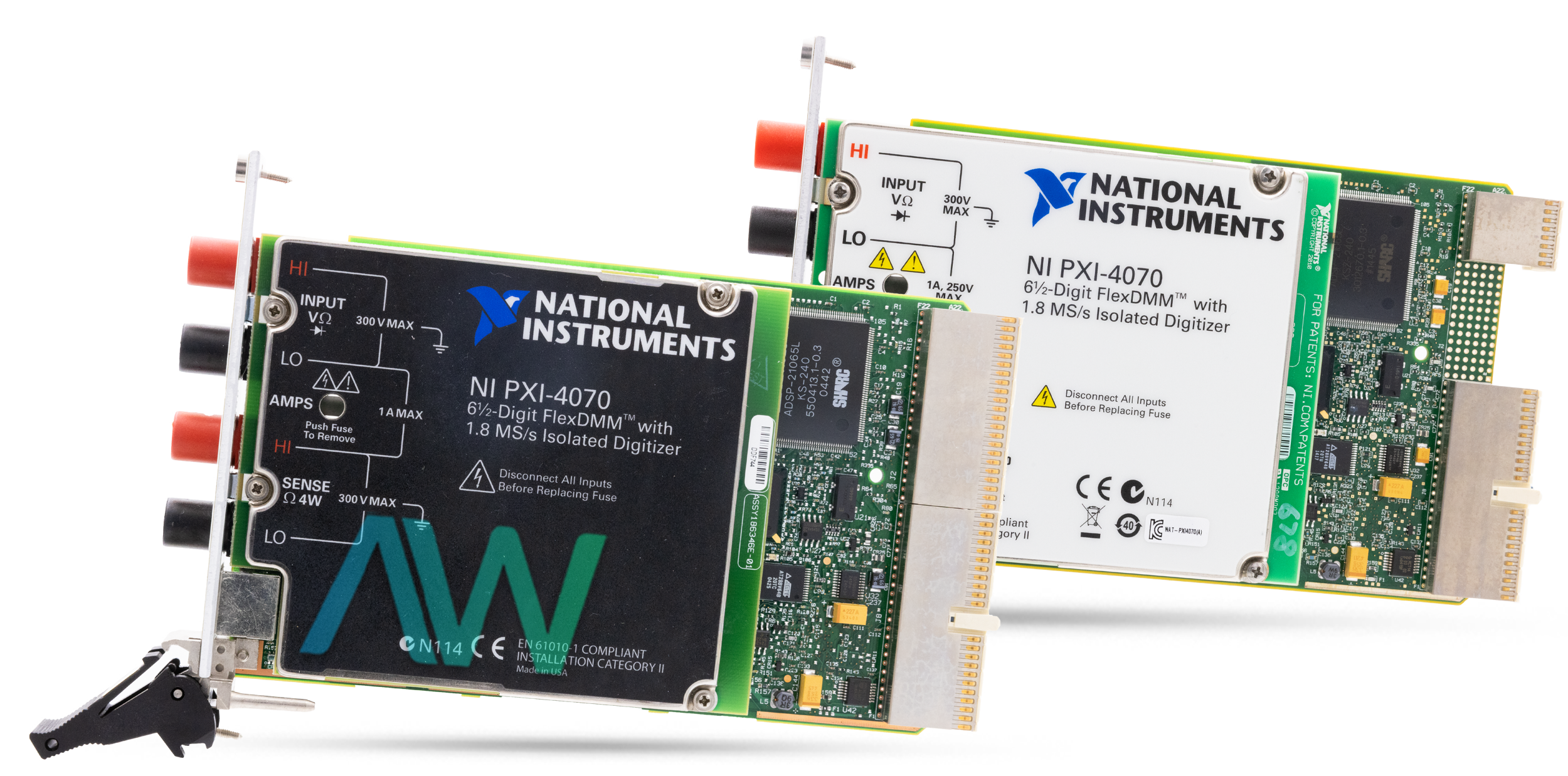

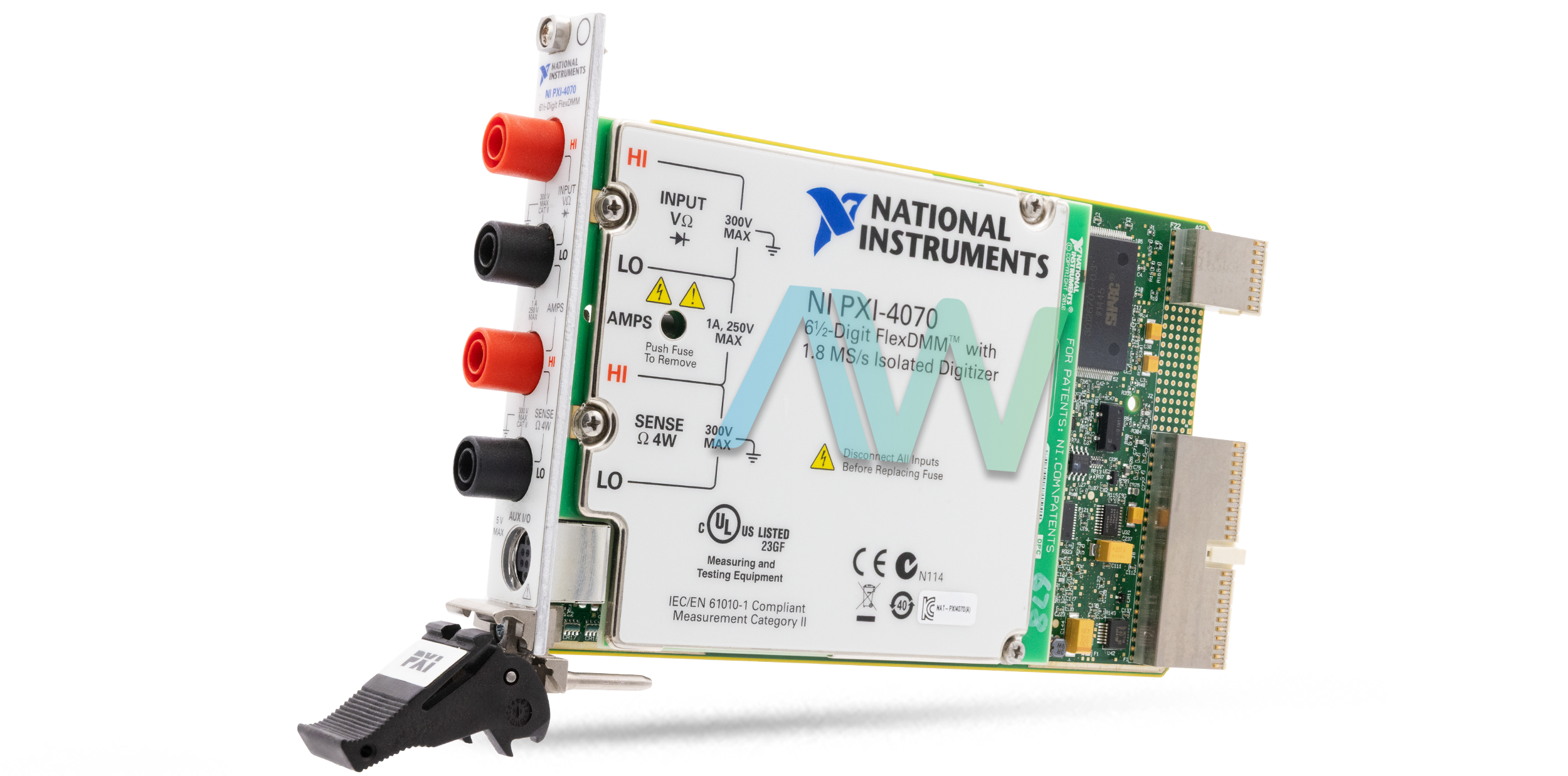

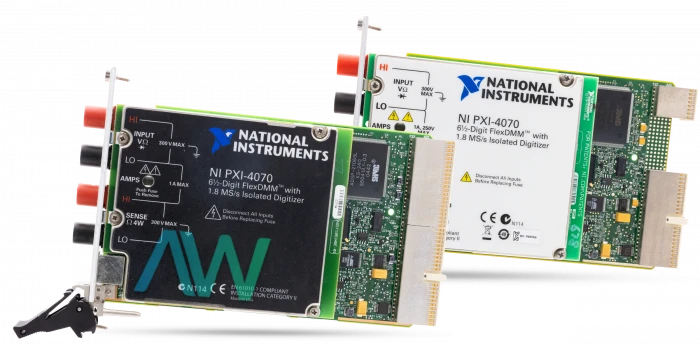

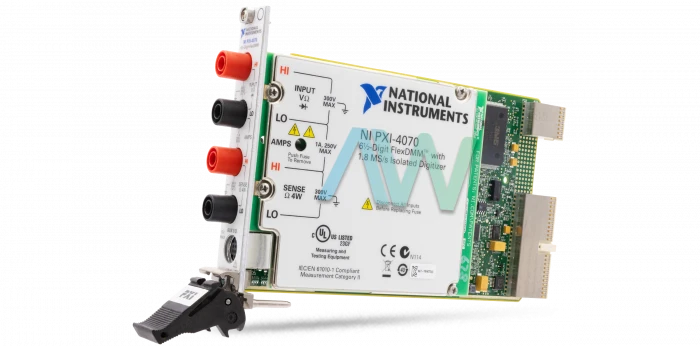

PXI-4070 National Instruments Digital Multimeter | Apex Waves | Image PXI-4070 National Instruments Digital Multimeter | Apex Waves | ImagePXI-4070PXI-4070 | Legacy, Refurbished and New Surplus
PXI-4070 National Instruments Digital Multimeter | Apex Waves | Image
PXI-4070 National Instruments Digital Multimeter | Apex Waves | Image
PXI-4070 New
PXI-4070 | Legacy, Refurbished and New Surplus

PXI-4070

4.8/5 | 20 ratings

Meters > National Instruments > NI-407x Series

Part Number PXI-4070
Manufacturer/Brand National Instruments
Description: PXI-4070, 6.5 Digit, PXI Digital Multimeter
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXI-4070 PXI Digital Multimeter

The NI PXI-4070 (Part Number: 778274-01) 6.5 Digit FlexDMM has high throughput rates, while keeping up precision and stable estimation. With National Instruments restrictive FlexDMM innovation, this DMM gives a completely separated, high-voltage digitizer capable of acquiring waveforms at sampling rates up to 1.8 MS/s at all voltage and current ratings. Utilizing the analysis capabilities available in NI LabVIEW programming, the user can dissect these waveforms in both the time and frequency spaces. The NI PXI-4070 DMM has superior speed, precision, and functionality, making it an excellent fit for use in computerized tests on both the production floor and in R&D applications.

The PXI 4070 National Instruments can be used with NI-DMM, which is an IVI-consistent driver that accesses the entire functionality of the DMM through a simple-to-utilize application programming interface (API) and is compatible with languages like C/C++, .NET, Visual Basic, LabVIEW, and LabWindows/CVI. This unit also offers a 1.8 MS/s Flexible-Resolution Isolated Digitizer and the possibility to vary the resolution of the FlexDMM from 10 to 23 bits by changing the sampling rate. In addition, the Digital Multimeter includes a one of a kind multi-instrument functionality that limits general framework cost by eradicating the need to buy a different data acquisition device, signal conditioning, fixturing, etc.

The device is coupled with both DC and AC systems. Its DC system has the following features: a range/function change of 100/s, an auto range time of 50 ms, a trigger latency of 2 μs, a maximum trigger rate of 6kHz. Its AC system has the following features: range or function change of 10/s, an auto range time of 250 ms, a trigger latency of μs, and a maximum trigger rate of 1 kHz.

The National Instruments PXI-4070 additionally has a built-in self-calibration feature. The self-calibration or Self-Cal feature enhances preciseness by eradicating errors from temperature changes and long-term drift. Self-Cal guarantees preciseness over the complete 0 to 55 degrees Celsius operating temperature range. In addition, an external calibration every two years helps decrease downtime and maintenance expenses.

PXI-4070 Maintenance Status has been announced by National Instruments, but the Digital Multimeter will still be available for purchase and repairs by Apex Waves.

The PXI-4070 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-4070 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-4070 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-4070!

ModelPXI-4070
ManufacturerNational Instruments
Part Number778274-01
TypePXI Digital Multimeter
Maximum Sample Rate1.8 MS/s
Digits of Resolution6.5
DC Voltage Range-300 V to 300 V
Dimensions0.8 in. × 5.1 in. × 8.5 in.
Weight12 oz.
WarrantyOne Year Warranty
PXI-4070 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-4070 Frequently Asked Questions



Question: What is the NI PXI-4070 driver?



Answer: The NI PXI-4070 driver is NI-DMM, DMM Express VI for LabVIEW, and DMM Soft Panel.



Question: How long is the suggested warm-up time for the PXI 4070 National Instruments?



Answer: The suggested warm-up time for the PXI 4070 National Instruments is one hour.



Question: What is the power consumption of the NI PXI-4070?



Answer: The power consumption of the NI PXI-4070 is <12 W from the PXI backplane.



Question: How long is the calibration interval for the National Instruments NI PXI-4070?



Answer: The calibration interval for the National Instruments NI PXI-4070 is two years.
