ISC-1764
Modular Systems > National Instruments > Smart Cameras
| Description: | ISC-1764, 533 MHz PowerPC and720 MHz DSP, Smart Camera |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

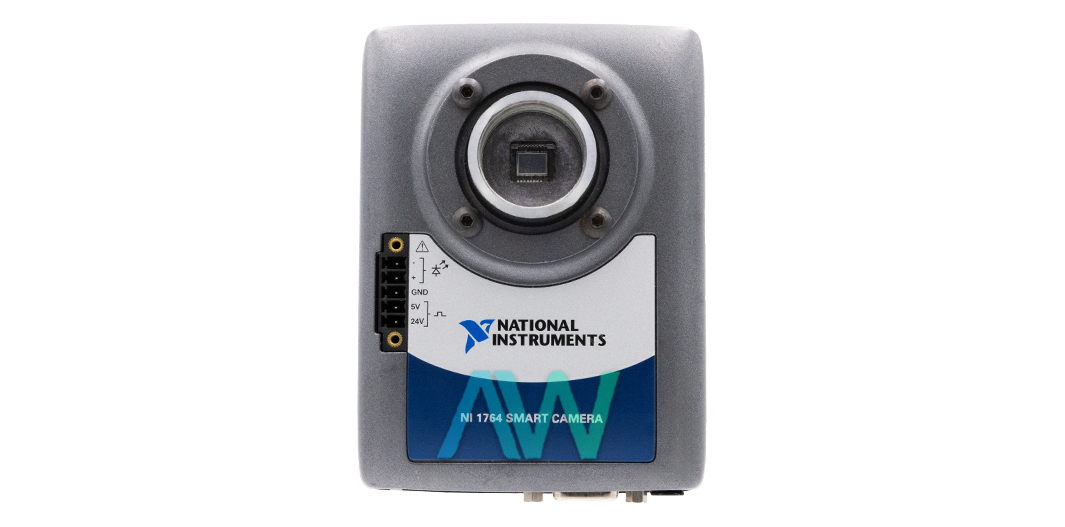

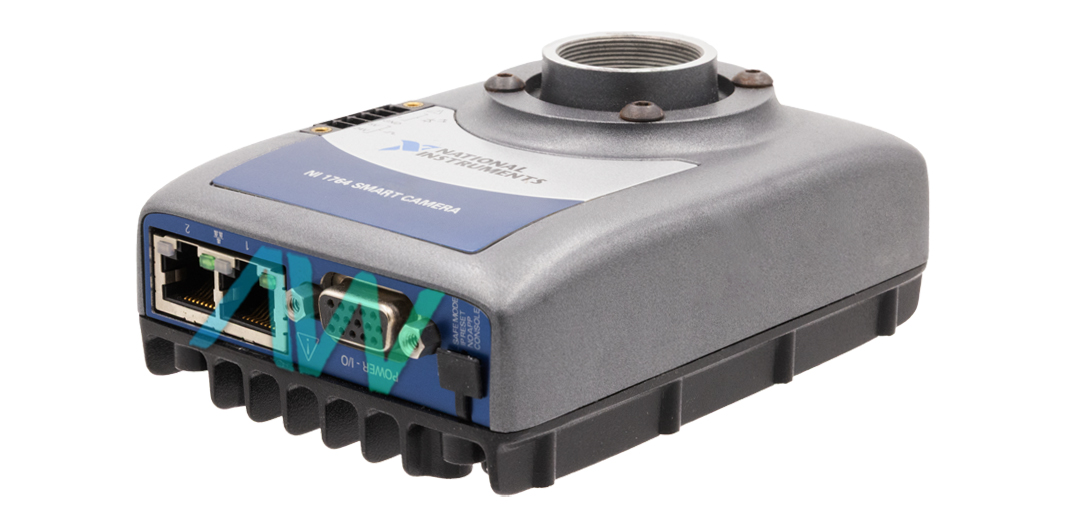

NI ISC-1764 Smart Camera
The ISC-1764 is a Smart Camera. NI is the manufacturer of the ISC-1764 Smart Camera. You can order the NI ISC-1764 using the part numbers 780402-01 and 198098A-05L. LabVIEW and Vision Builder (Automated Inspection) software are used for configuring the ISC-1764 Smart Camera. The NI ISC-1764 is part of the NI-17xx Series of Smart Cameras made by NI. The ISC-1764 can be used with a C mount lens, I/O cables, as well as a mounting bracket.
The NI ISC-1764 Smart Camera is developed with a 533 MHz processor. The ISC-1764 also includes a 720 MHz, TI DSP coprocessor. The National Instruments ISC-1764 Smart Camera performs well with a provided camera sensor. The ISC-1764 contains a 1.3 Megapixels image sensor. National Instruments manufactures the ISC-1764 Smart Camera with 128 MB system memory. The ISC-1764 is useful for vision-based images. The National Instruments ISC-1764 Smart Camera can aid in object detection and spatial calibration.
The NI ISC-1764 Smart Camera is produced with a resolution of 1280 x 1024. The manufacturer fabricates the National Instruments ISC-1764 Smart Camera with an 8-bit pixel depth. The NI ISC-1764 Smart Camera can take an image with 13 frames per second. The ISC-1764 Smart Camera is available with a web interface display. There are two opto-isolated DI and two opto-isolated DO included in the NI ISC-1764 Smart Camera. The ISC-1764 Smart Camera also incorporates an RS-232 serial port. The National Instruments ISC-1764 Smart Camera has a temperature range from 0 to 45 °C.
| Model | ISC-1764 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780402-01 and 198098A-05L |
| Type | Smart Camera |
| Processor | 533 MHz PowerPC and 720 MHz DSP |
| Image Sensor | 1/2 inch Sony ICX205AL CCD Monochrome |
| Quadrature Encoder Type | Differential, RS-422; phase A/[hase B, no index |
| Dimensions | 4.63 x 3.38 x 1.99 in. |
| Weight | 2 lb. |
| Warranty | 2-3 Year Warranty |
| ISC-1764 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the ISC-1764:
195303D-02, 195363B-01L, 198098A-05L, 780402-01
