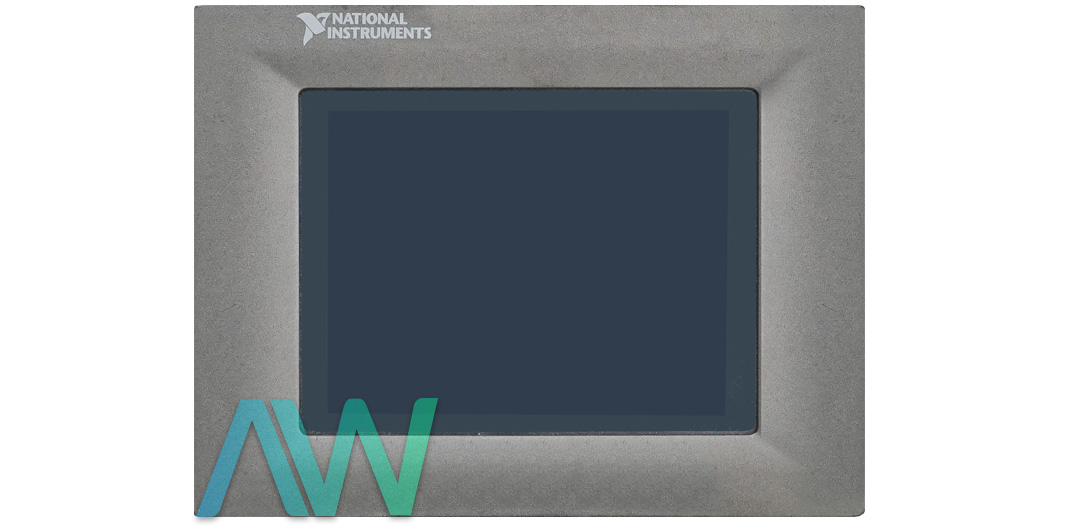

National Instruments TPC-2206 Touch Panel Computer
The NI TPC-2206 Touch Panel Computer is used for the deployment of Human Machine Interface software packages in harsh environments. The NI TPC-2206 is developed by National Instruments. The TPC-2206 is helpful in developing a user friendly and complex interface with durability, flexibility, and various type of supports for Windows based controllers. The NI TPC-2206 can be easily connected with other National Instruments devices using high speed ports.

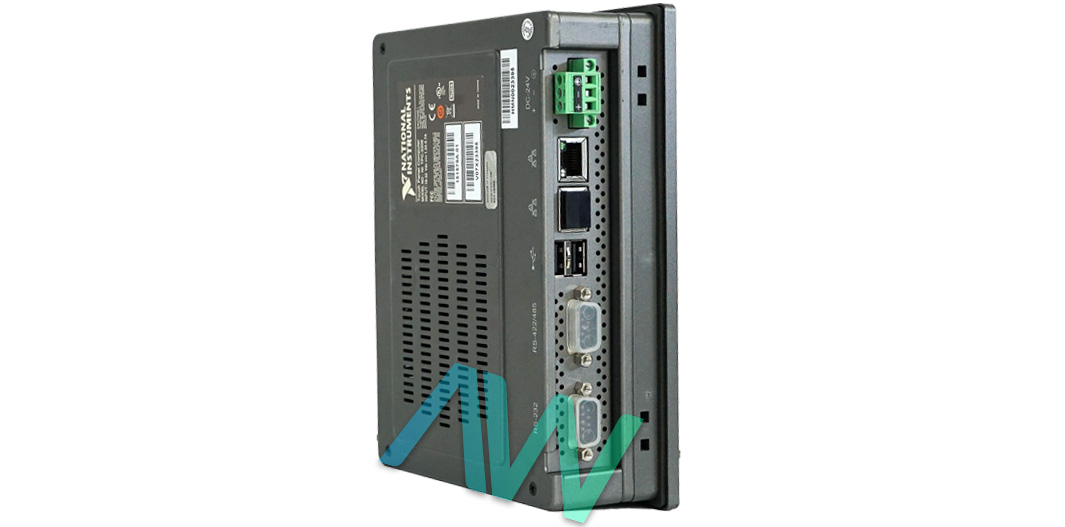

Prominent features of the National Instruments TPC-2206 include robust processing, high speed communication with other hardware by National Instruments, compatibility with Windows based embedded systems, and a vast range of operating conditions. The NI TPC-2206 includes two Gigabit supported Ethernet connectors, two high speed USB input/output ports, and two RS232 and RS422/485 serial communication ports. The robust processing for this Touch Panel Computer is accomplished by the Intel Atom Processor Z520PT 1.33 GHz with hyper threading, 1 GB RAM DDR2, and 4 GB of CompactFlash. The display of the NI TPC-2206 is 5.7 in. with a resolution of 640 × 480 VGA and a TFT LCD display.
The operating temperature range for the NI TPC-2206 is between -30° C to 85° C. The National Instruments TPC-2206 Touch Panel Computer has a resistive 4-wire touchscreen with a tempered glass base. The resolution of the touchscreen is 1024 × 1024. IEC 60950-1 and UL 60950-1 are the safety standards the Touch Panel Computer is designed for.
TPC-2206 Obsolete Status has been announced by National Instruments, but the Touch Panel Computer will still be available for purchase and repairs by Apex Waves.
| Model | TPC-2206 |
|---|---|
| Manufacturer | National Instruments |
| Type | Touch Panel Computer |
| CPU | Intel Atom Processor Z520PT1.33 GHz w/HyperThreading |
| Display Size | 5.7 in. |
| Display Type | TFT LCD |
| Maximum Resolution | 640 × 480 VGA |
| Maximum Colors | 262,000 |
| Dimensions | 7.68 × 5.83 × 2.28 in. |
| Weight | 3.1 lb. |
| TPC-2206 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
