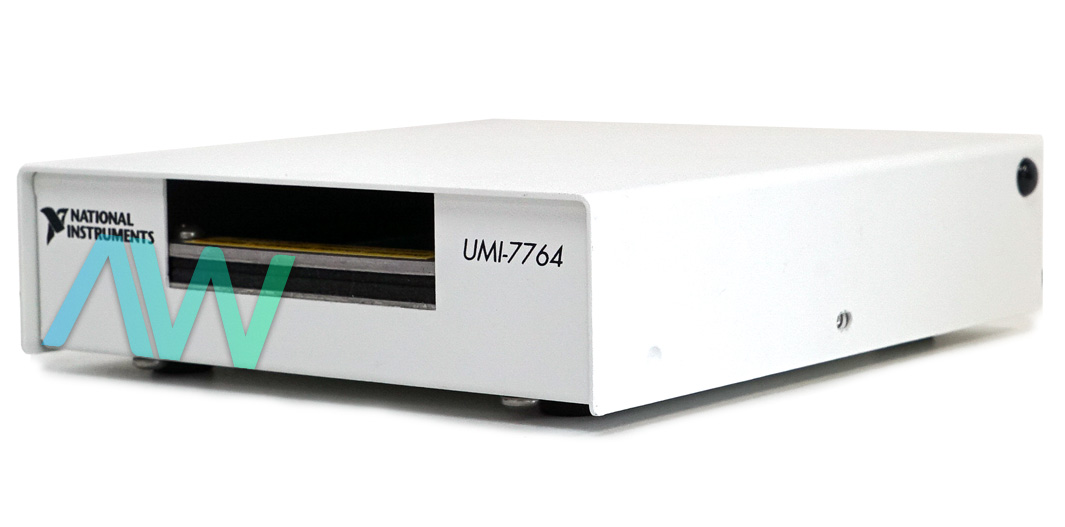

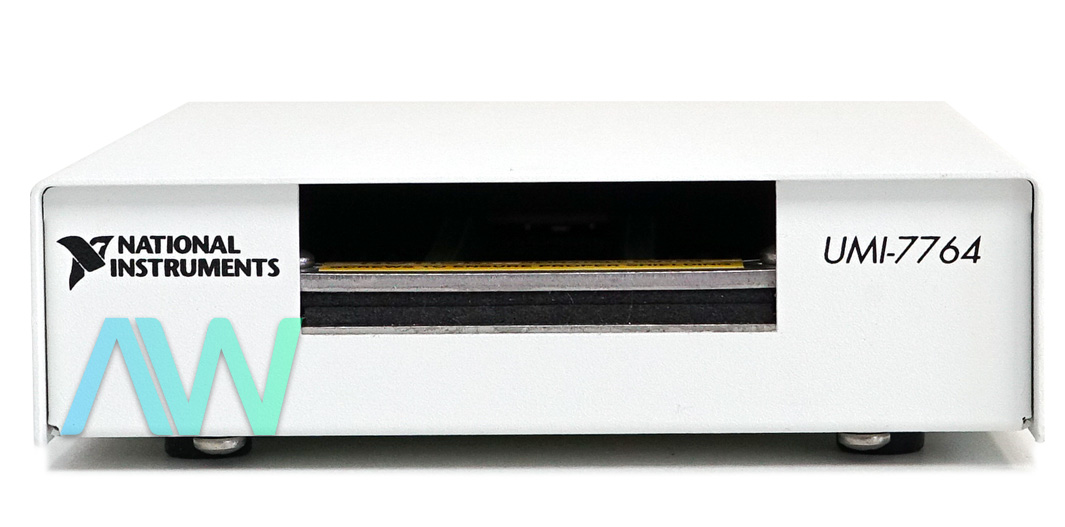

National Instruments UMI-7764 Universal Motion Interface

The UMI 7764 (Part Number: 777978-02) has the capability to connect the NI-735x/734x/733x Motion Controllers to third-party power drives with the SH68-C68-S Cable. The cable length sizes available are 0.5 m, 1 m, or 2 m. The UMI 7764 Motion Controller can additionally be used with a brushless servo drive like the AKD-P00606. When the interface is used with the AKD-P00606, it requires a 2.5 m access to drive AKD cable (Part Number: 781527-01). The NI UMI-7764 also requires a +5 V Power Supply, such as the NI PS-6 (Part Number: 780577-01). Another product that can be used with this interface is the SCB-68 for digital I/O connection.

The UMI-7764 has a host bus monitor power interlock that automatically deactivates the drive if the host computer turns off or the interface cable is detached. The UMI 7764 National Instruments is a 4-axis Universal Motion Interface with screw terminal connectors. Its motion/axis types are: brushed servo, brushless servo, P-Command servo stepper. This interface has signal pass-through compatibility and quadrature (with quadrature encoder rates of 1 to 20 MHz), incremental inputs. The UMI-7764 is best for laboratory and industrial applications.

Every axis linked to the NI UMI-7764 Universal Motion Interface has a motion I/O terminal block to which these signals are wired: distributed power connections, amplifier/drive connections, limit switch connections, and encoder connections. Every axis has five terminals for drive connections: Dir (CCW), Analog Output, Step (CW), Analog Output Ground, and Inhibit Output. The NI-733x Motion Controllers do not have Analog Output or Analog Output Ground signals.

The device has a 62-pin D-SUB I/O connector, a SCD-C68-S cable with 68-pin VHDCI offset male connectors (and is used in connecting the digital I/O connector to the NI SCB-68. The UMI-7764 operates on the NI motion software which requires the presence of an Application Environment such as LabVIEW). The device is compatible with the NI 735x, 734x, 733x motion controllers. The device has the dimensions 7.7 x 6.0 x 1.8 inches.

UMI-7764 Obsolete Status has been announced by National Instruments, but the Universal Motion Interface will still be available for purchase and repairs by Apex Waves.

ModelUMI-7764
ManufacturerNational Instruments
Part Number777978-02
HTS Code8537109170
TypeUniversal Motion Interface
Axes4
Quadrature Encoder Rates1 or 20 MHz
CompatibilityNI 735x/734x/733x motion controllers
ConnectivityScrew Terminal
I/O Connector62-pin D-Sub
Operating SystemAny
LabVIEW RT SupportYes
Motor/Axis TypeBrushed Servo, Brushless Servo, P-Command Servo Stepper
Product FamilyMotion Interface
Dimensions7.7 by 6.0 by 1.8 in.
WarrantyThree Year Warranty
UMI-7764 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments UMI-7764 Frequently Asked Questions



Question: What is the maximum power consumption of the NI UMI-7764?



Answer: The maximum power consumption of the NI UMI-7764 is 0.2 A.



Question: What is the differential input threshold of the UMI 7764 Motion Controller?



Answer: The differential input threshold of the UMI 7764 Motion Controller is ±0.3 V (typical).



Question: Does the UMI 7764 National Instruments have LabVIEW RT support?



Answer: Yes, the UMI 7764 National Instruments has LabVIEW RT support.



Question: What is the impedance between the +5V input and ground for the UMI-7764?



Answer: The impedance between the +5V input and ground for the UMI-7764 is 18.1 Mohms.
