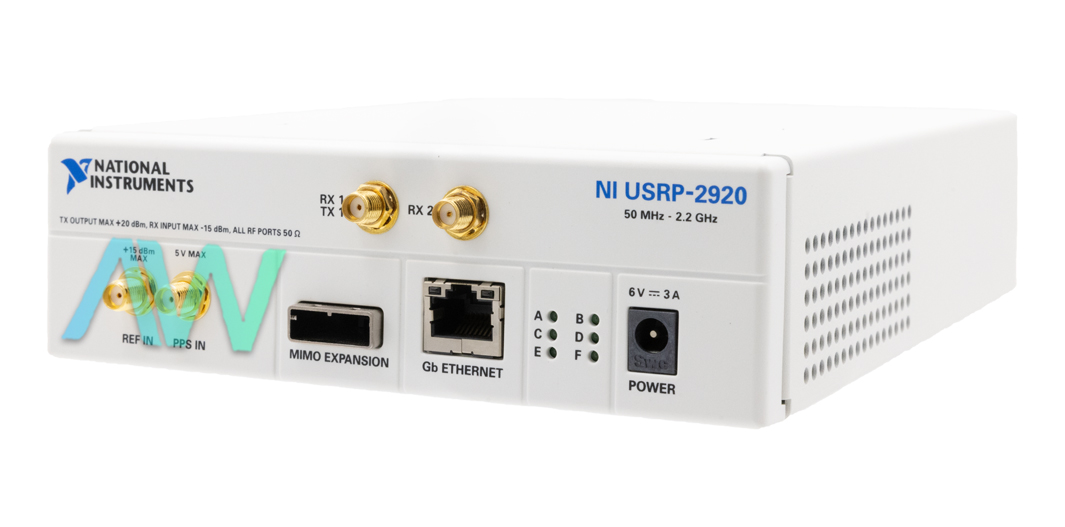

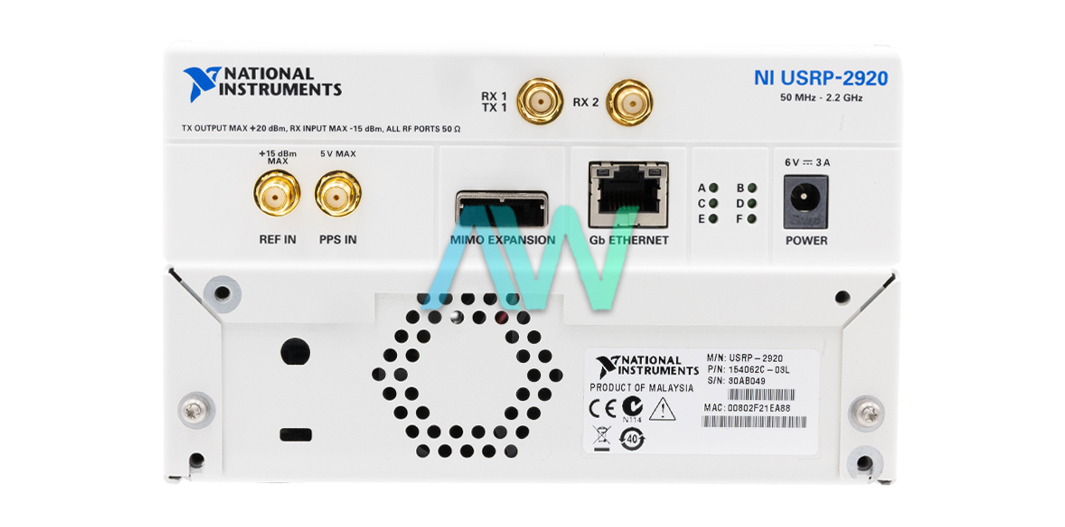

National Instruments USRP-2920 USRP Software-Defined Radio Device

The USRP-2920 is a USRP Software Defined Radio Device. National Instruments designs the NI USRP-2920 device. The USRP-2920 USRP Software Defined Radio Device is manufactured with the part number 781906-01. The USRP-2920 is installed with a dedicated instrument driver. The operating functions for the NI USRP-2920 device can be programmed with LabVIEW ADEs. The USRP-2920 is equipped with an Ethernet bus connector for communication tasks.

The NI USRP-2920 USRP Software Defined Radio Device is fabricated with RF frequencies in the range of 50 MHz – 2.2 GHz. The USRP-2920 device contains RF bands with a bandwidth of 20 MHz. The National Instruments USRP-2920 USRP Software Defined Radio Device functions as a tunable radio frequency transceiver alongside the high-speed ADC and DAC converters. The ADC and DAC converters are used for baseband streaming functions of ‘I’ as well as ‘Q’ signals towards the host computer over one GB Ethernet. The gain step of the transmitter of the NI USRP-2920 device is rated at 1.0 dB and the receiver is rated at 0.5 dB.

The NI USRP-2920 USRP Software Defined Radio Device is usually powered with a range of 12 to 15 Watt within typical operations, while in maximum capacity the power becomes 18 Watts. The USRP-2920 device is also compatible with an externally connected DC power supply of 3 A and 6 Volts. The NI USRP-2920 device needs a 10 to 90 % noncondensing humidity range. The USRP-2920 must be operated in the temperature range of 23 °C ± 5 °C.
