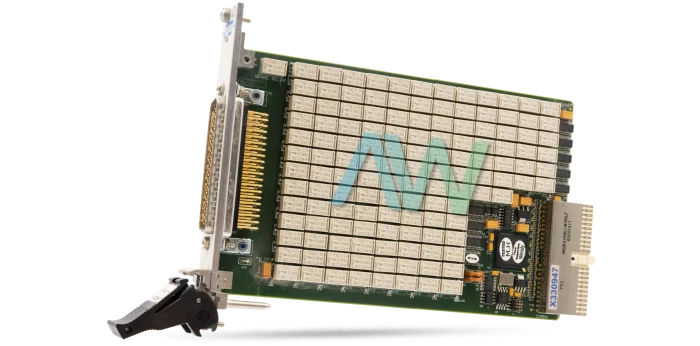

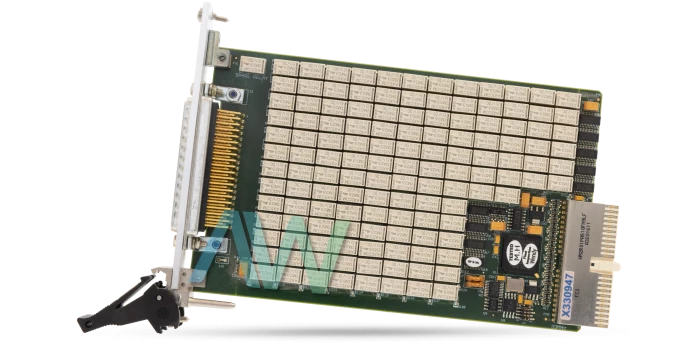

Pickering 40-519A-002 PXI Matrix Switching Module
The Pickering 40-519A-002 is a 32 x 4 two pole PXI matrix switching module designed for industrial applications that uses electromechanical relays. Its each relay provides two pole switching paths that maintain stable performance across diverse signal conditions. This unit offers maximum switch voltages of 300 V DC or AC operation. The module supports 60 W DC power handling which ensures dependable switching and its design maintains 2 A switching capability that allows safe operation with constant current loads. The 40-519A-002 module delivers 2 A carry current that aligns with industrial automation requirements and it operates with 6 A pulsed current ratings to support short surge conditions effectively. On path resistance stays below 500 m ohms which supports accurate measurement systems during switching while Off path resistance exceeds 1 billion ohms to ensure minimal leakage for sensitive circuits usage.
The 40-519A-002's thermal offset remains below 10 microvolts for allowing precise routing of low-level sensor signals today. It achieves less than 3 ms operate time for supporting rapid switching and its typical bandwidth above 10 MHz allows consistent performance across broad signal frequency ranges in systems. The matrix switching module consumes low power that enables efficient operation within PXI chassis during extended duty cycles today. It uses a 78 pin D type connector that supports organized signal management. The module fits single slot 3-unit PXI format which simplifies integration into automation systems assurance. Its humidity tolerance reaches 90% non-condensing to maintain stability.
The design of 40-519A-002 matrix module includes an onboard spare relay that minimizes system downtime during maintenance events today. It complies with PXI specification 2.2 supporting reliable backplane communication structures and supports BIRST diagnostics which enable internal testing of relay integrity before deployment cycles. Its external EBIRST tools provide enhanced fault isolation which strengthens modular maintenance for automation frameworks usage. The Pickering 40-519A-002 integrates with standard PXI or LXI chassis enabling flexible architectural options and features major software environments enabling consistent configuration through established development platforms for engineers. Its soft front panels allow manual control which assists verification tasks during integration of test systems. Switch Path Manager enables automated routing which reduces development complexity for structured measurement setups.
| Model | 40-519A-002 |
|---|---|
| Manufacturer | Pickering |
| Part Type | 32×4 Two Pole PXI Matrix Switching Module |
| Max Switch Voltage | 300 VDC / 250 VAC |
| Max Switch Current | 2 A |
| Initial On-Resistance | < 500 mΩ |
| Operate Time | < 3 ms |
| Bandwidth | > 10 MHz |
| Front Panel Connector | 8-pin male D-type |
| Form Factor | Single-slot 3U PXI (CompactPCI) |
