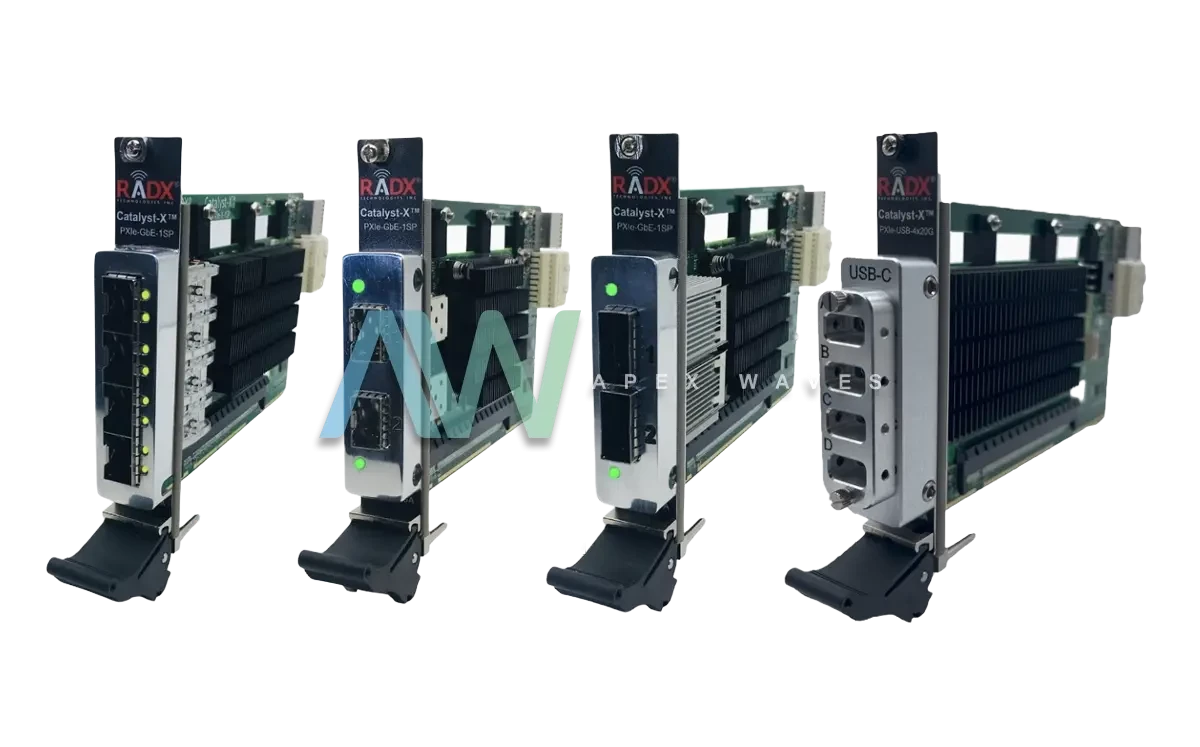

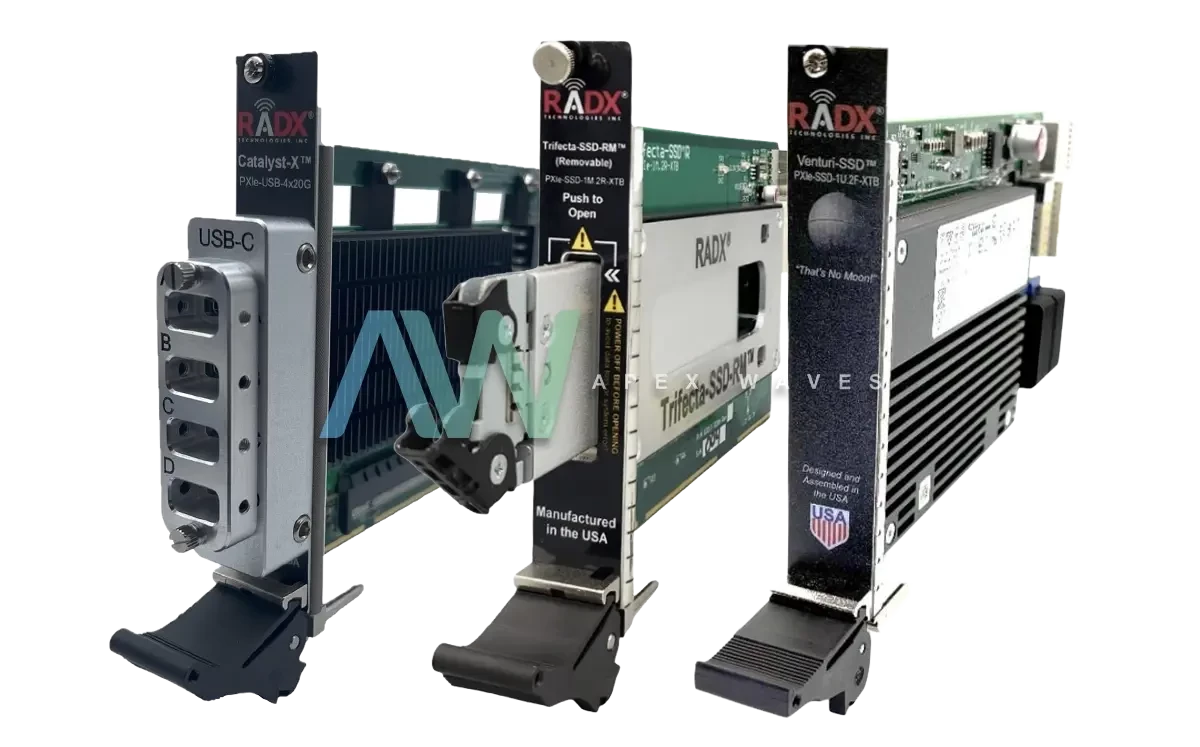

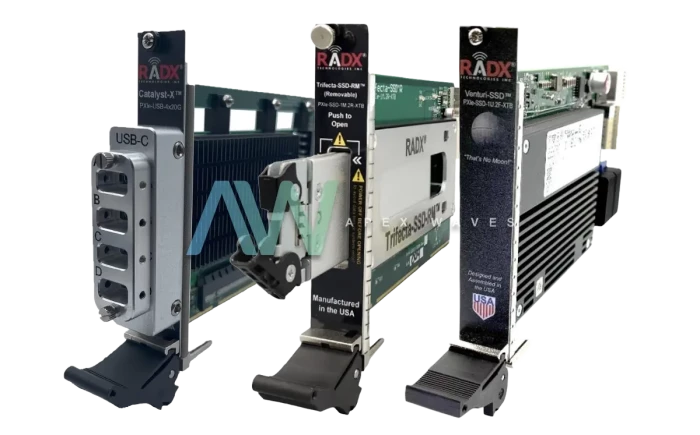

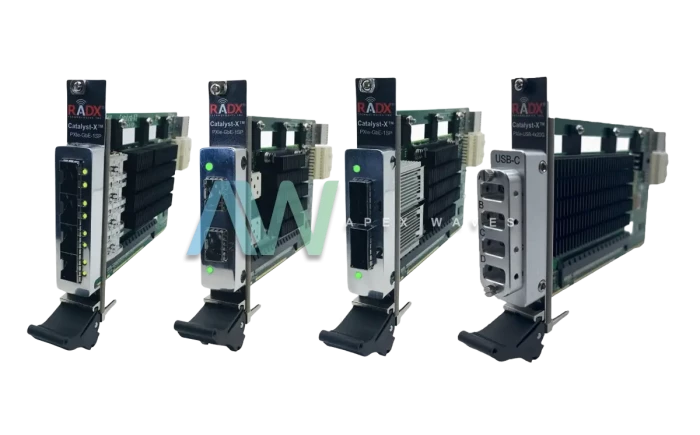

RADX Technologies PXIe-USBC-4x20Gbps-HA Catalyst PXIe-USB Module
Part Number PXIe-USBC-4x20Gbps-HA from RADX Technologies' Catalyst PXIe-USB family of products is a commercial off-the-shelf (COTS) module with a single-slot. With locking USB-C peripheral connectivity, this USB-C Host Adapter operates directly inside standard PXIe and cPCIe systems and is intended for high-bandwidth applications. This module's central component, the HighPoint RU1444C controller, makes it simple to interface with a quick PCIe Gen 3 x4 host connection.
There are four USB-C ports on the PXIe-USBC-4x20Gbps-HA that are both independent and locking in order to fully support the USB 3.2 Gen 2x2 standard. Each port delivers a dedicated and full-duplex bandwidth of up to 20 Gbps. This module, which has hardware-level port isolation, makes sure that a port is isolated to safeguard any other connected devices in the event of an electrical malfunction or bandwidth saturation. The per-port power delivery of the Catalyst PXIe-USB module is incredibly flexible.
With compatibility for all standard PXIe and cPCIe chassis from other manufacturers such as Keysight, Pickering, and NI (National Instruments), this module is optimized for rapid deployment. There is no need for custom RADX software with the device, as any connected USB-C devices automatically use standard OS USB host controller drivers on Windows 10, Windows 11, and supported Linux systems.
The PXIe-USBC-4x20Gbps-HA is an excellent choice for data-heavy and sensitive/government test and measurement applications, including software-defined radio integration, automated test equipment, high-speed data recording, electronic warfare, or signals intelligence.
This patent-protected module is designed and assembled in the United States, and is fully compliant with both the BAA (Buy American Act) and TAA (Trade Agreements Act). As an authorized distributor, Apex Waves offers international and expedited shipping options to meet your needs. Request a quote fror the PXIe-USBC-4x20Gbps-HA today for pricing, or reach out to us directly at support@apexwaves.com for additional information!
| Model | PXIe-USBC-4x20Gbps-HA |
|---|---|
| Manufacturer | RADX |
| Part Type | Catalyst PXIe-USBC |
| Integrated PCIe NIC or HA | Highpoint RU1444C |
| Transceivers | N/A |
| Max W/Slot | ~15W - 47W |
| Locking USB-C Ports | 4 Independent |
| USB Data Link Rate | 20 Gbps |
| Electrical Power | 7.5 W per Port |
| Distributor | Apex Waves |
