Spirent 400140 AX/4000 Broadband Test System
The 400140 Spirent Adtech AX/4000 Broadband Test System is one of the most powerful systems for testing the performance and Quality of Service (QoS) of broadband technologies. This modular, multi-port system can test multiple transmission technologies (ATM, IP, Frame Relay, Ethernet) up to 10 Gbps. It’s designed for flexibility and scalability with field programmable test modules and over 35 interchangeable interfaces to support various transmission technologies and connection types.
The Spirent Adtech 400140 AX/4000 system is built to withstand the toughest testing scenarios. Software options allow conformance testing to the latest industry standards so it’s perfect for performance testing under extreme conditions. The system can test at access and core backbone levels to validate network scalability, reliability and performance before deployment. A WAN emulator technology license (P/N 401600) is also included.

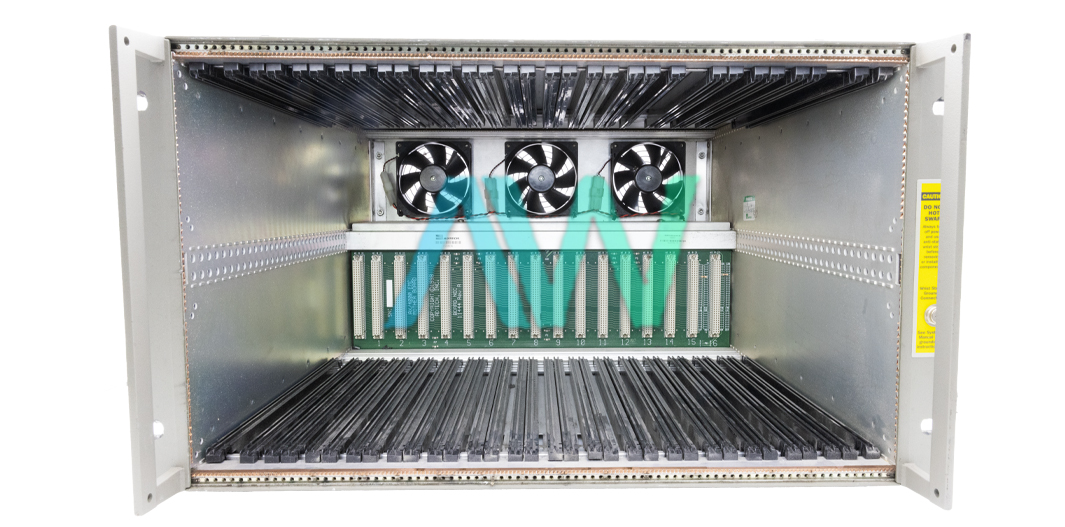

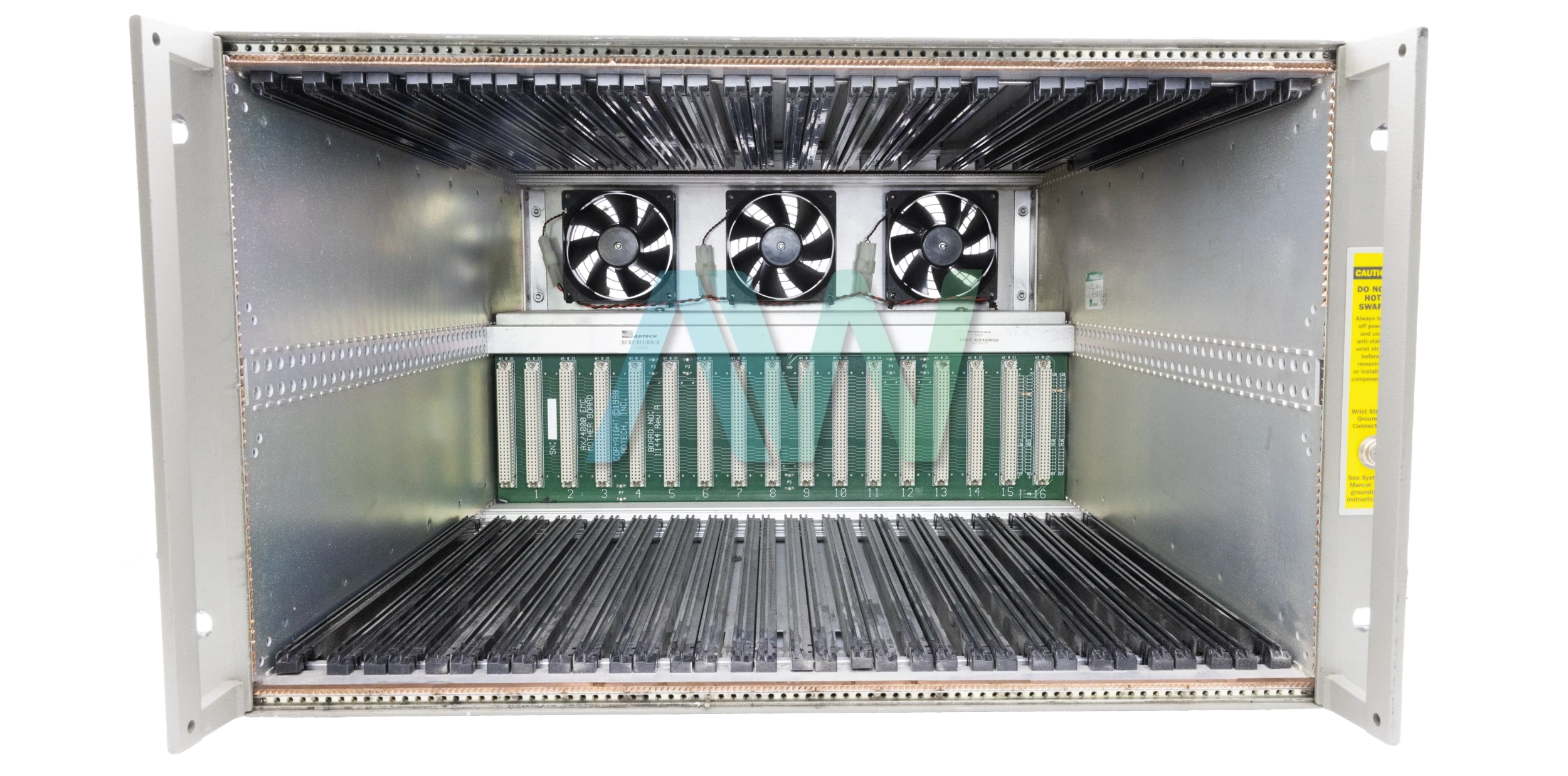

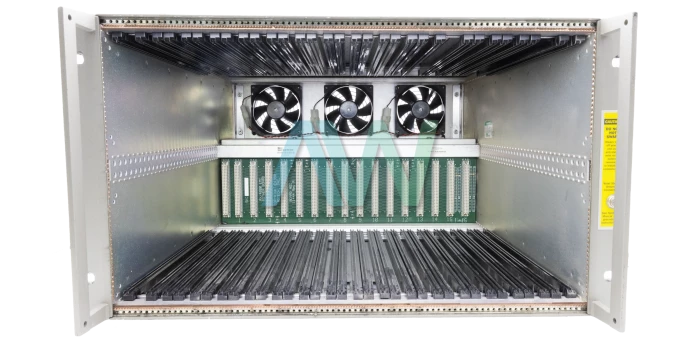

The system consists of a 16-slot XL Mainframe Chassis, generator modules and port interfaces for various technologies and speeds. Notable interfaces supported are OC-12c/OC-3c/STM-4c/STM-1 interfaces in single-mode and multi-mode and the system can test transmission technologies from 1.554 Mbps to 10 Gbps. Generator modules like the 1 Gbps Generator/Analyzer Test Module (P/N 401400H) allows for performance testing in various broadband scenarios.
Developed with input from leading telco equipment manufacturers and network service providers, the 400140 Spirent Adtech AX/4000 Broadband Test System can test protocols, routing, switching, MPLS and multicast. It simplifies testing, reduces cost and time and ensures devices and networks meet performance requirements before deployment.
The Spirent Adtech AX/4000 Broadband Test System is a complete and flexible solution for end-to-end testing of broadband technologies. It’s a must have for network service providers and telco equipment manufacturers. It can test under extreme conditions to validate performance before critical network deployments.
| Model | 400140 |
|---|---|
| Part Number | 400140 |
| Chassis Type | 16 Slot XL Mainframe Chassis |
| Transmission Technologies | ATM, IP, Frame Relay, Ethernet |
| Max Speed | 10 Gbps |
| Interfaces | 35+ interchangeable, including OC-12c, OC-3c, STM-1 |
| Test Module | 1 Gbps Generator/Analyzer (P/N 401400H) |
| WAN License | Requires WAN Emulator license (P/N 401600) |
| Conformance Testing | Protocol test suites |
| Applications | Network, routing, MPLS, access validation |
Associated part numbers for 400140:
Delivery:
Eligible returns may be accepted within 30 days at Apex Waves’ discretion. A 25% restocking fee applies; non-refundable and built-to-order products are excluded.
Payment:
Receive Price & Availability Today!
Ask About Our Tiered Calibration Levels
Option & Modules:
Confirm Your Requirements or Versions
Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
