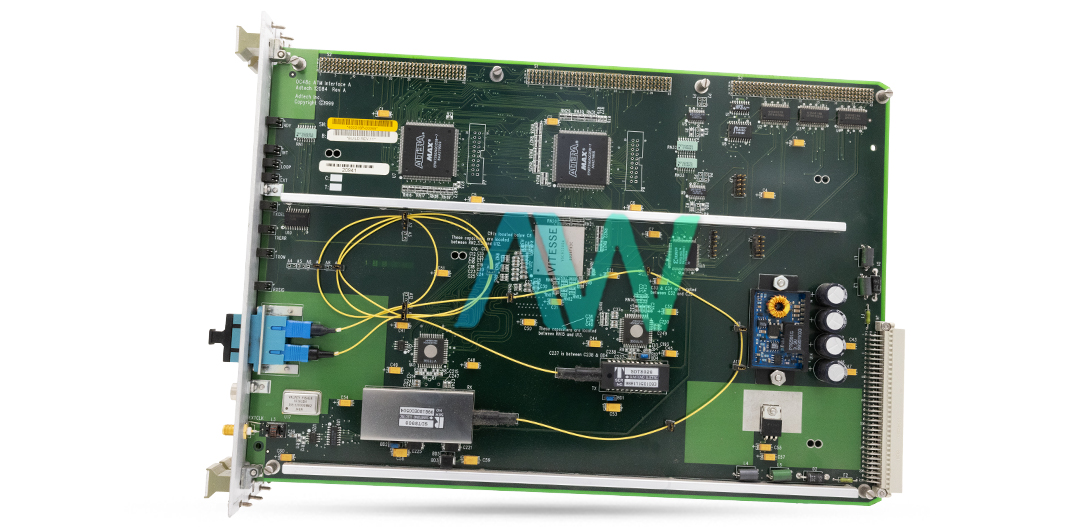

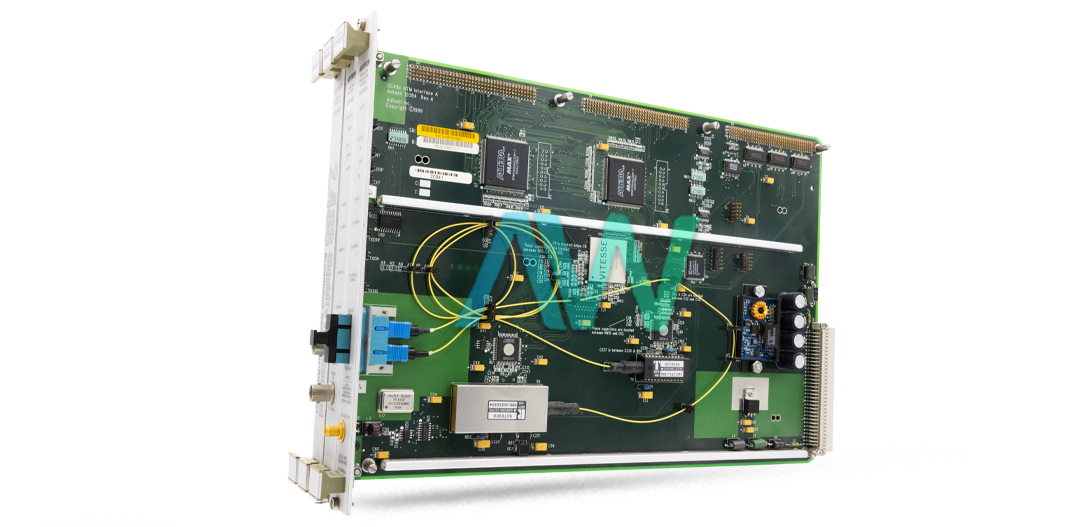

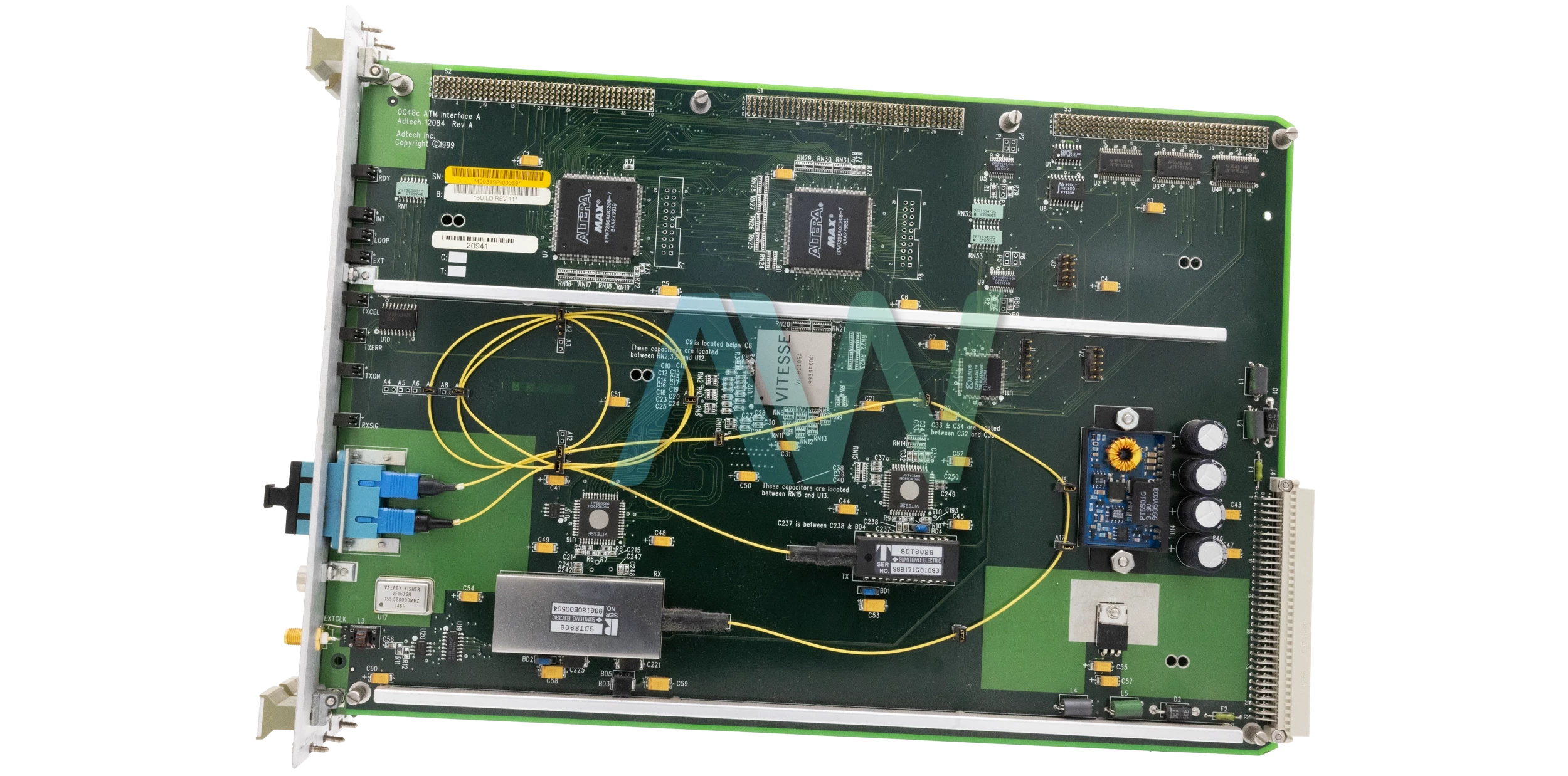

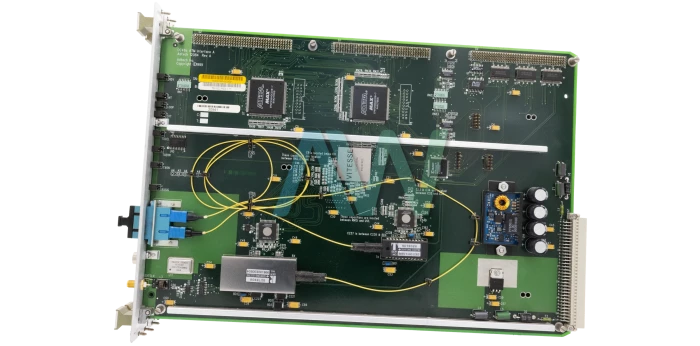

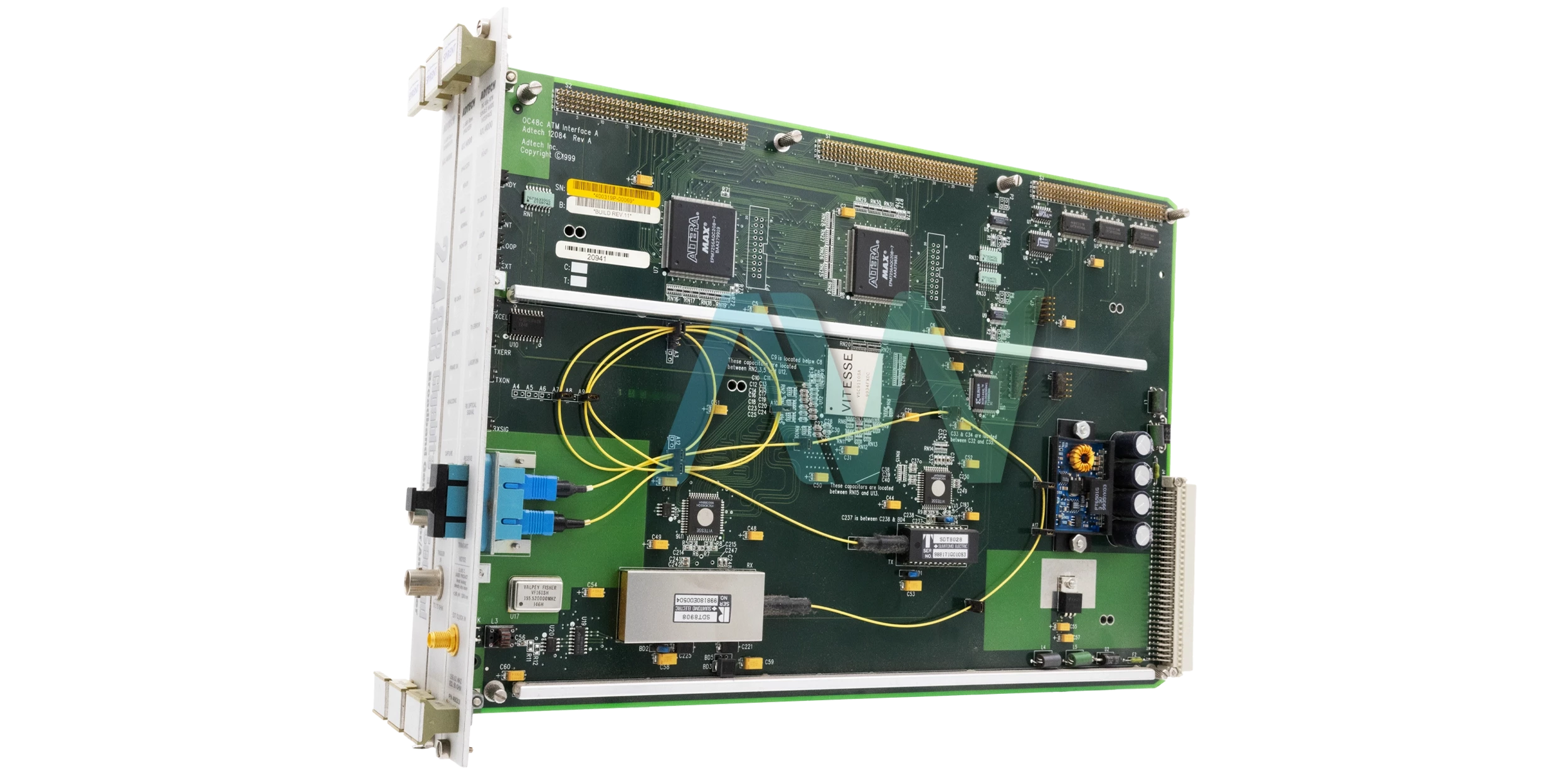

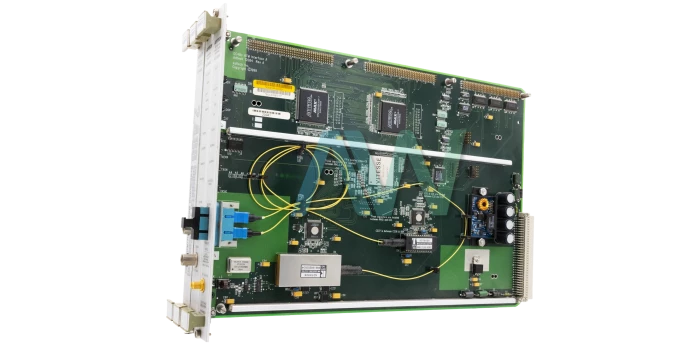

Spirent 400319 OC-48c ATM Single Mode Interface Module

The Spirent 400319 OC-48c ATM Single Mode Interface Module is a high-performance interface designed to suit the broadband test system called Spirent AX/4000, which is highly utilized in broadband and ATM test environments. The module contains one SONET OC-48c single-mode optical connector that supports ATM traffic and enables comprehensive testing across high-speed networks. This interface, operating at 2.488 Gbps, would be ideal for those applications requiring high data transportation speed over very long distances, and meeting the needs of network service providers and the quality and performance assurance for the manufacturers.

The module 400319 integrates seamlessly into the scalable and modular test framework of AX/4000. It supports several network protocols like ATM, IP, and Frame Relay in different network segments: core, edge, and metro areas. This is a field-programmable module, offering flexible test configurations. It comes with advanced features such as transmit and receive connectivity by using dual SC optical connectors. This setup has made it possible to manage optical signals with efficiency, maintaining signal integrity over single-mode fiber-a key factor in long-distance communication.

The key capabilities of the Spirent 400319 module are outlined as accurate transmit and receive functions. These functions are controlled through Windows-based software interfaces of the AX/4000. The control is accorded in command over a variety of parameters such as the transmit clock source and alarm triggers to facilitate thorough ATM performance analysis to industry standards. Configurations, turning on, and monitoring of network performance through the graphical software interface allow for this to be done very rapidly, something quite highly valued during the early stages of tests to uncover problems well in advance.

The module provides real-time transmit and receive status updates through LEDs for efficient error tracking and performance monitoring. This is very important in instant visual feedback to ensure prompt troubleshooting and lessened downtime. Module 400319 provides support for an internal clock source, a loop mode, and an external clock input, which provide options to the user for timing precision control.
