Spirent AX/4000 Modular Multi-Port Testing System
The Spirent AX/4000 is a multi-technology testing solution for broadband and network performance across various protocols including ATM, IP, Frame Relay and Ethernet. Capable of 10 Gbps, the AX/4000 allows multi-technology testing, so network professionals have a single tool to test networks and devices.
With field-programmable test modules and over 35 interfaces, the AX/4000 can test any connection type, and adapt to any testing requirement. With its software options, it can do conformance testing to the latest standards, so devices are compatible and perform well in complex network environments. The modularity and programmability of the AX/4000 means you can set up and test faster, no need for multiple systems.
For network equipment manufacturers, service providers and enterprises, the AX/4000 validates scalability, reliability and performance before deployment. The system can simulate end-to-end networking conditions, from subscriber access to core backbone, so it’s great for testing access protocols, mobile backhaul, routing, multicast, MPLS and more. With interface speeds from 1.554 Mbps to 10 Gbps, the AX/4000 is highly configurable for any network.
The AX/4000 helps reduce testing costs and time by allowing exhaustive and repeatable testing, so you get detailed insight into network and device performance under different conditions. By providing high repeatability in testing, you can isolate issues early, improve troubleshooting and get consistent reliable network performance.
With protocol coverage through dedicated conformance test suites, the AX/4000 ensures devices meet industry standards and interoperability requirements for legacy and modern technologies. The Spirent AX/4000 is a must have for any organization deploying reliable high performance network services, so it’s the leading solution for broadband and network performance testing across enterprise, metro and core networks.
| Model | AX4000 |
|---|---|

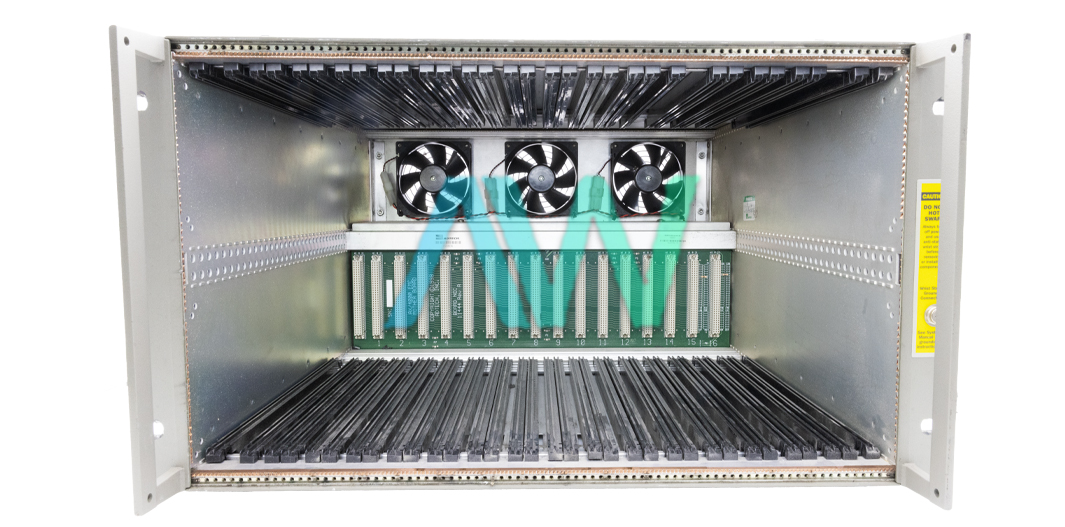

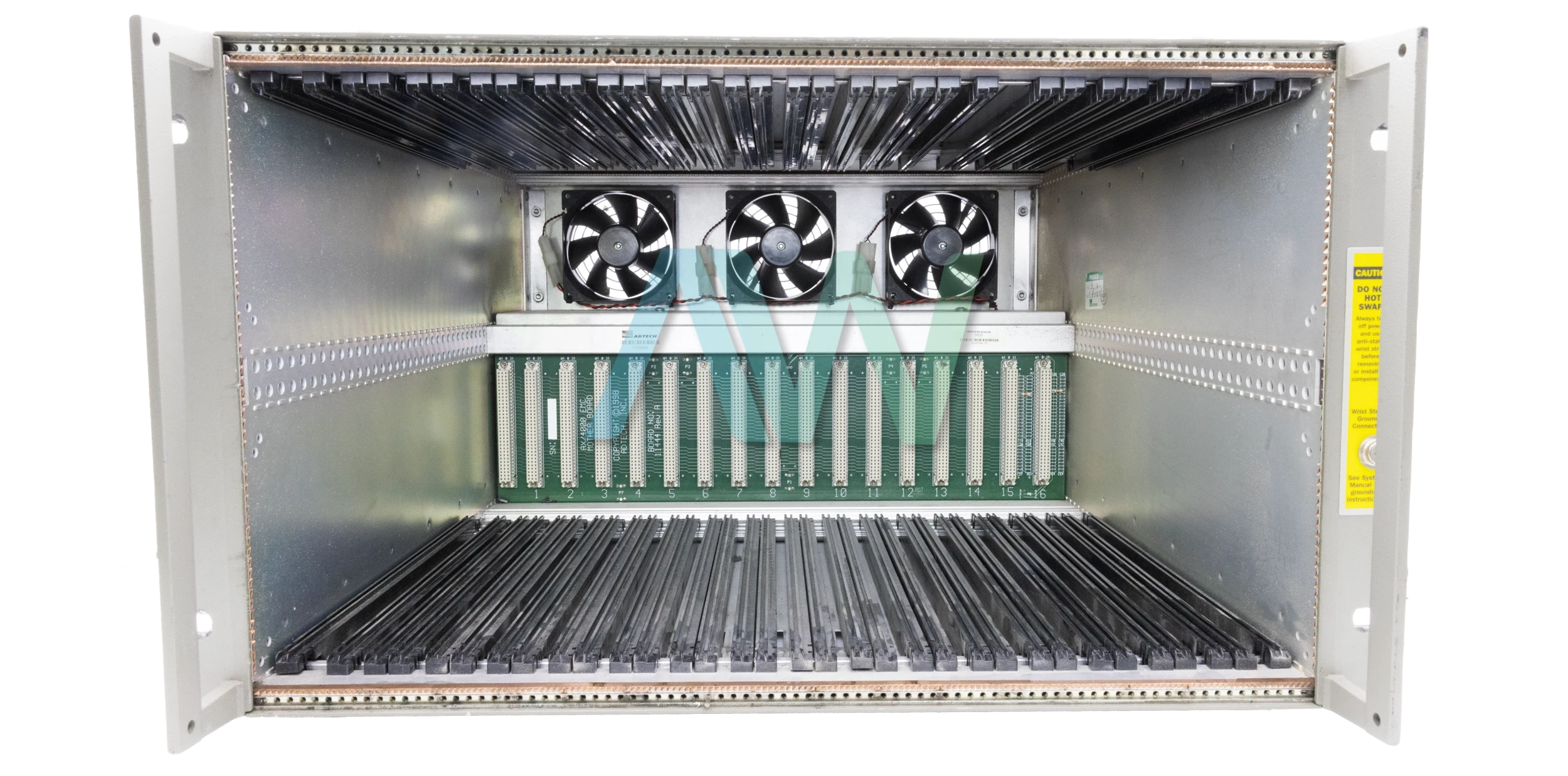

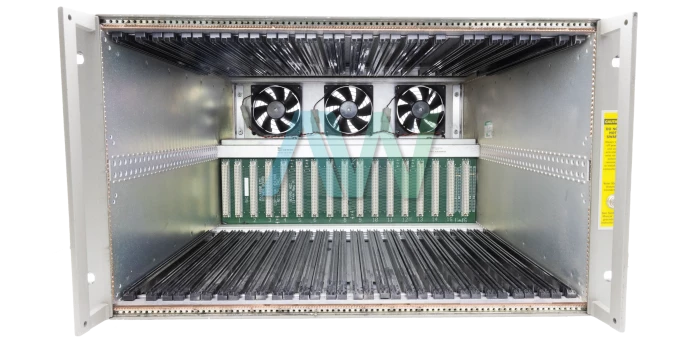

| Slot Capacity | 16 module slots |
| Control Module | Ethernet, CPU, RAM, flash ROM, UNIX OS |
| Timing Options | GPS, BNC for sync |
| Ethernet | 10/100/1000Base-T |
| GPS Precision | Sub-microsecond delay measurement |

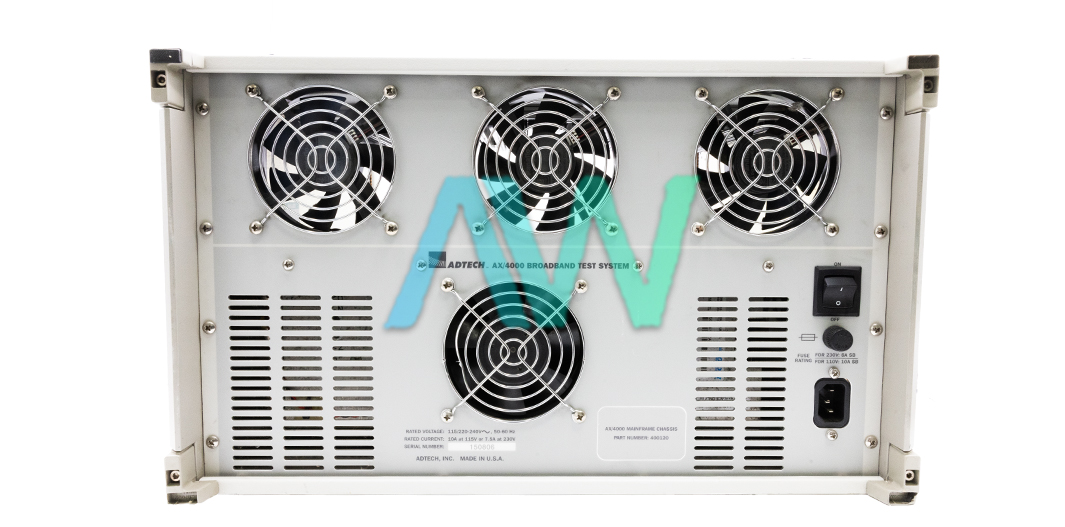

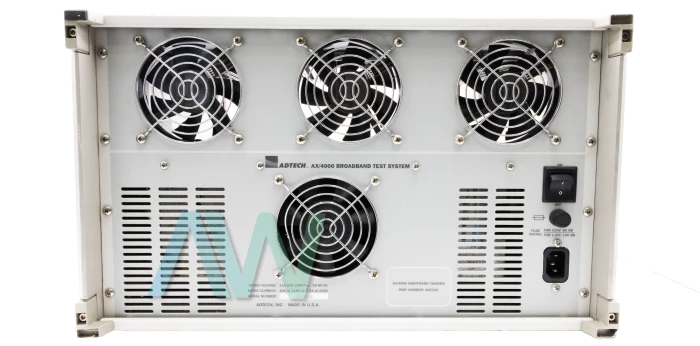

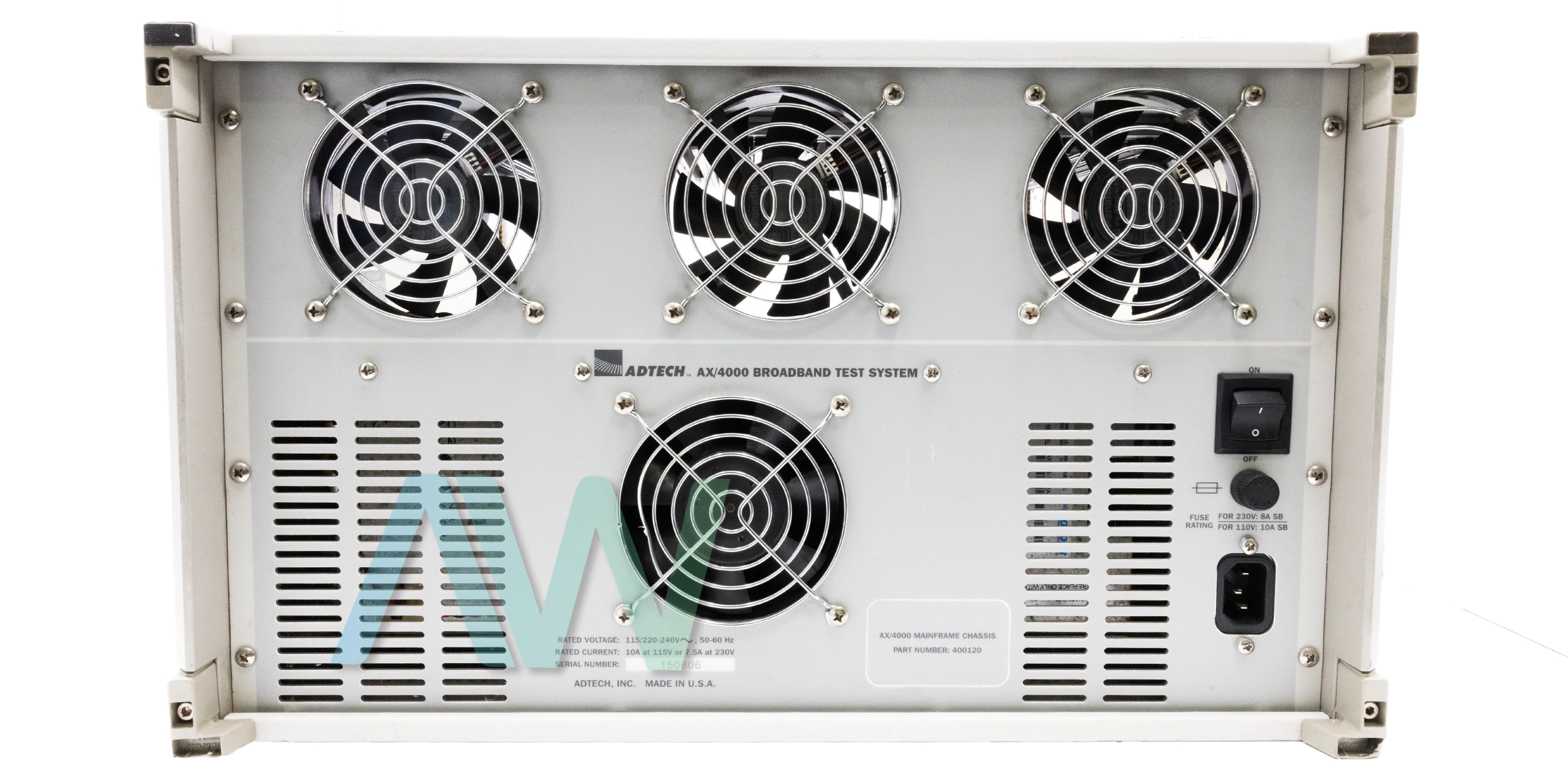

| Cooling | 4 rear fans, 6-inch clearance |
| Power | 110-120/220-240 VAC, 50/60 Hz |
| Temperature | Up to 35°C (95°F) |
| Software Compatibility | Solaris compatible |
Associated part numbers for AX4000:
