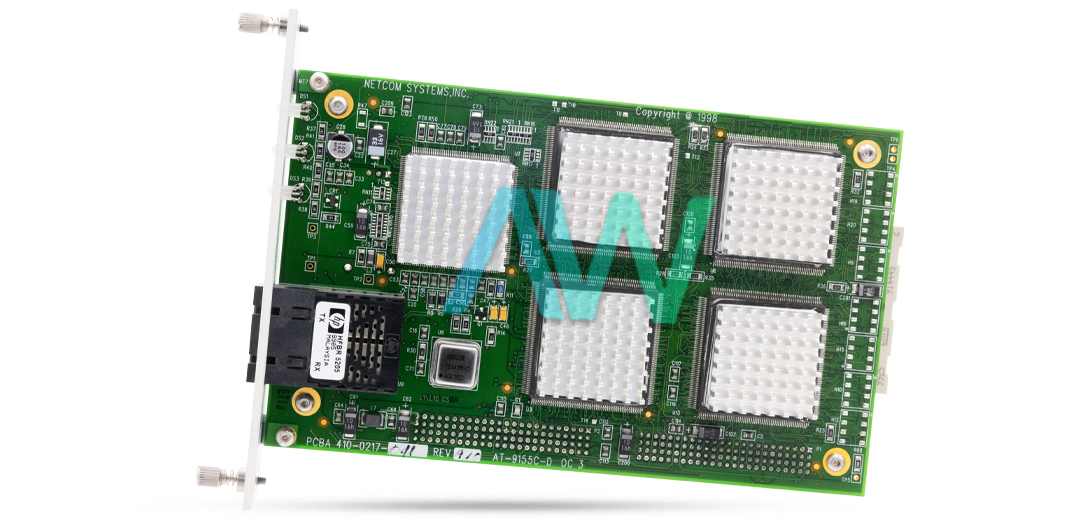

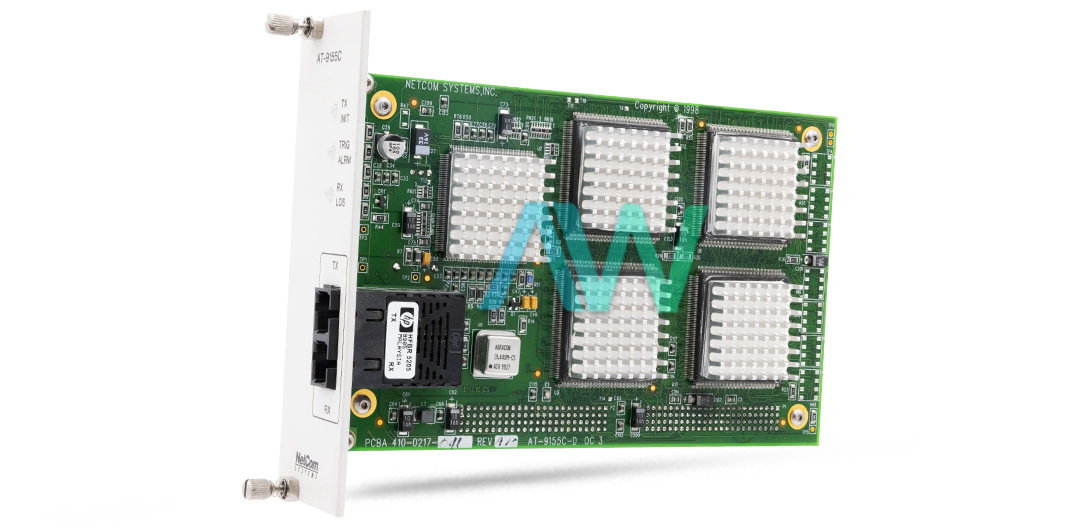

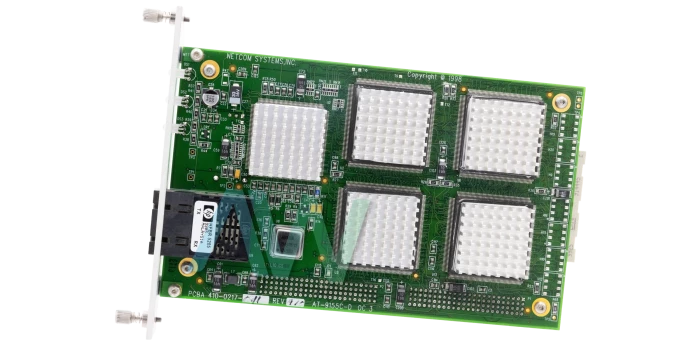

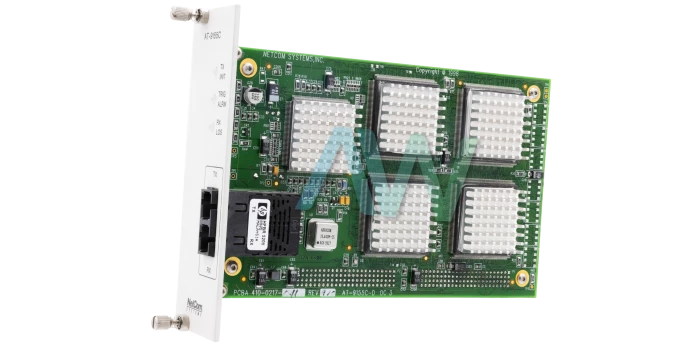

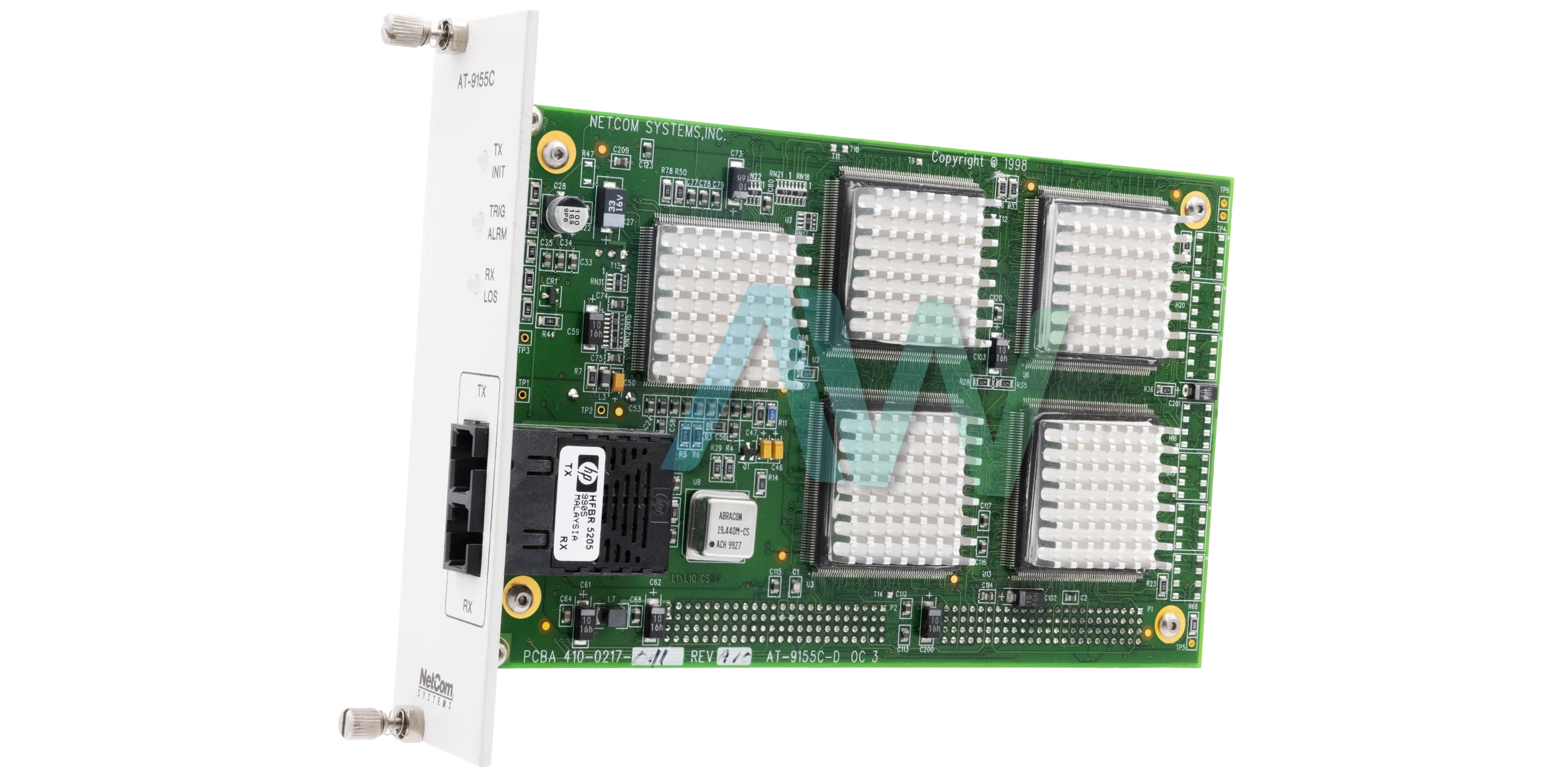

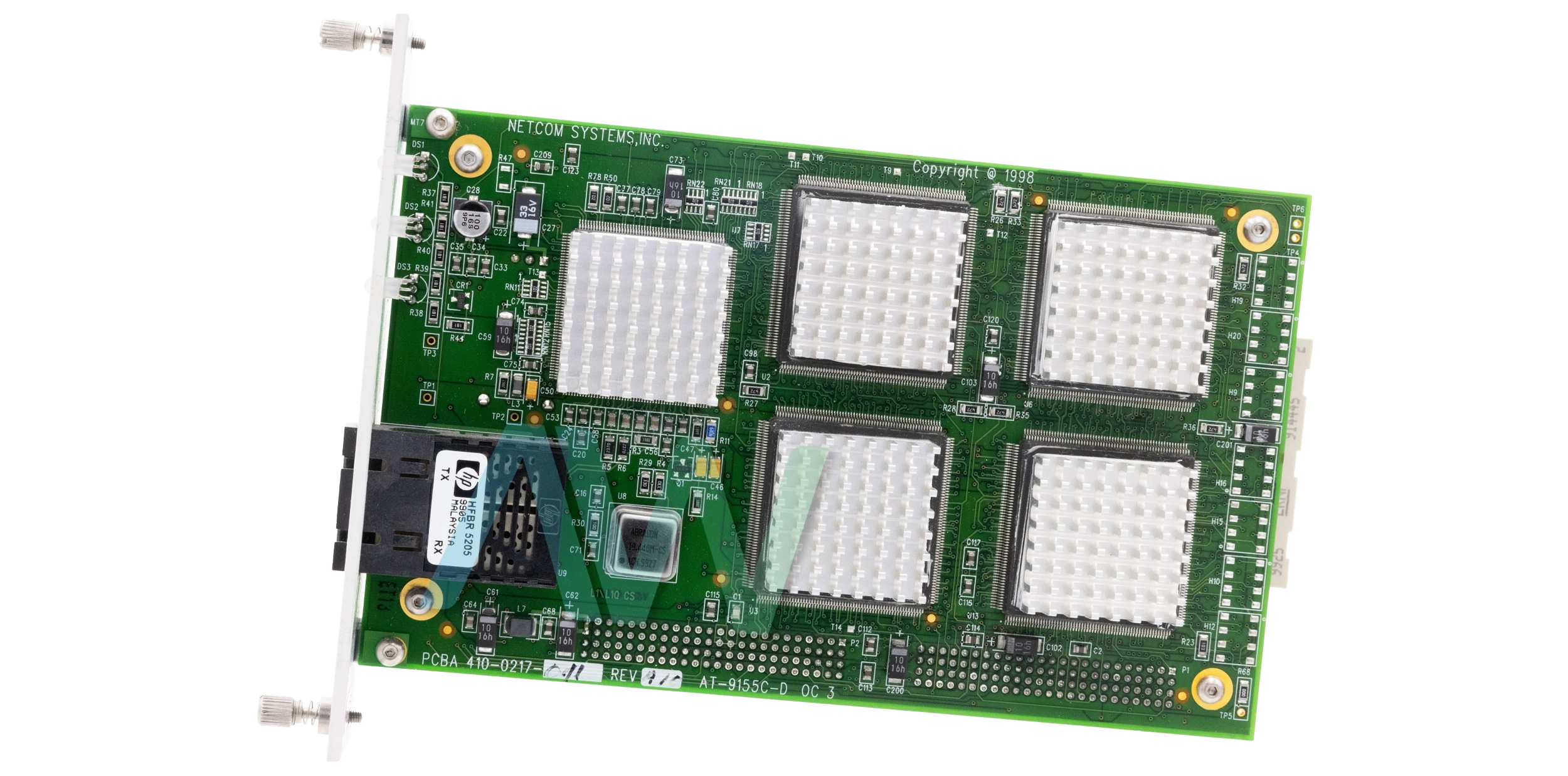

Spirent SmartBits AT-9155C ATM OC-3 Multimode Module
The SmartBits AT-9155C is an ATM OC-3 Multimode Module. The manufacturer of the AT-9155C ATM OC-3 Multimode Module is Spirent Communications. The AT-9155C ATM OC-3 Multimode Module is majorly designed to be applied in ATM networks. For the network applications involving the examination of interconnected networks such as ATM-ATM, ATM-LAN, or ATM-xDSL, the AT-9155C module performs exceptionally well in diverse testing conditions. In addition to the interconnected devices/systems, the AT-9155C module is also capable of testing, certifying, and validating various components of network systems.
The Spirent AT-9155C ATM OC-3 Multimode Module is a single-port SmartBits SmartCard with OC-3/STM-1. A thorough performance assessment of DSL networks, testing of edge devices and network switches at rated line capacity, and system testing with extended precision (up to frame level) is attainable when the SmartBits AT-9155C module is deployed in network applications. In the virtual circuits such as PVC and SVC, up to a maximum of 2048 frames are generated by the SmartBits AT-9155C module. Moreover, a rapid and accurate testing of LANE and PPP systems is also among the bright features of the SmartBits AT-9155C module.
The Spirent AT-9155C ATM OC-3 Multimode Module is capable of processing PPP events efficiently up to 2048 point to point protocol sessions and simulating 64 LECs in testing applications. In conjunction with a high-performance ATM test suite consisting of 40 ports, each port of the Spirent AT-9155C module can hold up to 8.38 Million VCCs. Besides the exceptional technical specifications of the Spirent SmartBits AT-9155C ATM OC-3 Multimode Module, the compact and low-weight body of the module is also a perk for users. The total weight of the Spirent AT-9155C module is only 3 lbs.
| Model | AT-9155C |
|---|---|
| Manufacturer | Spirent Communications |
| Type | ATM OC-3 Multimode Module |
| Number of Ports | 1 |
| Max. Frame Generation | 2048 |
| Max. PPP Sessions | 2048 |
| Max. LECs | 64 |
| Max. Calls per Port per Second | 800 |
| Max. VCCs per Port | 8.38 Million |
| AT-9155C User Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
