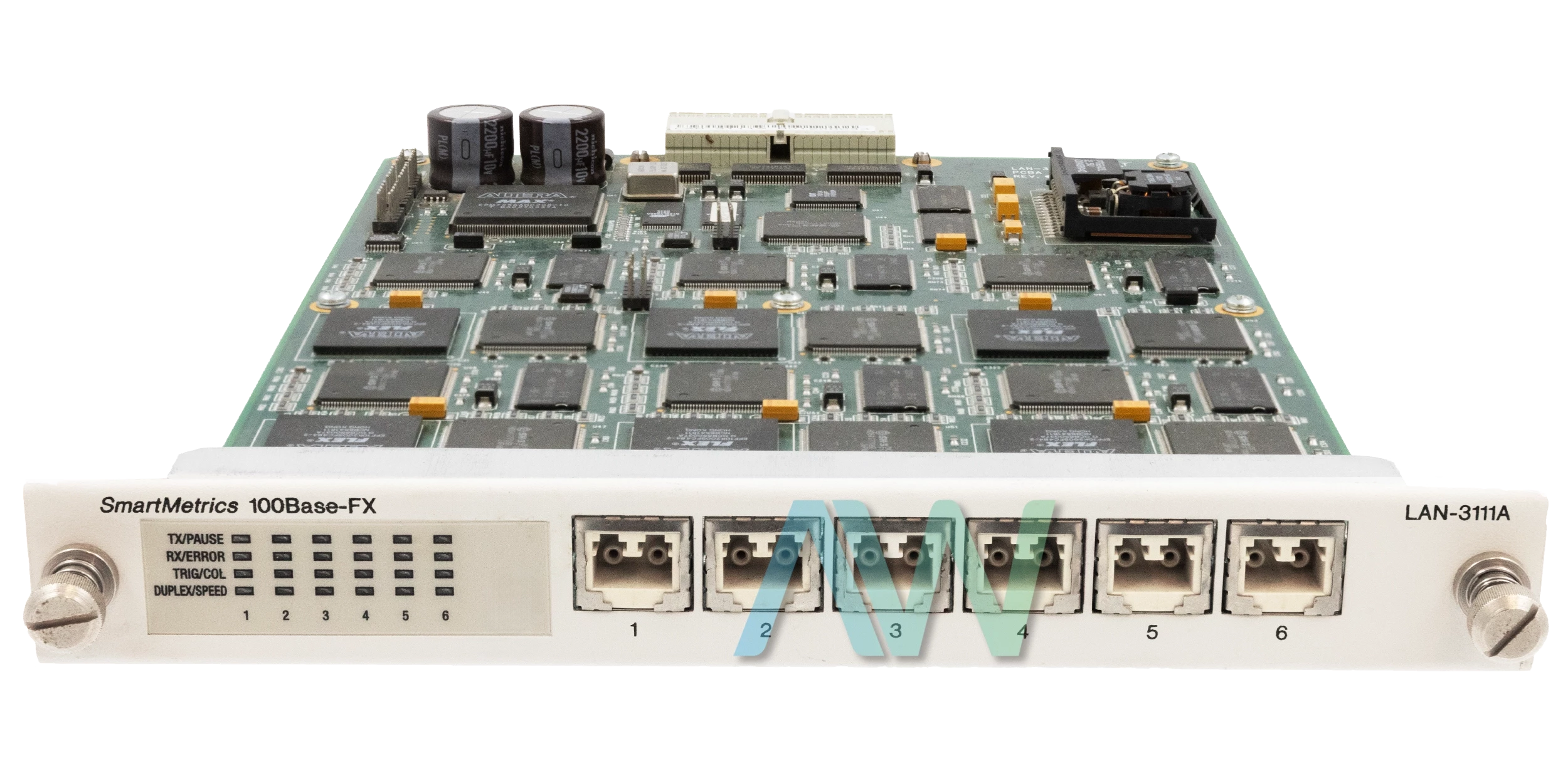

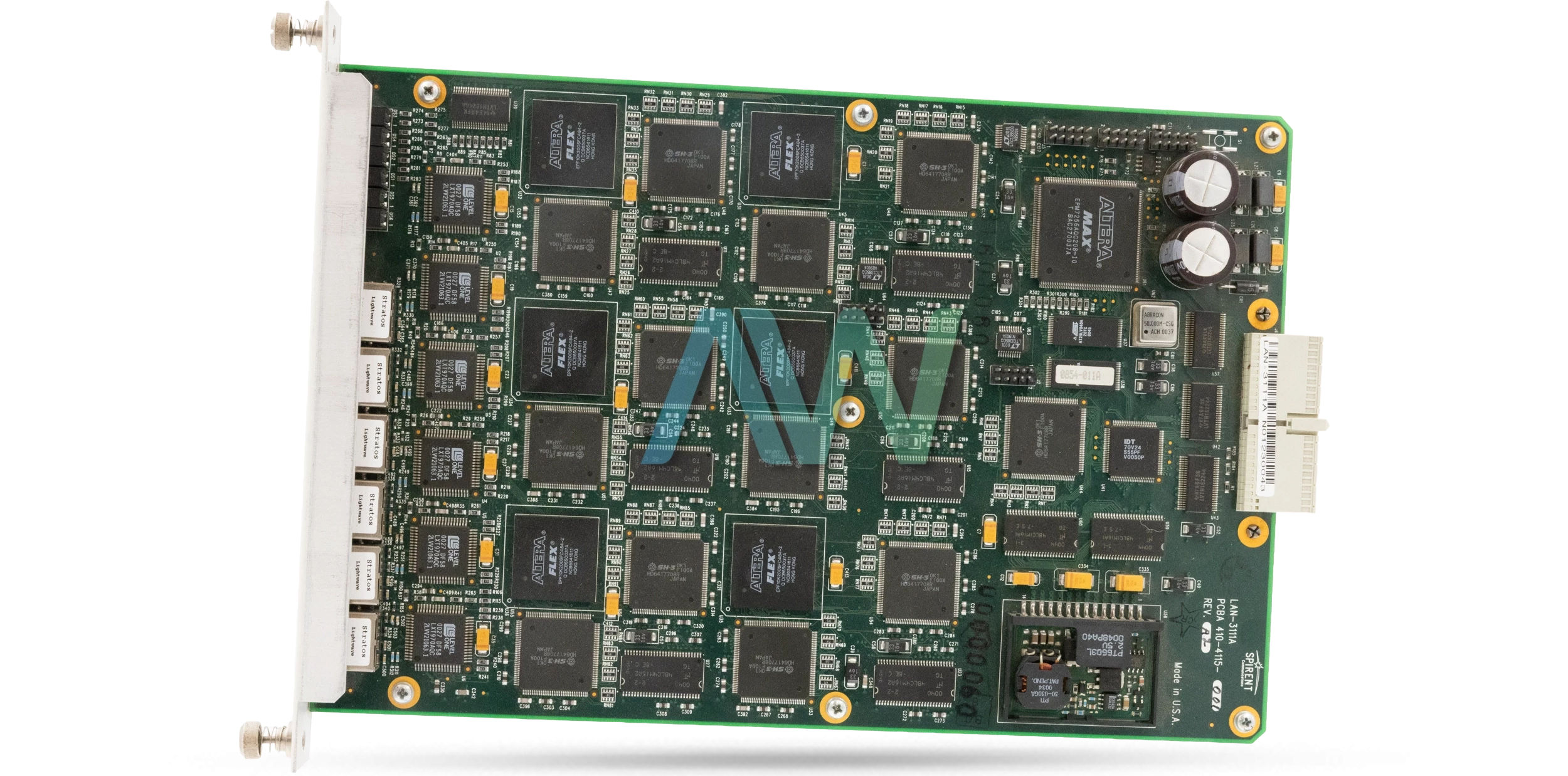

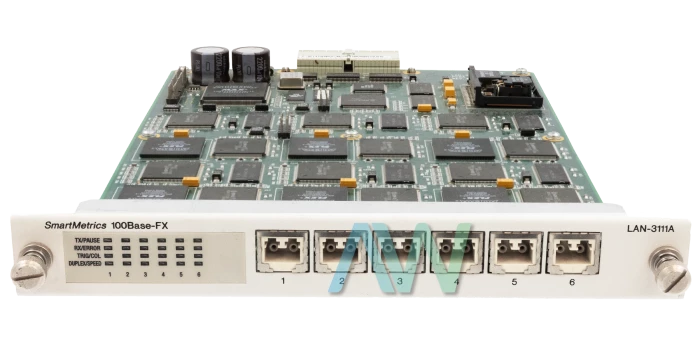

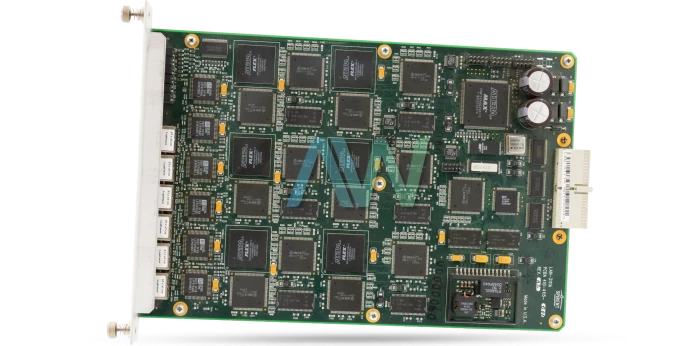

Spirent LAN-3111A Ethernet Fiber SmartMetrics Module
The LAN-3111A is a high-speed Ethernet Fiber SmartMetrics Module. The designer and manufacturer of the LAN-3111A SmartMetrics Module is Spirent Communications. The Spirent SmartBits LAN-3111A fiber module is primarily designed to investigate the working efficiency and integrated operation of Layer 3 network devices. However, the LAN-3111A SmartMetrics Module can also serve the purpose of testing Layer 2 network devices. The LAN-3111A SmartMetrics Module works with the SmartBits SMB-600 and SMB-6000B Performance Analysis Systems. The data traffic generation up to the maximum wire-rate capacity along with the accurate analysis is achievable with the LAN-3111A Ethernet Module.
The LAN-3111A high-speed Fiber Module is an efficient device with a high port density which helps test a small-scale simple one to large-scale complex networks. One of the finest features of the LAN-3111A module is the emulation of realistic live network traffic. Sequence tracks, latency statistics, and variation of the frame in traffic streams can be effectively analyzed with the help of the LAN-3111A SmartMetrics Fiber Module. Moreover, the LAN-3111A module can help perform stress testing of the network devices as well.
The LAN-3111A high-speed SmartMetrics Fiber Module holds 6 ports capable of performing full-duplex operation through a 1300 nm wavelength multimode fiber. The data transmission at a line rate of 100 Mbps and frame length 24 to 1600 bytes with error generation and detection characteristics is accomplished by the SmartBits LAN-3111A high-speed Fiber Module. In stream-based transmission mode, each port of the SmartBits LAN-3111A module transmits a maximum of 1000 streams independently. The physical interface of the SmartBits LAN-3111A module complies with the IEEE 802.3 specifications series.
| Model | LAN-3111A |
|---|---|
| Manufacturer | Spirent Communications |
| Type | Fiber SmartMetrics Module |
| Number of Ports | 6 |
| Compatible Chassis | SMB-600 and SMB-6000B |
| Duplex Operation | Full |
| Line Rate | 100 Mbps |
| Interface type | IEEE 802.3 100Base-FX |
| Connector Type | LC Fiber |
| Laser Wavelength | 1300 nm |
| Transmit Frame Length | 24 – 1,600 bytes |
| LAN-3111A User Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
