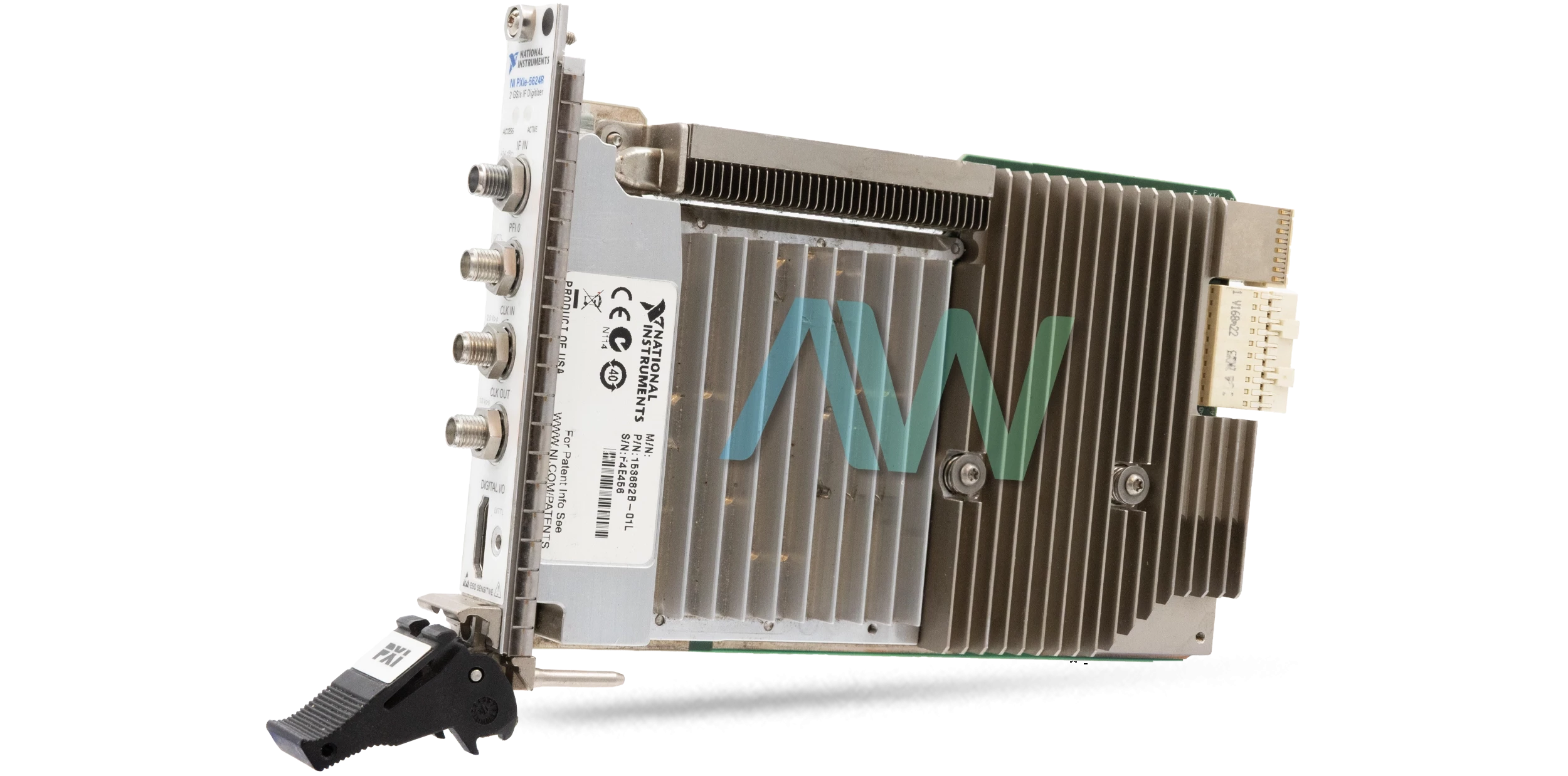

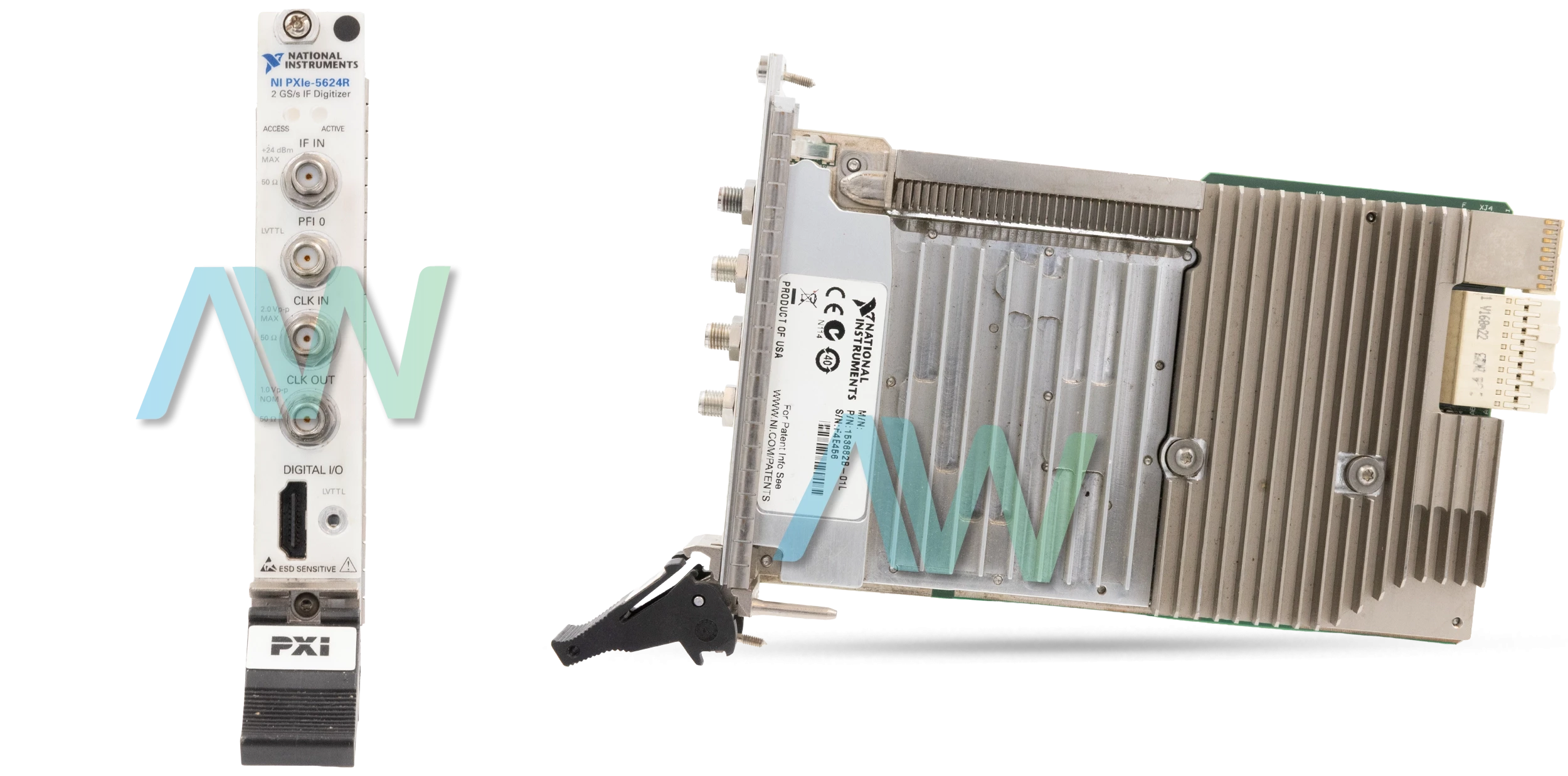

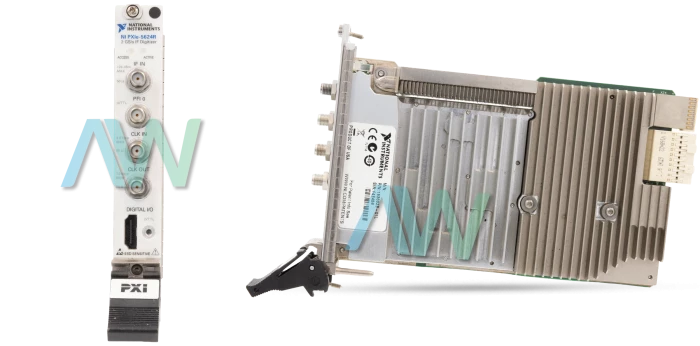

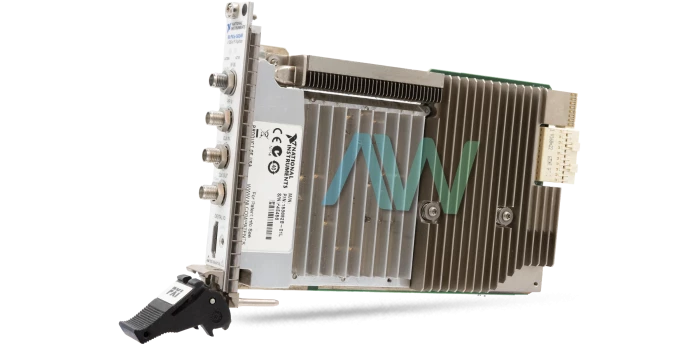

National Instruments 783132-01 PXI IF Digitizer
Part number 783132-01 from National Instruments is the descriptive part number for the PXIe-5624 IF Digitizer. Designed for use as either an independent IF digitizer or as a component of a PXI Vector Signal Analyzer, the flexible 783132-01 is an excellent addition to test setups of all sizes. Boasting 12 bits of resolution and a sample rate of 2 GS/s, this digitizer is designed with a PXIe x8 Gen 2 bus. With 2 GB of onboard DRAM, the 783132-01 is an excellent fit for a wide range of applications.
The 783132-01 is equipped with a powerful Xilinx Kintex-7 XC7K410T FPGA that features 28,620 kbits of embedded block RAM. 32 DMA channels facilitate quick and precise data transfers with a theoretical max data rate of 6.4 GB/s.
The power requirements of the 783132-01 depend on the voltage rail used. A voltage of +3.3 VDC draws in a typical current of 2.45 A and a maximum current of 2.75 A. On the other hand, a voltage of +12 VDC typically draws in a current of 1.95 A and draws in a maximum of 2.2 A.
Designed for indoor use only, the 783132-01 should only be used in temperatures ranging from 0 °C to 55 °C. When not in use, it is safe to store the device in an even wider temperature range spanning from -40 °C to 71 °C. The compact one slot 783132-01 has dimensions of 21.6 cm × 2.0 cm × 13.0 cm (8.5 in. × 0.8 in. × 5.1 in.) and weighs only 454 g (16.0 oz).
| Part Number | 783132-01 |
|---|---|
| Model Name | PXIe-5624 |
| Memory Size | 2 GB |
| Channels | 8 DIO Channels |
| FPGA | Xilinx Kintex-7 XC7K410T |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -40 °C to 71 °C |
| Dimensions | 21.6 cm × 2.0 cm × 13.0 cm (8.5 in. × 0.8 in. × 5.1 in.) |
| Weight | 454 g (16.0 oz) |
| Warranty | Three Year Warranty |
| Manufacturer | National Instruments |
