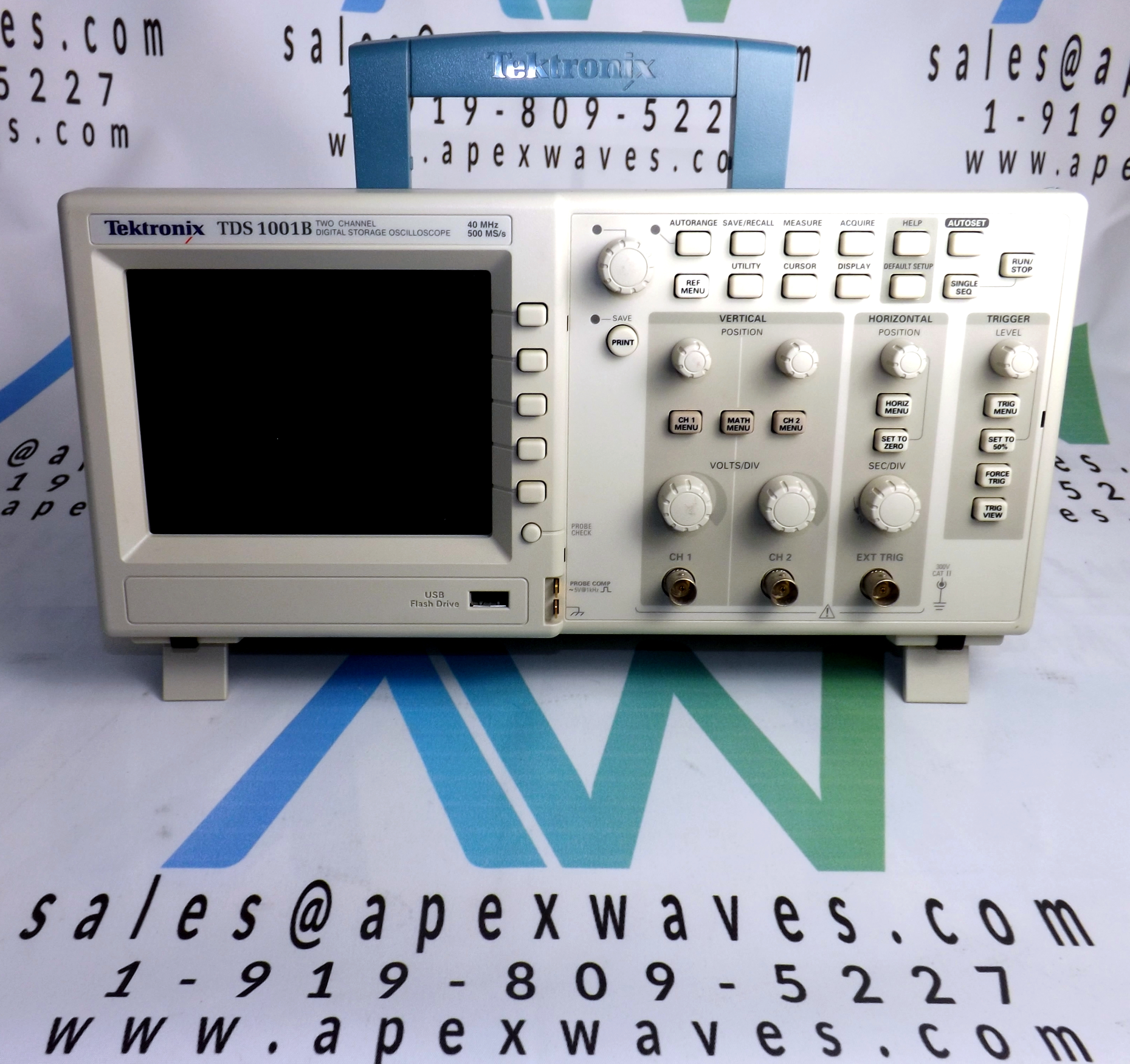

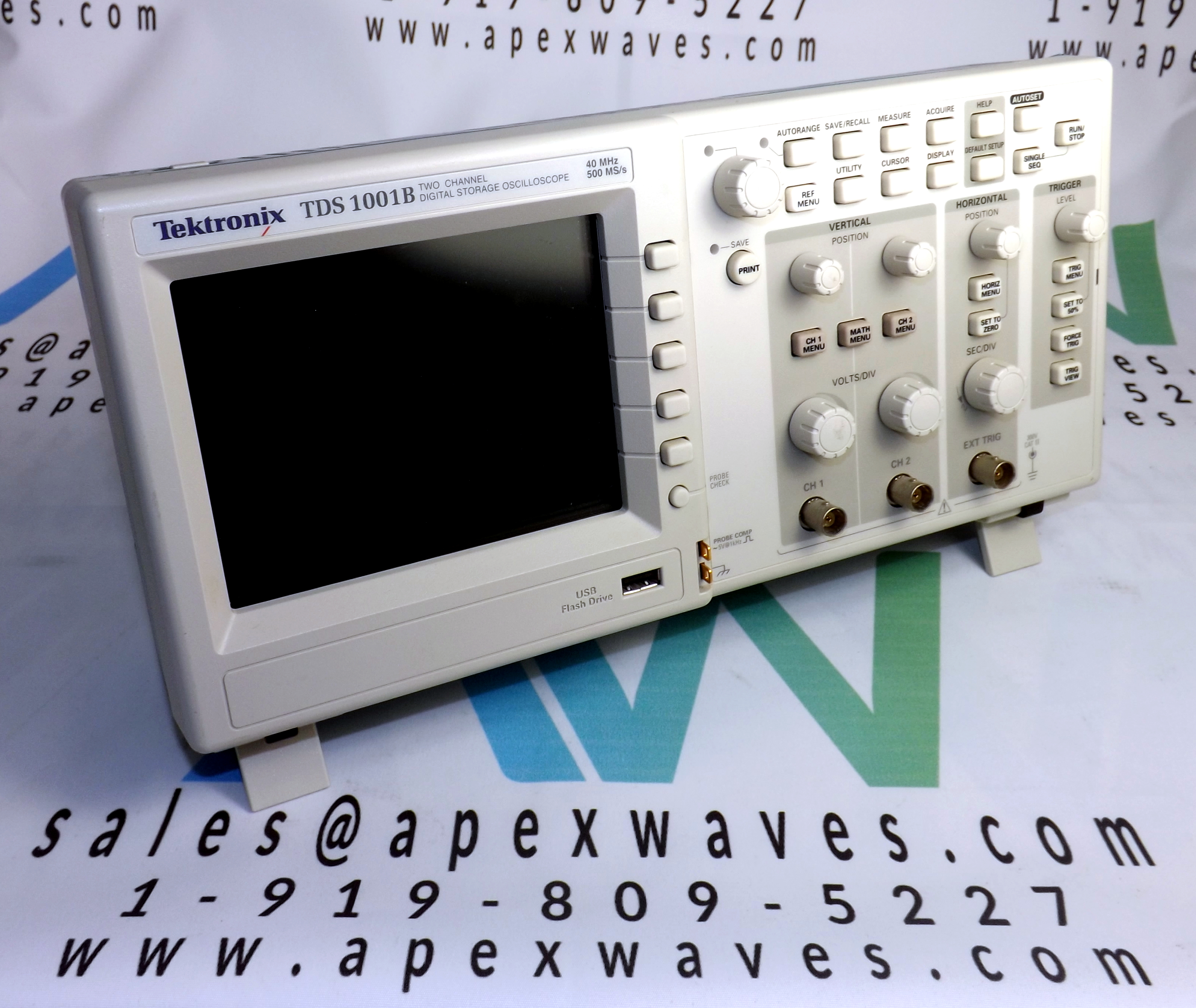

Tektronix TDS1001B Digital Storage Oscilloscope
The TDS1001B Digital Storage Oscilloscope created by Tektronix has two available analog channels, a monochrome LCD display, 12 automatic measurements, equivalent record lengths at every time base setting, and FFT standard. The Tektronix TDS1001B is great for applications such as: education and training, service and repair, manufacturing test and quality control, and design and debug. The TDS1001B has a bandwidth of 40 MHz, a sample rate of 500 mS/s on every channel, a time base range of 50 ns to 50 s/div, and a record length of 2.5k points at all time bases on every channel.
The TDS1001B Oscilloscope has several connection and storage options. This oscilloscope has the capability of effortlessly connecting with a PC by way of the USB device port, utilizing the OpenChoice and NI SignalExpress PC Software. The TDS1001B can also print directly to any PictBridge-compatible printers with the USB device port and USB flash drives can be inserted into the USB port on the front side of the model. National Instruments SignalExpress Tektronix Edition Software is another useful software program installed on this model. It allows the user to perform advanced assessments, control their oscilloscope remotely, and also assess waveforms live.
The TDS1000B series has the ability to combine with the AFG3000 Series arbitrary function generator. This unique combination will result in a tool with the abilities of a function generator with the extraordinary power of an arbitrary waveform generator. It provides the high-performance necessary for precisely validating, confirming, and characterizing designs competently at an economical price.
| Model | TDS1001B |
|---|---|
| Manufacturer | Tektronix |
| Series | TDS1000B |
| Type | Digital Storage Oscilloscope |
| Bandwidth | 40 MHz |
| Channels | Two analog |
| Sample Rate | 500 mS/s on every channel |
| Record Length | 2.5k points on every channel |
| TDS1001B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for TDS1001B:
Tektronix TDS1001B Digital Storage Oscilloscope- FAQ:
Question:
What is the largest size USB flash drive that the TDS1001B can use?
Answer:
The maximum supported USB flash drive is 64GB.
Question:
Why do the math calculations work differently on my TDS200 compared to my newer TDS1001B Oscilloscope?
Answer:
The older models used a Display Math method, which calculated the math on the screen values of the signals, in divisions. The newer models use a Data Math method, which is calculated on the data value, instead of the value shown on-screen.
Question:
How many front-panel setups can be stored on the TDS1001B using a USB flash drive?
Answer:
4,000 or more front-panel setups can be stored for every 8 MB, while using a USB flash drive.
Question:
What waveform math functions are available on the TDS1001B Oscilloscope?
Answer:
Addition, subtraction, and multiplication are on the TDS1001B.
Question:
What is the weight of the TDS1001B Oscilloscope?
Answer:
The TDS1001B weighs around 4.4 lb.
