TDS3054
Digital Phosphor Oscilloscope with 4 channels
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

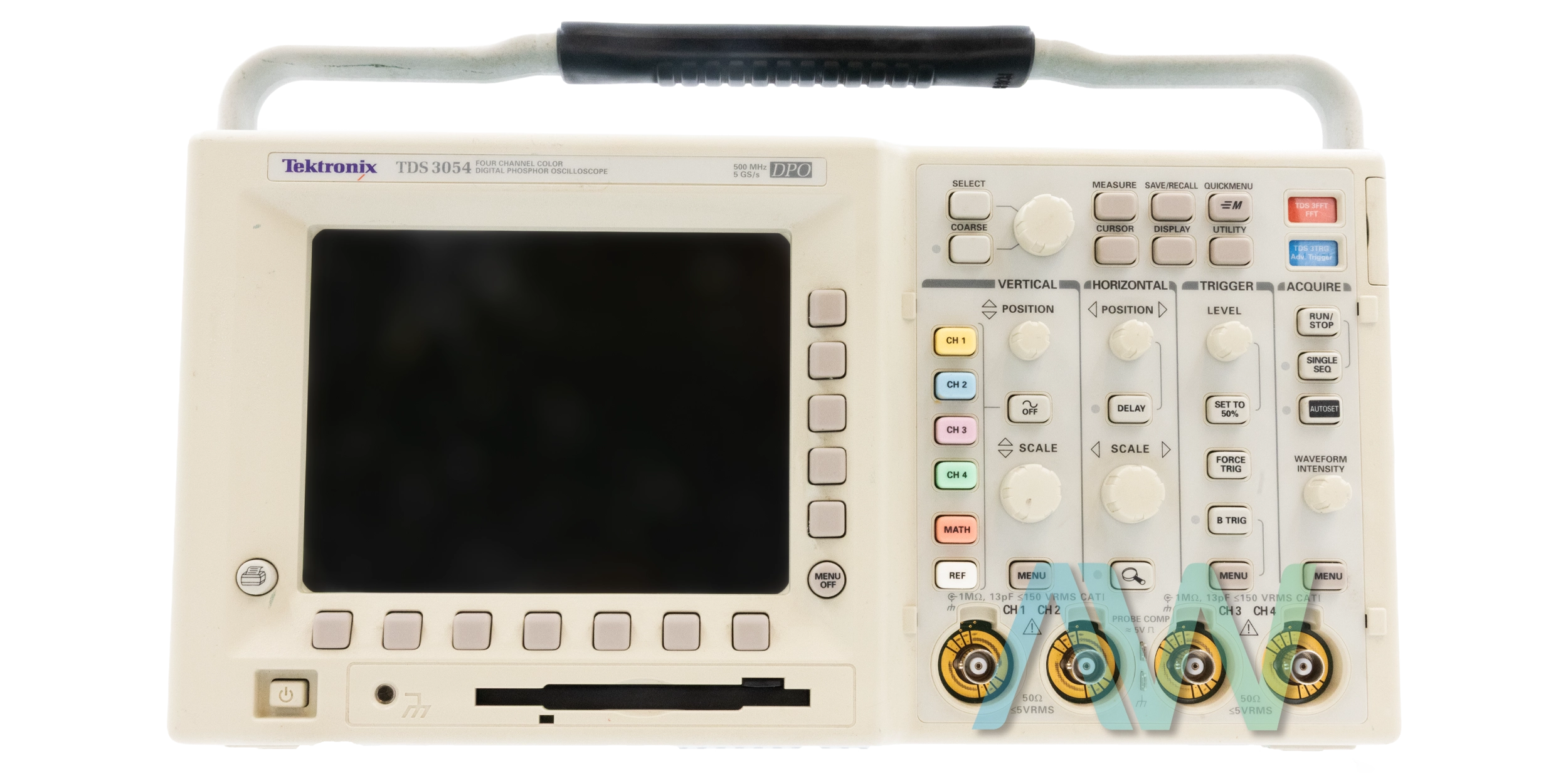

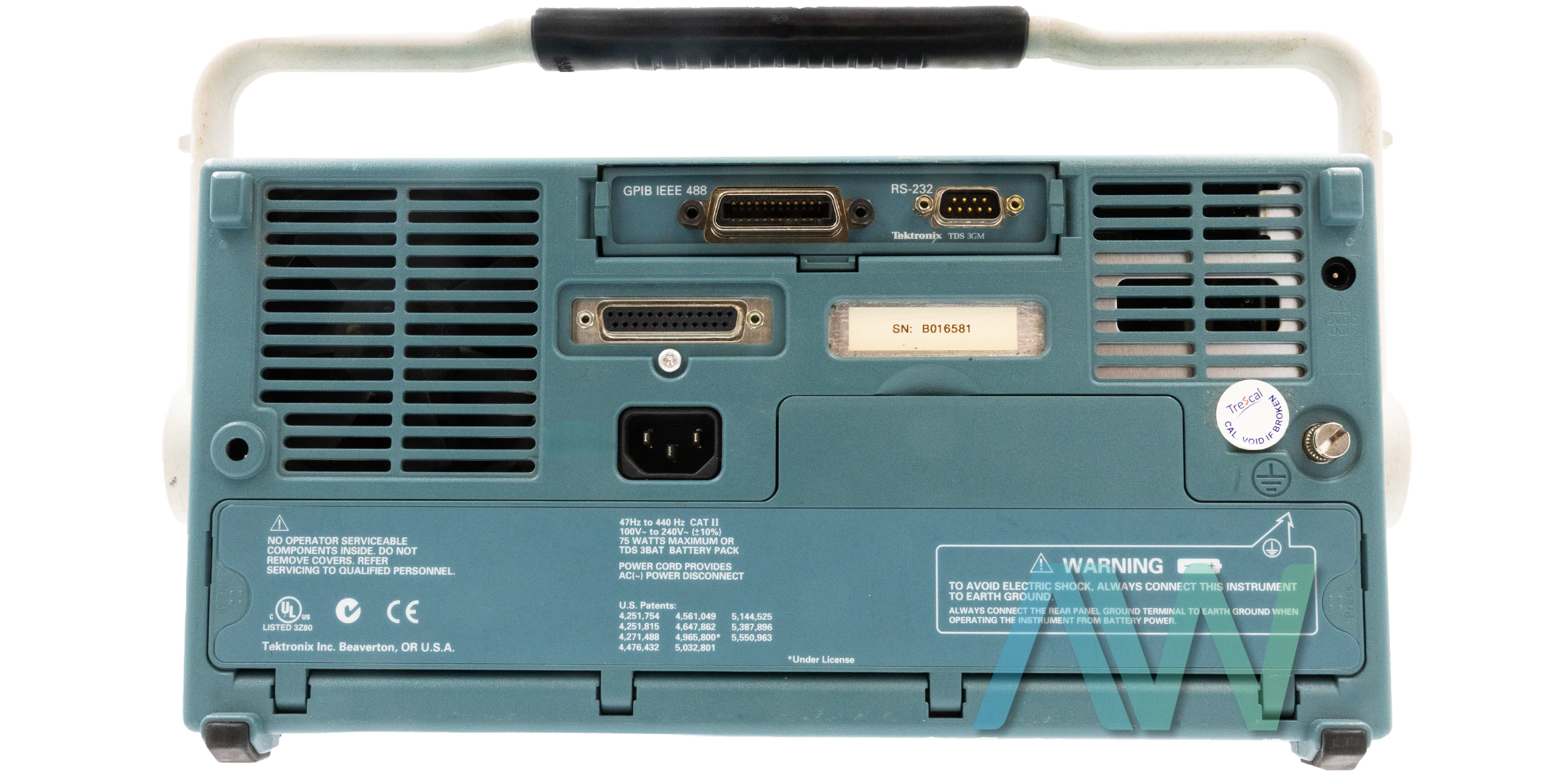

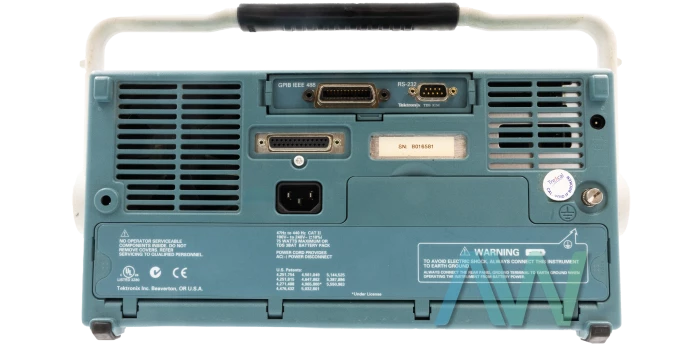

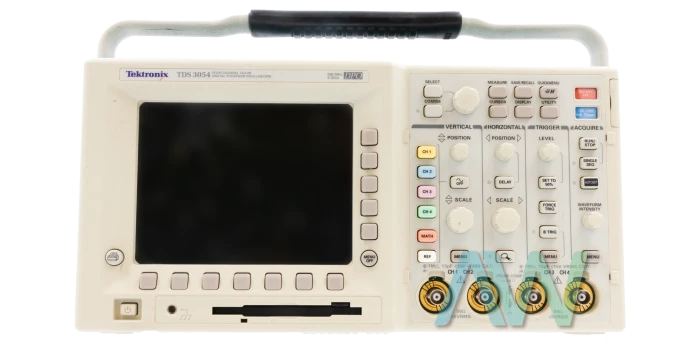

Tektronix TDS3054 Oscilloscope
The Tektronix TDS3054 Digital Phosphor Oscilloscope has a 5 GS/s Sample Rate and a Bandwidth of 500 MHz, making it one of the most economic and compact Digital Phosphor Oscilloscopes (DPOs). Presently, every specialist and expert can exploit the gigantic advantages of the Tektronix TDS3054. DPOs deliver another level of insight that makes managing complex signals simple. DPOs show, store, and analyze in real-time three measurements of signal information: amplitude, time, and distribution of amplitude over time. This model offers 21 automatic measurements, a built-in Floppy Disk Drive for easy storage and documentation, a full VGA Color LCD, a Centronics Port for quick and convenient hardcopies, an optional Telecommunications Mask Testing (TMT) module, and Fast Fourier Transform (FFT) for frequency and harmonic analysis.
The Tektronix TDS3054 has an intensity graded color display that provides data regarding the frequency of occurrence of signal amplitudes and widths. This enables the client to find and describe waveform peculiarities that can be elusive on conventional Digital Phosphor Oscilloscopes. The quick update rate of the Tektronix TDS3054 additionally makes it less demanding to catch and show occasional waveforms or waveform variations, it is quick to learn and quick to use.
In this model, the user can utilize the cursors to take brisk estimations on a waveform and to estimate the ring frequency at the rising edge of the signal. Additionally, if the user is analyzing a pulse waveform, they can utilize the + Width estimation to measure the waveform beat width.
The manual for this model is available on the ApexWaves.com website.
| Model | TDS3054 |
|---|---|
| Manufacturer | Tektronix |
| Series | TDS3000 |
| Type | Oscilloscope |
| Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 5 GS/s |
| TDS3054 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
