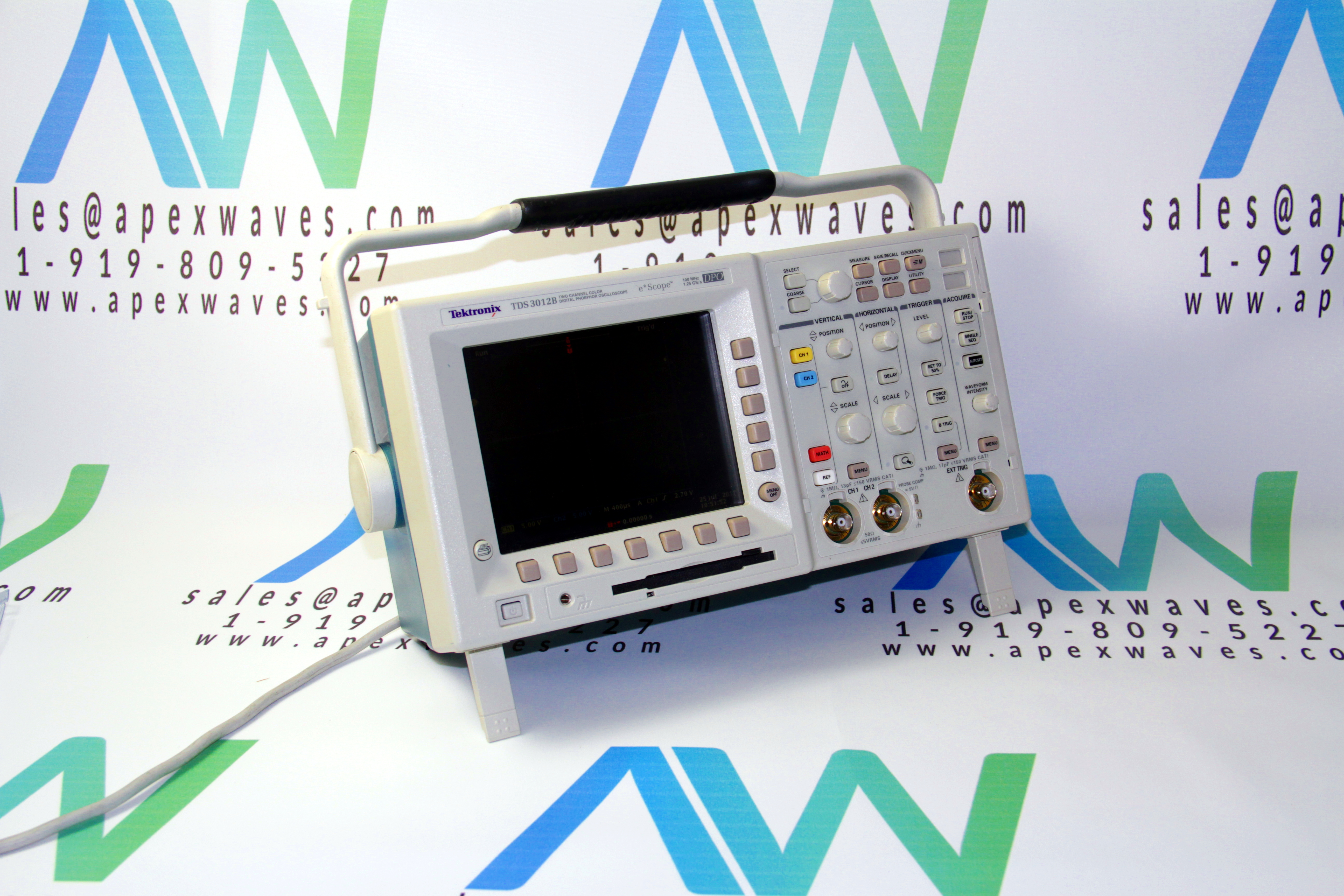

Tektronix TDS3024B Digital Phosphor Oscilloscope
The Tektronix TDS3024B has a 200 MHz Bandwidth and 4 Channels. This Digital Phosphor Oscilloscope packs the energy of advanced phosphor waveform acquisition innovations, programmed anomaly identification, web based remote control and 7 application-particular modules into a lightweight, battery-capable instrument.
Advanced phosphor oscilloscopes show, store, and investigate three measurements of signal data: amplitude, time, and distribution of amplitude after some time. Quick waveform capture and refresh rates make it less demanding to catch and show occasional waveforms or waveform varieties. The intensity graded color display provides data about the recurrence signal amplitudes and widths. This encourages the user to find and describe waveform inconsistencies that can be subtle on conventional advanced storage oscilloscopes.
This model includes Advanced Triggering. When this module is introduced in the oscilloscope, an advanced trigger menu is added to the oscilloscope with extra logic and pulse triggering capacity. In this model, Logic Triggering is extremely valuable in the investigation of advanced circuits. The oscilloscope is activated when two signals meet a Boolean trigger condition. This module gives pattern and state logic trigger modes. The Pattern Triggering is valuable for computerized logic investigation and triggers the oscilloscope when two signals turn out to be logically true or false. Fundamentally, the example activating component triggers the oscilloscope from the output of a two-input AND, OR, NAND or NOR rationale entryway. The user can determine time requirements and signal limit levels as a component of the triggering condition.
You can find the manual for this model on the ApexWaves.com website.
| Model | TDS3024B |
|---|---|
| Bandwidth | 200 MHz |
| Channels | 4 |
| Sample rate on each channel | 2.5 GS/s |
| Maximum record length | 10 K points |
| Vertical Resolution | 9 Bits |
| Vertical Sensitivity | 1 mV – 10 V |
| Vertical accuracy | ±2% |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position range | ± 5 div |
| BW limit | 20, 150 MHz |
| Input coupling | AC, DC, GND |
| Input impedance selections | 1 MΩ in parallel with 13 pF or 50 Ω |
| Time Base Range | 2 ns – 10 s/div |
| Time Base Accuracy | 20 ppm |
| Display (VGA) | Color active matrix LCD on all models |
| TDS3024B | TDS3000B Series Electrical Characteristics |
Associated part numbers for TDS3024B:
TDS3024B Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3024B oscilloscope. Application packages can be installed by the user.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3024B oscilloscope. Application packages can be installed by the user.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3024B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3024B Tektronix oscilloscope modules.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For use with the TDS3024B .
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3024B Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3024B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual. TDS3024B
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. TDS3024B
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation. TDS3024B
How-to Troubleshoot the TDS3024B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
