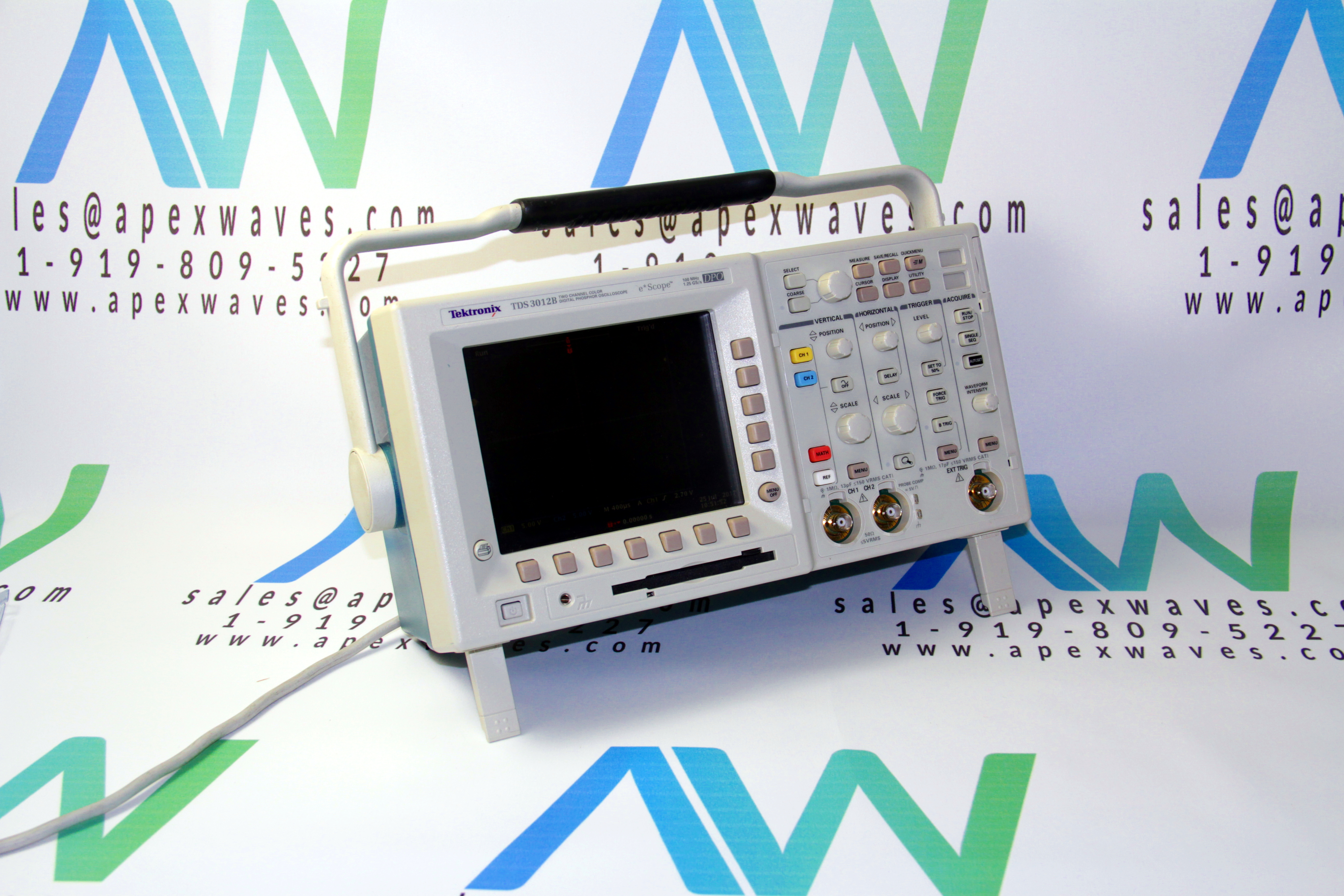

Tektronix TDS3032B Digital Phosphor Oscilloscope
The Tektronix TDS3032B Digital Phosphor Oscilloscope has a lightweight and minimal size and includes a battery pack. This oscilloscope is portable and weighs just 5.2 kilograms, with the battery included. The user can utilize the optional plug-in thermal printer if they would like to instantly document their work, even in the field. The TDS3032B oscilloscope can be easily adapted to the user’s unique needs through optional application modules that are easy to install.
Average application for the TDS3032B Module: when testing system line cards in assembling, a standout amongst the most important considerations is throughput. The blend of DPO waveform throughput and equipment assisted mask testing results speeds for mask testing on single and different channel gadgets. ALT trigger mode empowers fast testing on different channels by activating on all diverts successively in a solitary setup.
The TDS3032B module adds advanced analysis capacity to the TDS3000 Series oscilloscope. With this function, you can characterize waveforms as subjective math expressions – including a huge variety of numerical functions in addition to constants and estimations. The TDS3AAM module likewise includes Area and Cycle Area estimations, separation and reconciliation capacities, estimation averaging, and estimation insights. The FFT abilities of the TDS3032B module are likewise included.
In the plan or examination of energy supplies, it is imperative to check the harmonics in the power supply's load current. Utilizing the oscilloscope's cursors, you can estimate the recurrence and magnitude of the individual recurrence parts.
This model has a Data Transfer Capacity of 300 MHz, Test Rate on Each Channel of 2.5 GS/s, BW limit of 150 MHz, and a Time Base Range of 2 ns to 10 s/div.
| Model | TDS3032B |
|---|---|
| Bandwidth | 300 MHz |
| Channels | 2 |
| Sample rate on each channel | 2.5 GS/s |
| Maximum record length | 10 K points on all models |
| Vertical Resolution | 9 Bits on all models |
| Vertical Sensitivity | 1 mV – 10 V on all models |
| Vertical accuracy | ±2% on all models |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position range | ± 5 div on all models |
| BW limit | 20, 150 MHz |
| Input coupling | AC, DC, GND on all models |
| Input impedance selections | 1 MΩ in parallel with 13 pF or 50 Ω on all models |
| Time Base Range | 2 ns – 10 s/div |
| Time Base Accuracy | 20 ppm on all models |
| Display (VGA) | Color active matrix LCD on all models |
| TDS3032B | Digital Phosphor Oscilloscopes TDS3000B Series |
Associated part numbers for TDS3032B:
TDS3032B Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3032B oscilloscope. Application packages can be installed by the user.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3032B oscilloscope. Application packages can be installed by the user.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3032B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope TDS3032B Programmer Manual.
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3032B specifications Tektronix oscilloscope modules. More information available in the TDS3032B programmer service manual.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For more information on TDS3032B firmware, ethernet and modules reference the TDS3032B manual PDF.
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3032B firmware Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3032B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Manual TDS3032B.
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. TDS3032B Specifications.
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation. Source: TDS3032B PDF
How-to Troubleshoot the TDS3032B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
