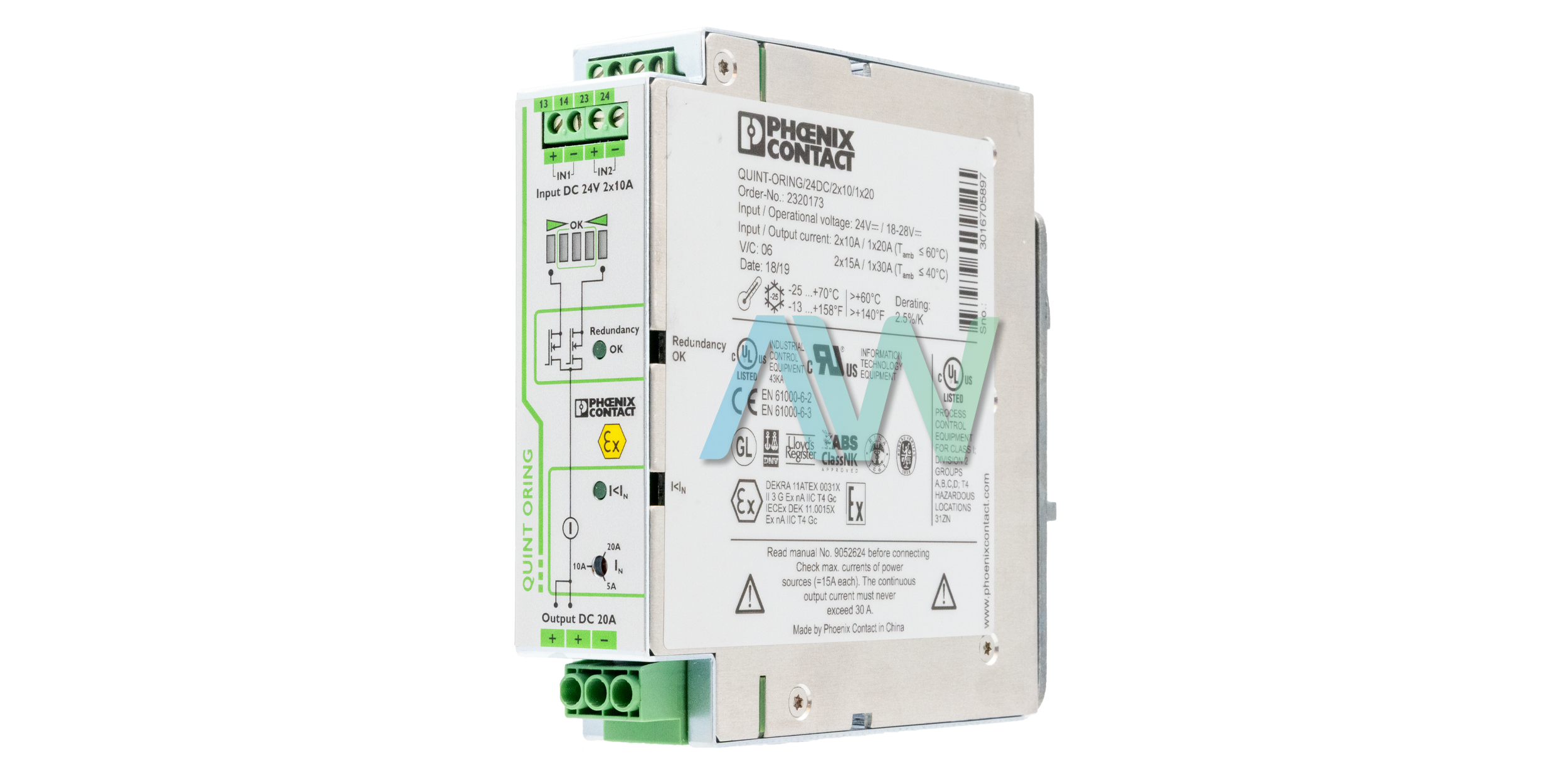

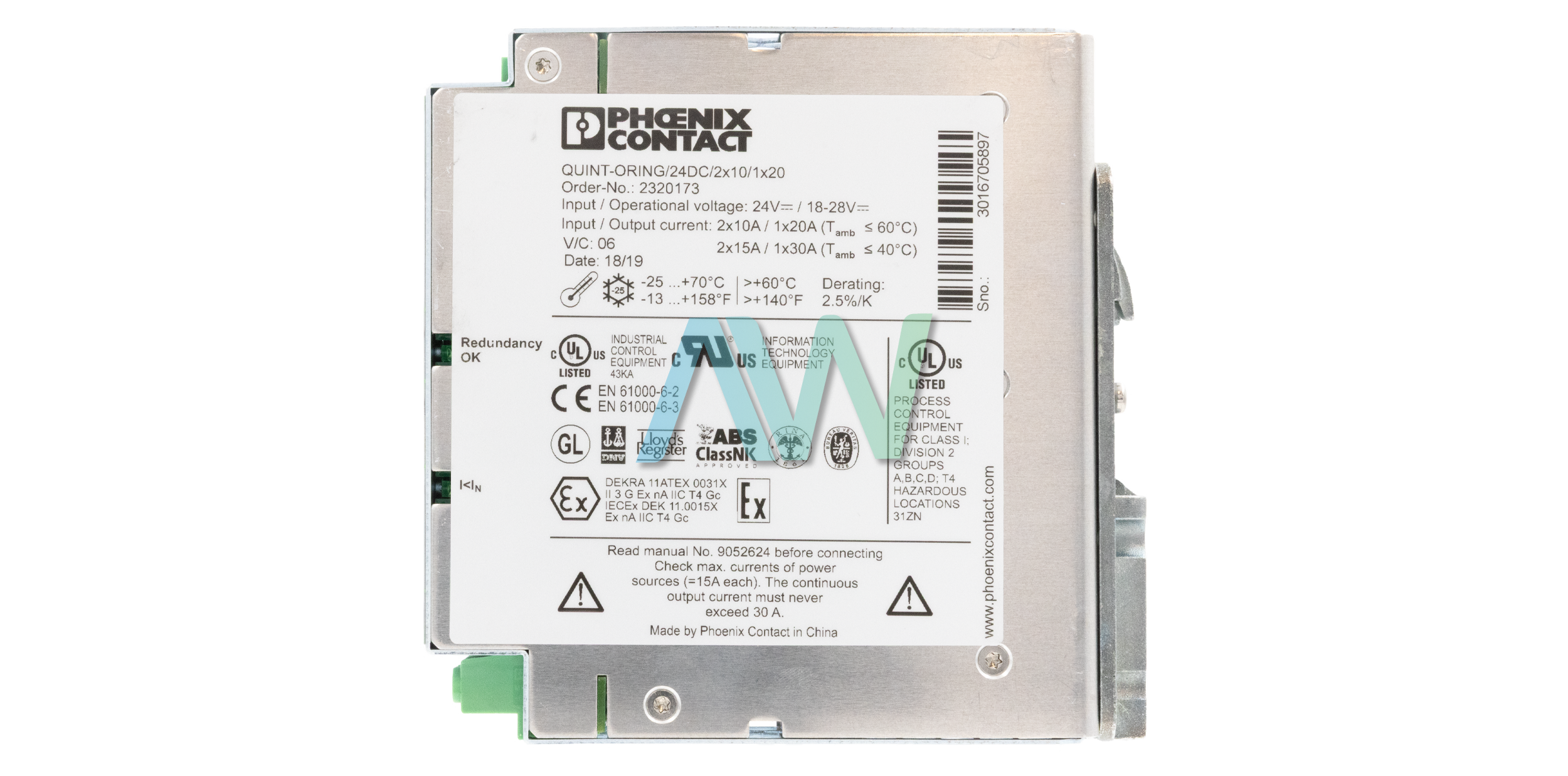

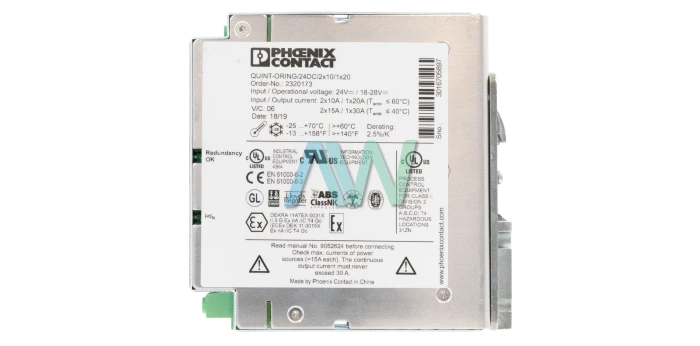

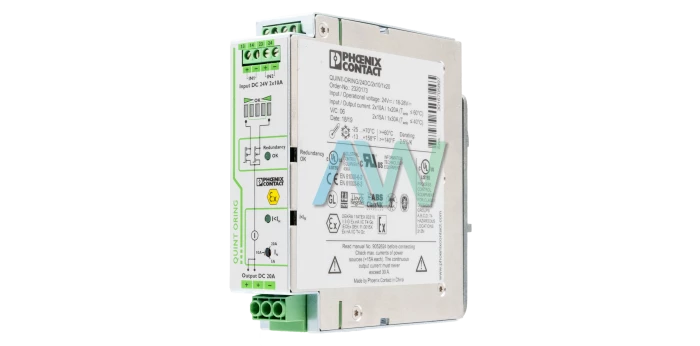

Phoenix Contact QUINT-ORING Redundancy Module
Phoenix Contact's QUINT-ORING Redundant Power Supply Module is designed for creating redundant 24 Vdc power systems that are fault tolerant. This module can be used as a solution to provide continuous power when an application cannot afford a loss of power. The module will accept two separate 24 Vdc power supplies and combine them into a single power supply with a high level of reliability. If the first power supply fails, the second power supply will be switched to automatically and instantly without a delay in operation to continue running critical loads in control cabinets, process automation, manufacturing equipment and other applications.
One of the most important features of the QUINT-ORING is its use of auto current balancing (ACB). ACB automatically balances the current between the two power supplies that are connected. The result of using ACB is that neither of the power supplies will become overloaded. An extended life cycle of the power supply and increased energy efficiency are the results of using this method of balancing the current between the two power supplies. In addition to providing ACB, the module also includes LED indicators for visual status indication and relay contact signals for "Redundancy OK" and "ACB OK". These indicators enable users to monitor remotely and quickly identify faults so they can perform their required maintenance efficiently.
The QUINT-ORING has been built for harsh industrial environments. The module has a rugged metal enclosure that has a durable finish and is rated to meet IP20. The module is able to operate over a broad temperature range from -25° C to +70° C. At maximum load, the module has a low voltage drop of only .2 Volts. As a result of the low voltage drop, the module has the ability to maximize available power to all the devices on your system. The module has received multiple certifications from many international organizations such as; UL, ATEX, and IECEx. All these certifications indicate that the module can safely be used in many different types of industrial applications and some hazardous areas. Due to the modules DIN rail mountable design, the module is easy to install and is an excellent way to add reliability to any system.
| Model | QUINT-ORING |
|---|---|
| Part Type | DC Redundancy Module |
| Input Voltage | 18–28 V DC (24 V nominal) |
| Input Current | 2×20 A or 1×40 A |
| Peak Current | 120 A (12 ms, SFB) |
| Output Rating | 24 V DC − 0.2 V, up to 40 A |
| Efficiency | >98% |
| Voltage Drop | ~0.2 V at 40 A |
| Protection | Reverse polarity, surge (varistor), OVP <32 V |
| Mounting | DIN-rail (NS 35) |
