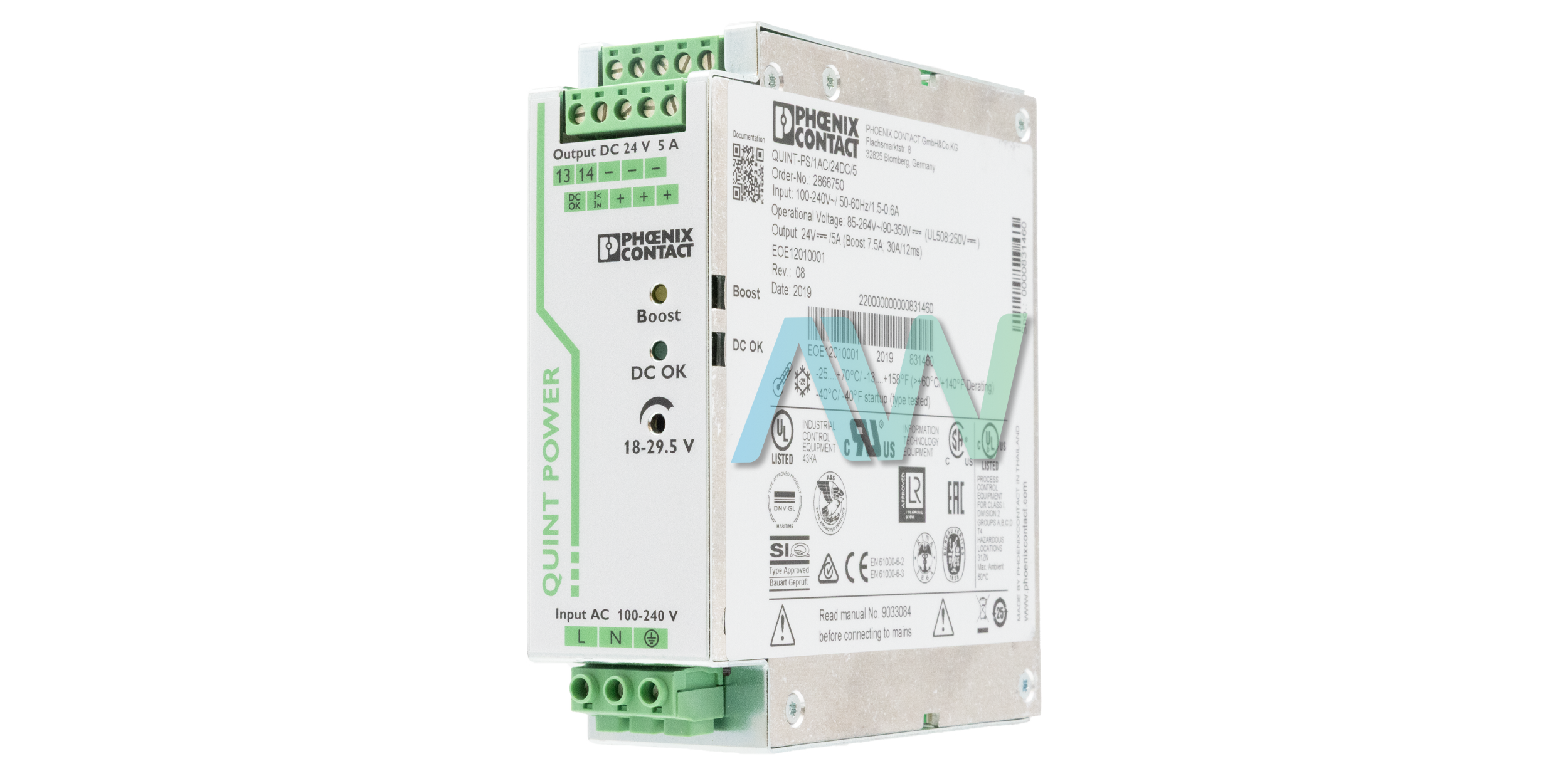

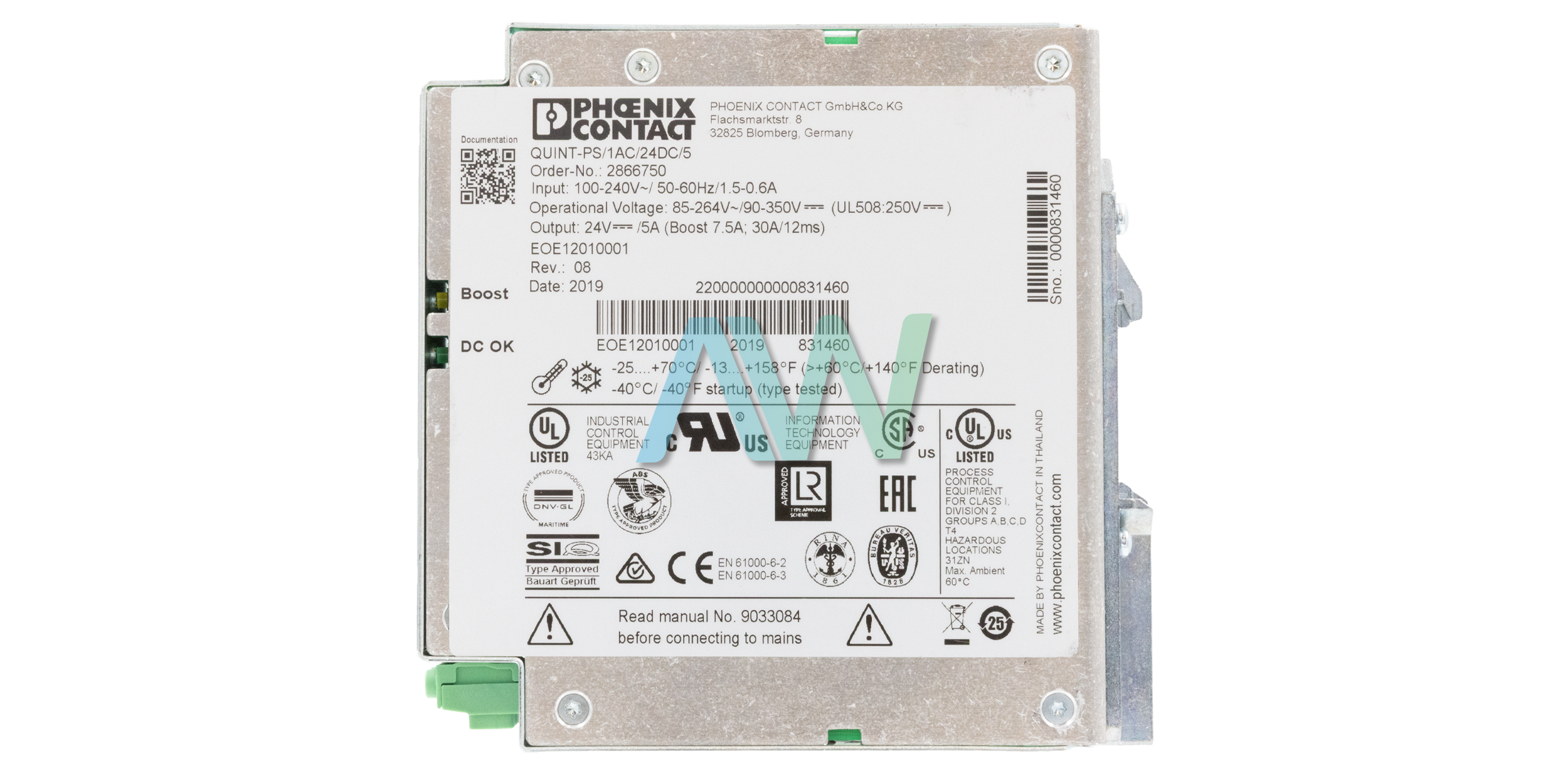

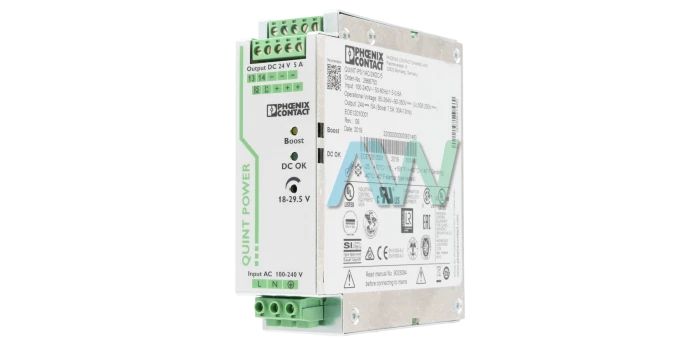

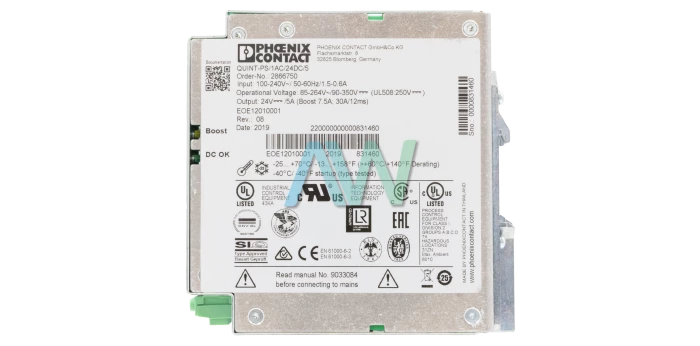

Phoenix Contact QUINT-PS Power Supply Unit
The QUINT-PS power supply unit from Phoenix Contact delivers controlled industrial power conversion in systems that require stable output under fluctuating input conditions and it operates with a primary switched design which ensures efficient energy processing. This unit provides essential capabilities for modern control equipment that must maintain operational integrity. This power supply QUINT-PS offers an input range from 85 to 264 V AC for broad installation flexibility and it also accepts a DC input between 90 and 350 V to increase application coverage. It maintains a power factor of 0.89 to support efficient system usage and its inrush current remains below 20 A during energization to protect upstream distribution components. The output section this power supply provides a regulated 24 V with 1% accuracy under rated loading. It supplies 20 A continuously and supports POWER BOOST mode for elevated current demand. The SFB function delivers up to 120 A for 12 ms to trip circuit breakers. Its voltage adjustment range spans 18 to 29.5 V for controlled system integration.
The QUINT-PS device includes active and floating signaling outputs that report output stability and boost operation. Its DC OK function uses LED indicators that notify operators about normal or reduced output levels. The relay contact supports 1 A continuous load which simplifies integration into monitoring architectures. It’s signaling design ensures precise status evaluation which enables timely action in critical automation processes.
The enclosure of the QUINT-PS power supply uses metal construction that ensures durability in environments with vibration or thermal cycling. Its protection class IP20 rating supports installation inside controlled panels used across industrial control applications. The unit’s mounting design supports DIN rail systems and maintains required spacing for thermal stability and safety. It withstands shock levels up to 30 g to support deployment in demanding automation zones. Its vibration resistance follows industry standards that maintain consistent performance during mechanical system activity. The QUINT-PS device holds certification of major safety standards that govern industrial power conversion equipment design. Its compliance profile includes approvals for marine sectors and across industries. The thermal management strategy of this QUINT-PS supply uses efficient internal design that reduces power loss during full load operation. The no load power dissipation remains 8 W that helps in reducing unnecessary energy consumption. The overall efficiency reaches above 90% which improves system performance in continuous duty applications.
| Model | QUINT-PS |
|---|---|
| Manufacturer | Phoenix Contact |
| Part Type | Power Supply Unit |
| Nominal Voltage Range | 100–240 V AC |
| Derating | Static boost derating below 100 V AC (1% per volt) |
| Inrush Current | Less than 20 A |
| Mains Buffering Time | 32 ms at 230 V AC |
| Nominal Power Consumption | 569 VA |
| Protective Circuit | Varistor surge protection |
| Response Time | Less than 0.6 s |
