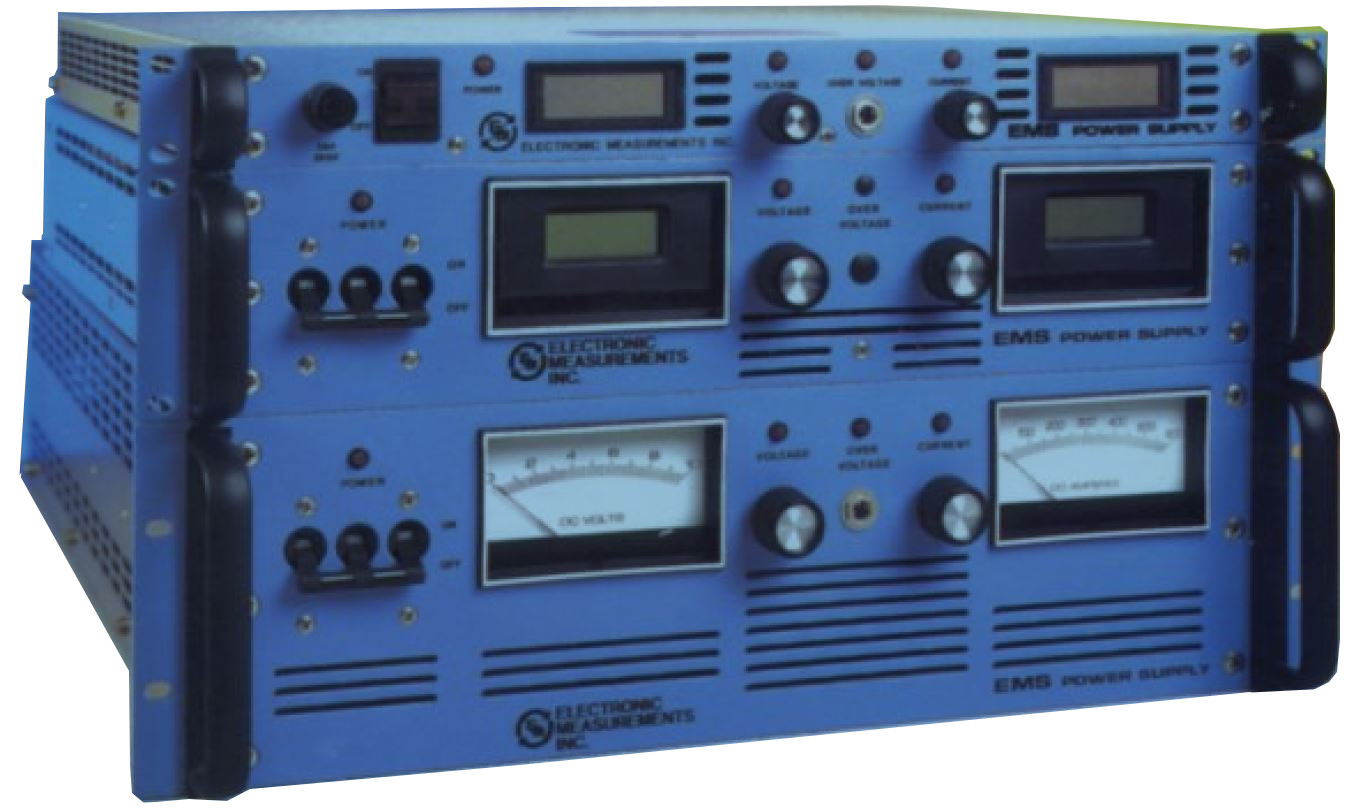

TDK Lambda EMS 15-300-2-D Power Supply
With the TDK Lambda EMS 15-300-2-D Power Supply, the user can work with more than three EMS power supplies in parallel without a full assessment by the user, with advice from the Engineering Department from Electronic Measurements, Inc. This will assist to evade any application failure because of the precariousness and OVP of the power supply. The simplest parallel connection is that of interfacing positive and negative terminals to their particular charging points.
The Operation Master/Slave setup permits the client to utilize two or more supplies as a single unit. The master power supply controls the output voltage through the load. The supply that is designated the by master ought to be set a voltage higher or equivalent to that of the slave. The voltage of the slave will be determined by RX Remote Meters. A remote voltmeter might be associated between TB1/J1-2 (positive) and TB1/J1-7 (negative). Assuming that remote sensing is also being used, the remote voltmeter will demonstrate the voltage during the load. To show the voltage during the power supply output terminals, the client should connect the remote voltmeter between terminals TB1/J1-1 (positive) andTB1/J1-8 (negative).
A remote millivolt meter could be connected between terminals TB1/J1-12 (negative) and TB1/J1-13 (positive). A voltage between 0 to 100 mV across these terminals demonstrates output current from zero to full rating, unless otherwise specified. To adjust for voltage drops alongside long remote ammeter leads, a meter movement having a full scale sensitivity of less than 100mV may be utilized in series with a calibrating resistor.
The manual for this model is available on the ApexWaves.com website.
| Model | EMS 15-300-2-D |
|---|---|
| Manufacturer | TDK Lambda |
| Series | EMS |
| Type | DC Power Supply |
| Voltage | 15 Volts maximum |
| Current | 300 Amps maximum |
| Operating Temperature | 0 to 50 degrees C |
| EMS 15-300-2-D Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
