EMS 40-125-2-D
EMS DC Power Supply 0-40V@ 0-125A Digital Regulated
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

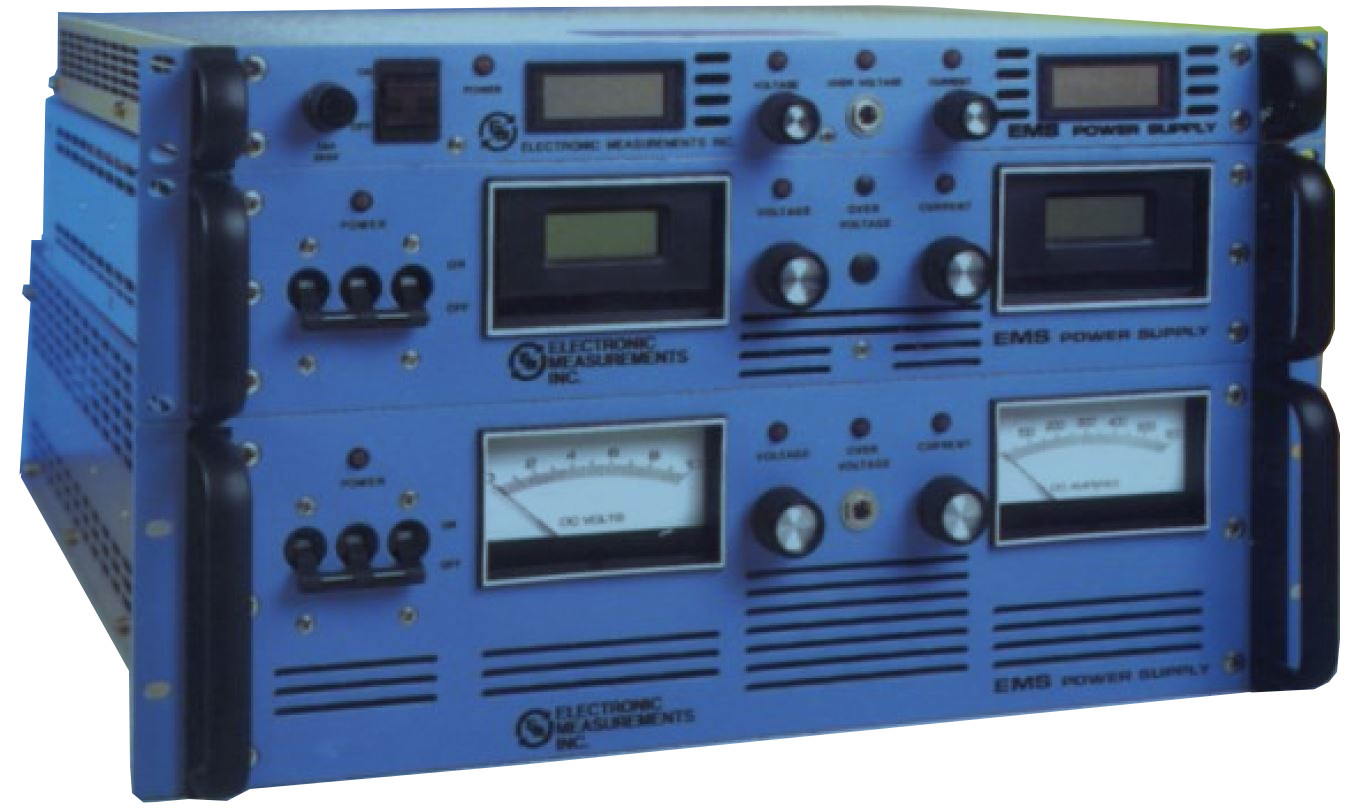

TDK Lambda EMS 40-125-2-D Power Supply
In the TDK Lambda EMS 40-125-2-D Power Supply, with an estimation of the essential current of the transformer and the current of the breaker, the unit can be monitored by the current transformer (s) in the inverter Bd. The signal is amended and filtered, producing an unregulated DC voltage that is utilized for maximum current limiting. The amended voltage of the inverter may be fed to the inverting terminal of a comparator and it will be contrasted to a reference that is attenuated from 5 Vdc of the PWM. The reference may be established by means of a potentiometer. This circuit is triggered when the switch current in the inverter surpasses 22 amps, as accomplished in fault conditions as the saturation of the power transformer or short in the inverter pins 5 and 8 (Pin 9 for 1KW).
The EMS 40-125-2-D includes a Set-Point Reference; the separate constant current sources offer reference voltages for the voltage and current channels. The collector current of Q1 drives the voltage control potentiometer that is spotted on the front panel, whereas Q2 drives the current control potentiometer. The positive bias voltage supply is RC filtered with R8 and C10 to decrease noise feedthrough. The current sources are referenced by the voltage across CR5, a temperature remunerated zener diode. The current from each of the sources may be adjustable to 1 mA to R3 and R5.
If you are interested in this model and you want to learn more about its options, specifications, and features, you can check its manual, which is available on the ApexWaves.com website.
| Model | EMS 40-125-2-D |
|---|---|
| Manufacturer | TDK Lambda |
| Series | EMS |
| Type | DC Power Supply |
| Output Voltage | 40 V |
| Output Current | 125 A |
| Frequency | 47-63 Hz |
| EMS 40-125-2-D Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
