68087B

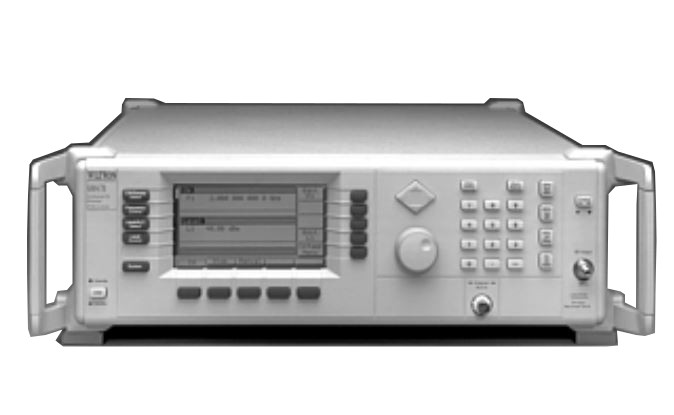

Anritsu Wiltron Synthesized CW Generator with +12 dBm output power
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Anritsu Synthesized Signal Generator 68087B
The 68087B is an advanced and high-performance synthesized Signal Generator by Anritsu. It is an efficient instrument with enhanced applications. The Anritsu 68087B frequency range is from 0.01GHz to 60 GHz. The output power of the signal generator varies with the frequency range. The output power is +12.0 dBm for low-frequency range of 0.01 – 2.0 GHz. It offers +2.0 dBm power for the high-frequency range of 50.0 – 60.0 GHz at the output. It also provides the output power of the order of +10.0 dBm and +2.5 dBm for other frequency ranges.
The 68087B Signal Generator comes with two areas at the front panel. These areas are divided as the data display area and data entry area. The data display area consists of the menu keys and displays feature. It also has dot matrix liquid crystal display LCD. The menu keys enable the user to select the main menu, submenu, and current menu. It also controls function on the current menu display. These menu keys are used to select the operating mode and measurement parameters. The main menu allows the user to navigate through and select different options. It includes CW sweep mode along with the operation and frequency control.
The 68087B Signal Generator also offers the user the ability to factory reset the instrument. This feature resets the instrument to default values and has the capability to store complete front panel setups. These setups are being stored in a non-volatile memory. The master reset function overwrites all information with the default values in 68087B Signal Generator.
| Model | 68087B |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | 680XXB |
| Type | Signal Generator |
| Frequency Range | 0.01 to 60 GHz |
| Output Power | +12 dBm |
| Dimensions | 5.25 (H) x 16.875 (W) x 23.5 (D) inches |
| Weight | 50 pounds |
| 68087B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
