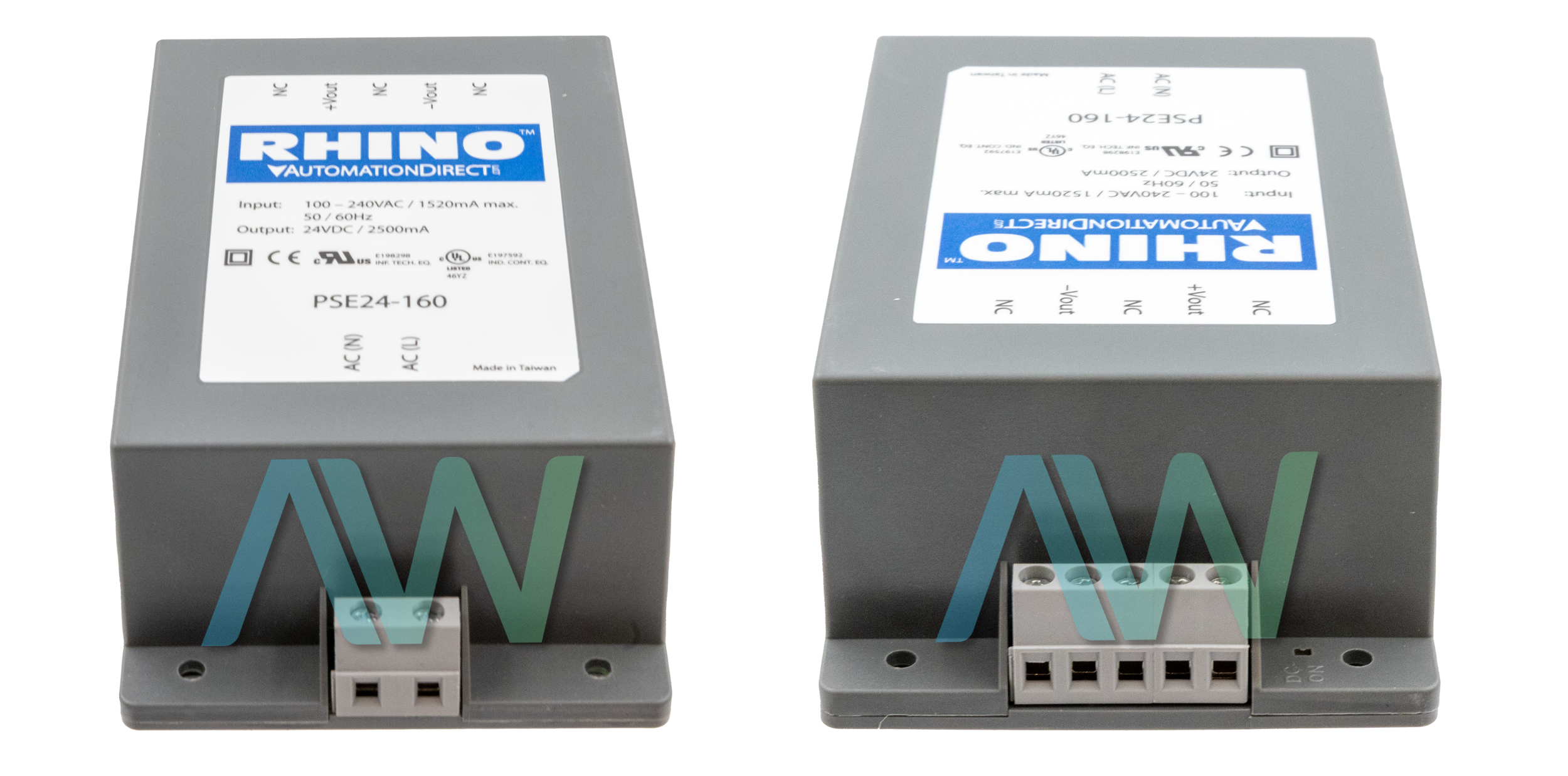

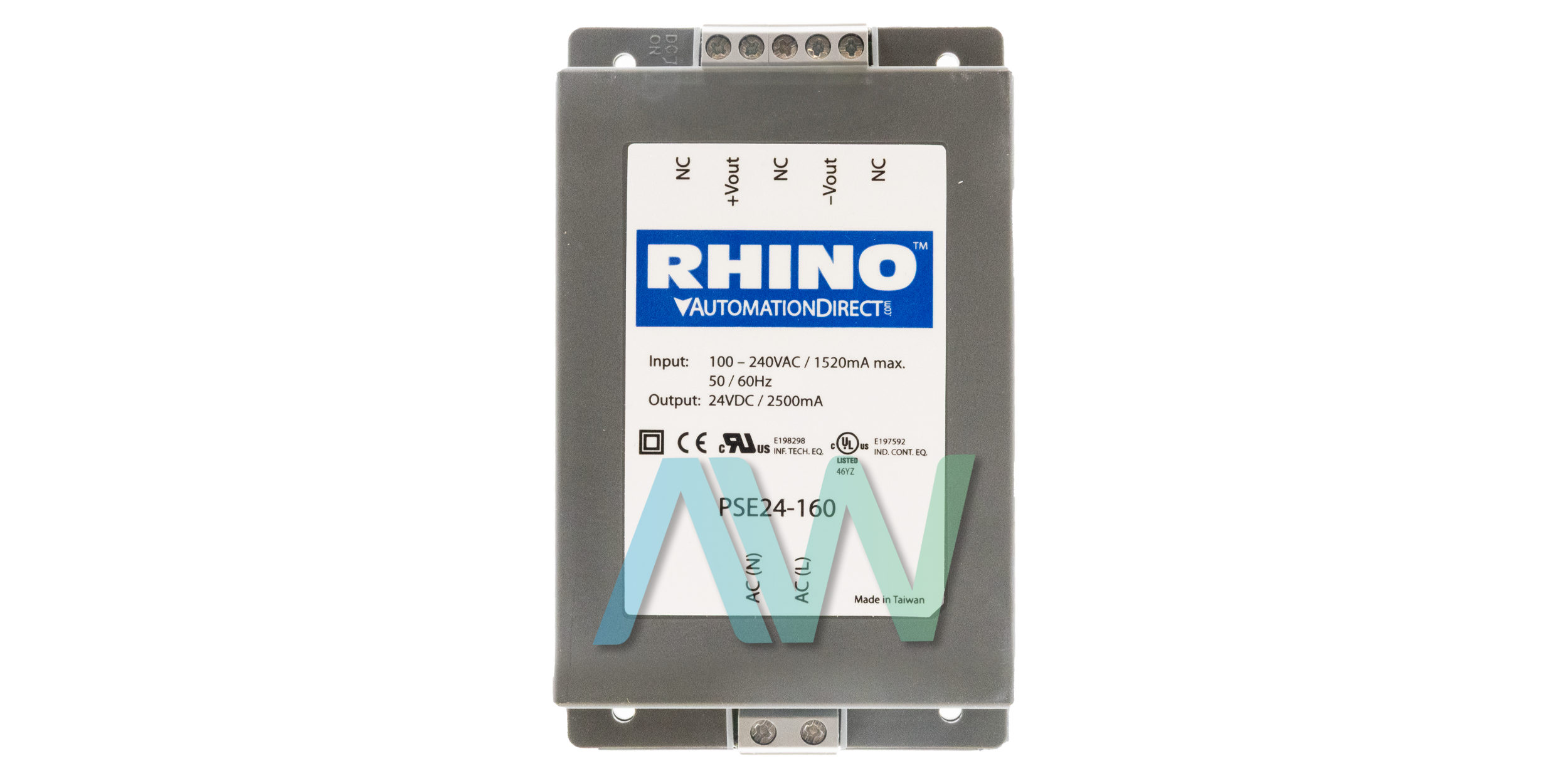

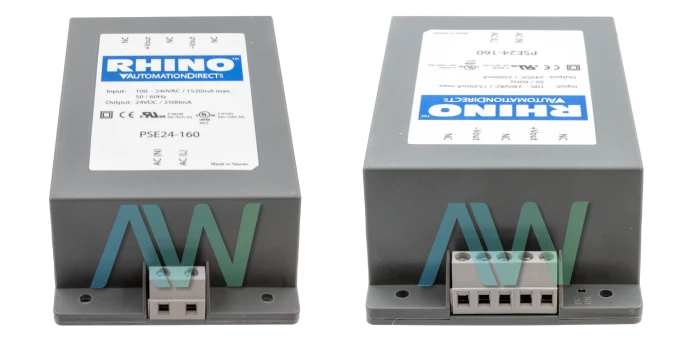

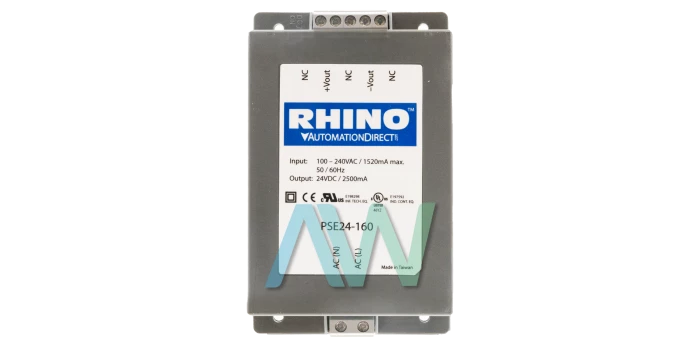

Automation Direct PSE24-160 Power Supply Switching Unit
The PSE24-160 power supply switching unit is a compact industrial power conversion module. It provides regulated low voltage DC power for control circuits instrumentation loads and automation assemblies. The design ensures stable output performance under varying industrial line conditions and dynamic load changes. The PSE24-160 accepts universal 85 to 264 VAC input at 47 to 63 Hz. It operates from a single phase supply and supports worldwide industrial mains networks without manual range selection. Internal input conditioning maintains efficiency while limiting inrush and line related disturbances reaching the downstream equipment.
At the output, the switching unit delivers 24 VDC at 2.5 A. The continuous output capability of 60 W supports distributed input or logic power rails in compact panels. Tight regulation across the specified operating window helps maintain stable voltage at the terminals under load transients.The integrated protection functions safeguard both the PSE24-160 and connected field loads. The short circuit protection responds rapidly to overload or fault conditions across the output channels. Overload protection limits current to controlled levels during abnormal demand and reduces thermal stress within the supply. Automatic recovery behavior supports fast restart once the fault is cleared and normal load conditions return.
The switching power supply incorporates voltage monitoring for increased diagnostic visibility within the installation. Output voltage status can be supervised during commissioning troubleshooting and routine maintenance activities. The unit delivers an efficiency of 83% at 115 V AC and 82 percent at 230 V AC. The overall weight of the unit is 0.35 kilograms which equals 0.74 pounds.The housing of the PSE24-160 uses a plastic resin and fiberglass construction with a fully encapsulated internal assembly. Encapsulation improves resistance to vibration airborne contamination and moisture found in industrial environments. The design supports chassis mounting for secure panel integration where cabinet space is limited. Screw terminal connectors provide robust field termination for both input and output wiring. The Automation Direct PSE24-160 operates over ambient range from -10 to +50 degrees centigrade. The unit is not classified as NEC Class two and does not include integrated UPS battery control. Remote on off functionality is not provided simplifying the interface to basic distribution schemes. It is CE marked and UL recognized for use in industrial equipment.
| Model | PSE24-160 |
|---|---|
| Manufacturer | Automation Direct |
| Part Type | Power Supply Switching Unit |
| Output Voltage | 24 VDC |
| Output Power | 60 W |
| Input Voltage Range | 85–264 VAC |
| Input Frequency Range | 47–63 Hz |
| Protection Types | Short circuit, overload |
