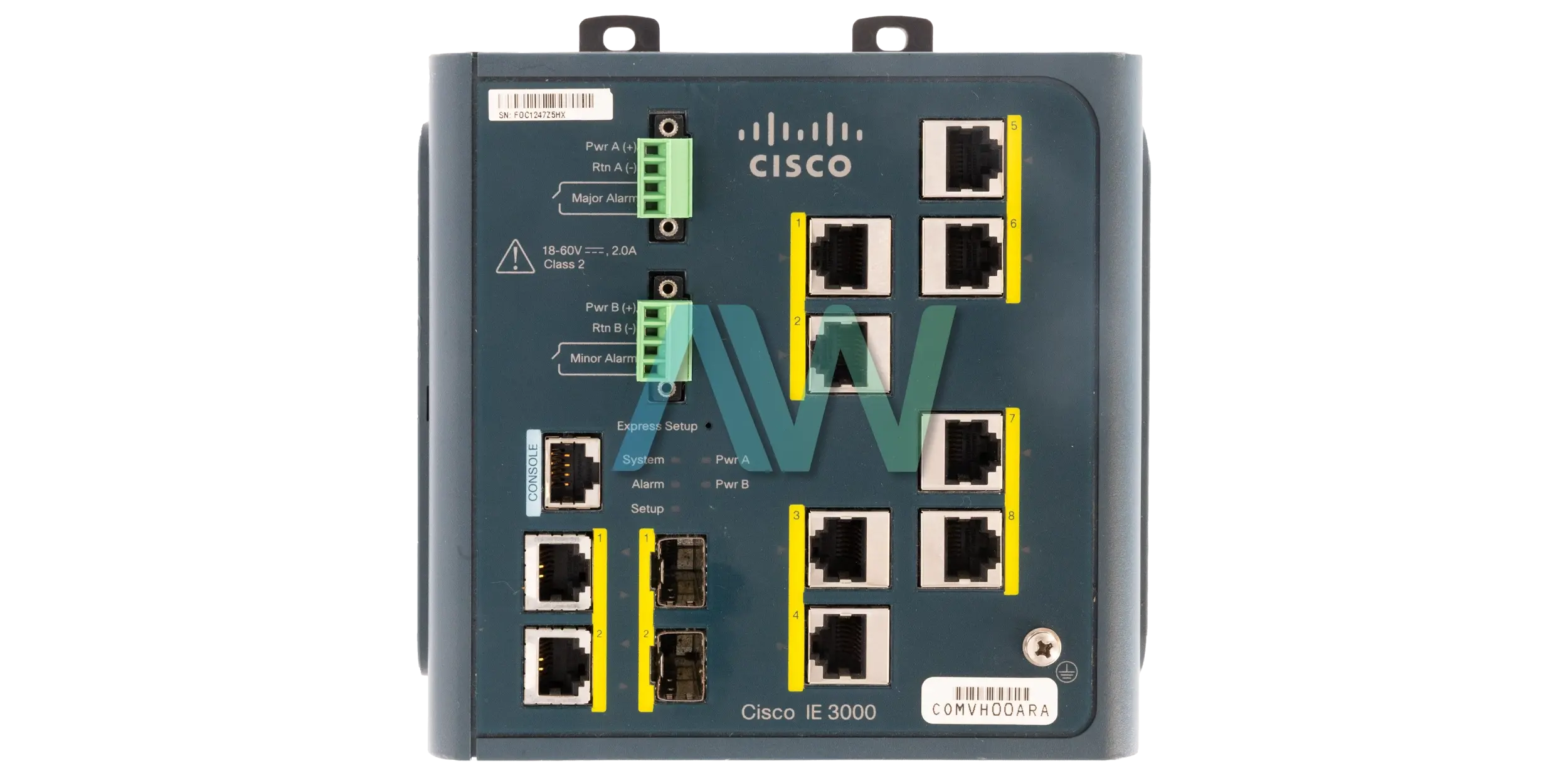

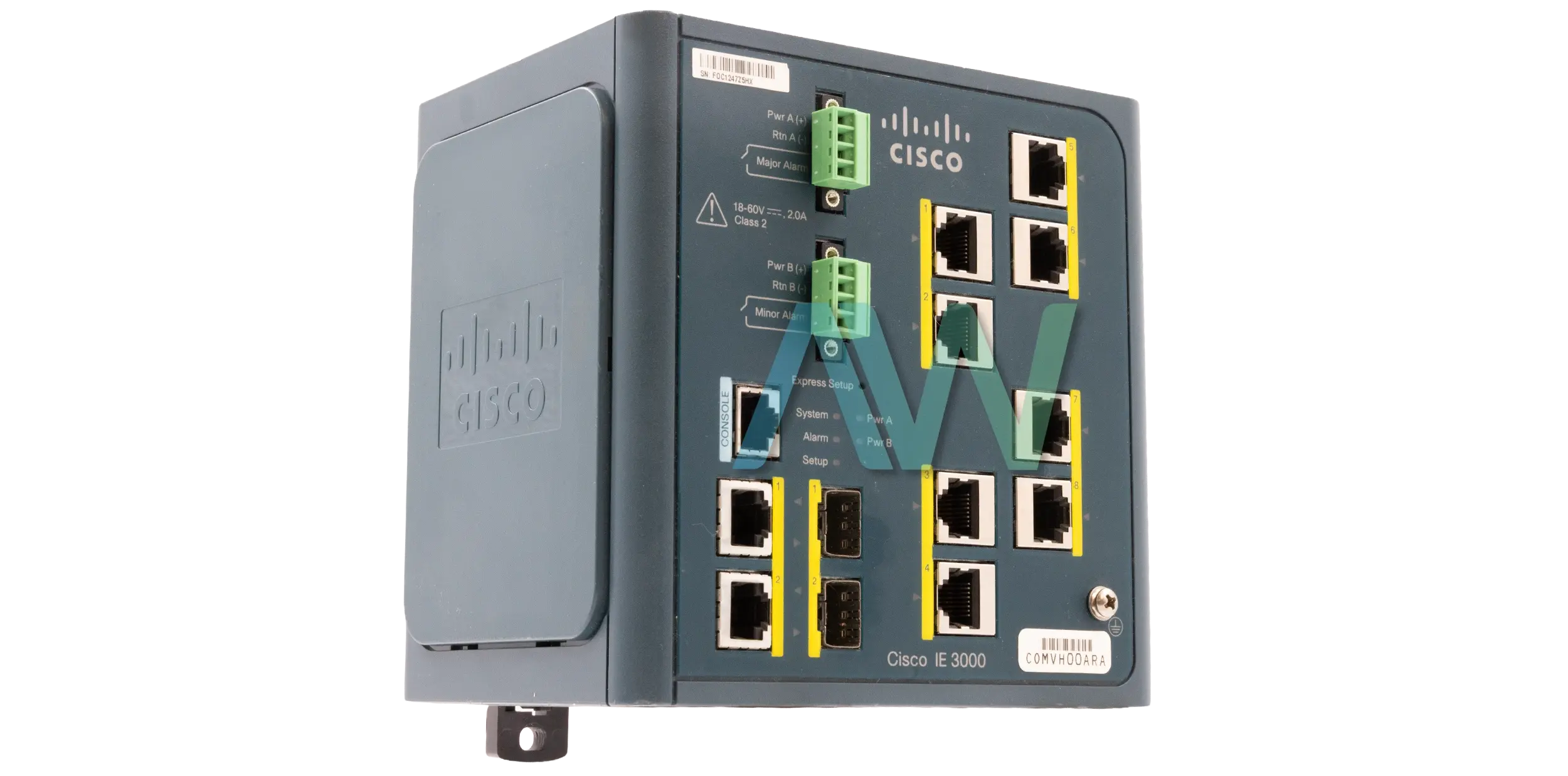

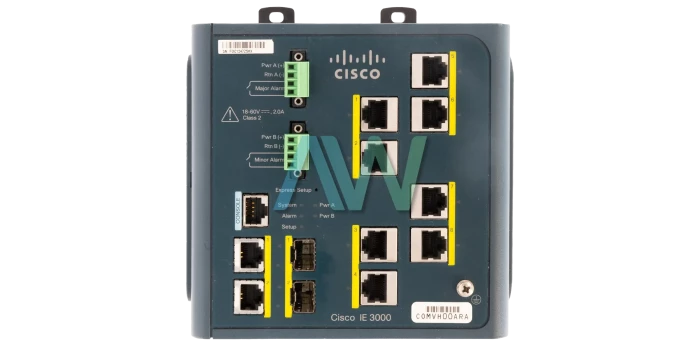

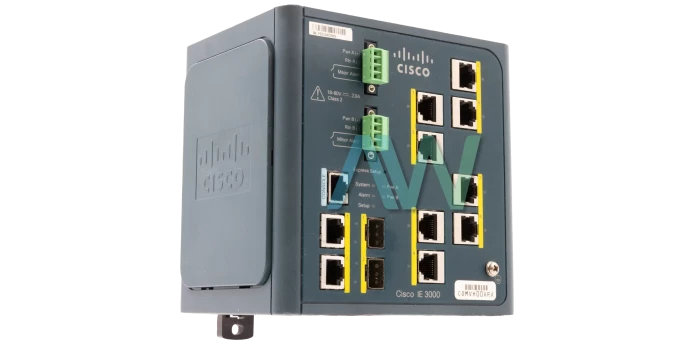

Cisco IE-3000-8TC Industrial Ethernet Switch
The IE-3000-8TC is an Industrial Ethernet Switch from the manufacturer Cisco. As part of the IE 3000 Series, this switch is equipped with 8 high speed ethernet 10/100 ports. It also features 2 dual-purpose uplinks, one with a 10/100/1000 Ethernet port and the other with an SFP-based Gigabit Ethernet port. This versatile switch offers the connections needed to support up to two Cisco expansion modules at once, including the IEM-3000-8TM= and IEM-3000-8FM= modules. The software image of the switch is a Layer 2 LAN Base Image, and the Mean Time Between Failures (MTBF) is 329,451.
This ethernet switch has 128 MB of DRAM and 64 MB of compact flash memory. Featuring a 16 Gbps switching fabric, the IE-3000-8TC is capable of wire-speed switching for optimal operation. In terms of power, the device supports a voltage range of 18 VDC to 60 VDC. It has a maximum power consumption of 15.7 W, with a power rating of .05 KVA.
LED indicators offer quick visual insight to the status of different aspects of the device. Each port has a status LED, displaying the status of the connection’s activity, speed, integrity, and more. A system-status LED offers quick insight into the link status, speed, and duplex for the system as a whole.
The Industrial Ethernet Switch measures physical dimensions of 152 mm x 147 mm x 112 mm (6.0 in. x 5.8 in. x 4.4 in.) and weighs 2.0 kg (4.4 lbs). The IE-3000-8TC should be operated within the environmental temperature range of -40°C to 75°C with a noncondensing relative humidity range of 10% to 95%. When not in use, the device can be safely stored within temperatures of -40°C to 85°C. It can be operated at altitudes up to 13,000 ft (3,963 m) and stored at altitudes measuring up to 15,000 ft (4,573 m).
| Model | IE-3000-8TC |
|---|---|
| Part Type | Industrial Ethernet Switch |
| Manufacturer | Cisco |
| Part Series | IE 3000 Series |
| Ethernet Ports | Eight 10/100 Ethernet Ports |
| Uplinks | Two Dual-Purpose Uplinks |
| Software Image | Layer 2 LAN Base Image |
| DC Input Range | 18 VDC - 60 VDC |
| MTBF | 329,451 |
| Power Consumption | 15.7 W |
| Power Rating | .05 KVA |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 152 mm x 147 mm x 112 mm (6.0 in. x 5.8 in. x 4.4 in.) |
| Weight | 2.0 kg (4.4 lbs) |
| Pricing | Request a Quote for More Information |
