TB-2648
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-2648, 1-wire, 4 x 128 matrix, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

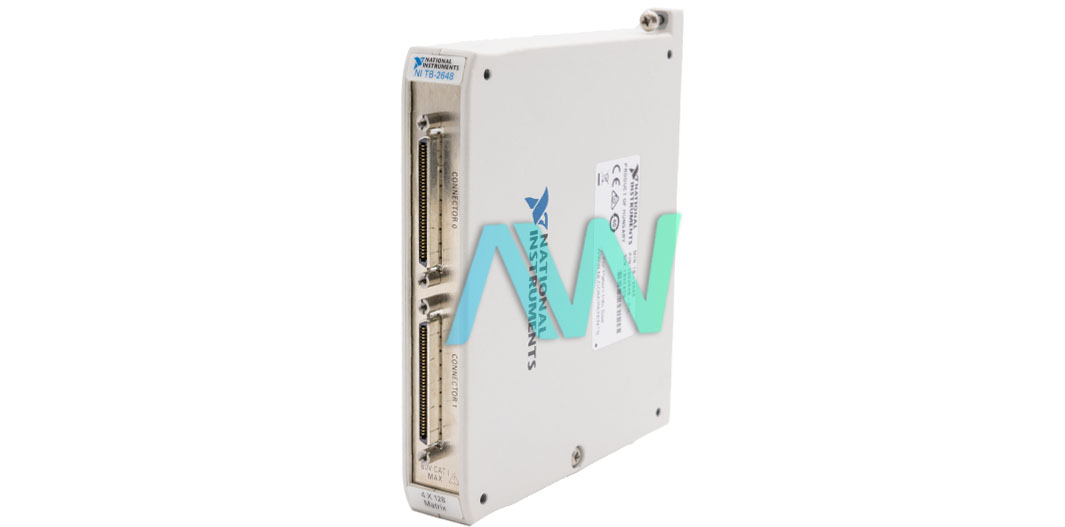

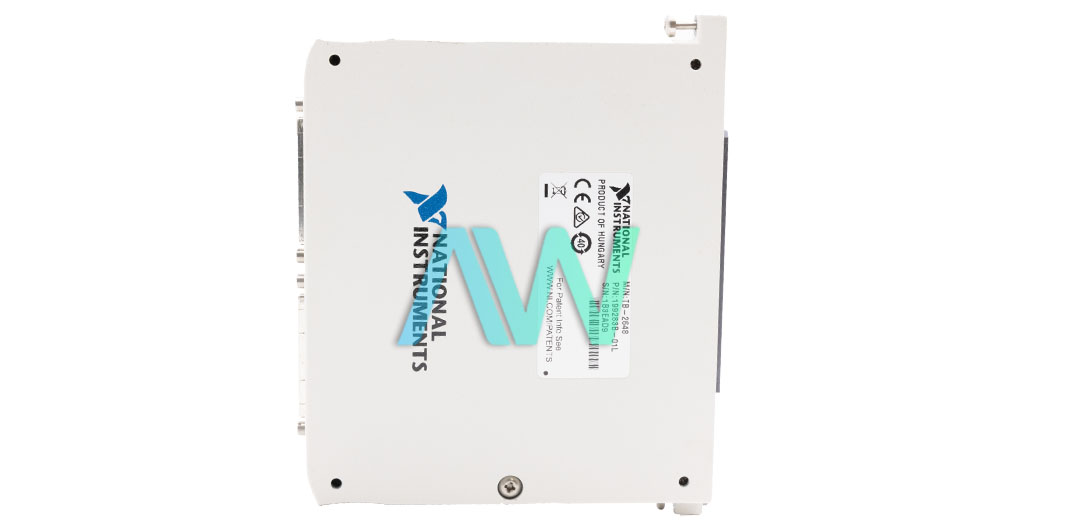

NI TB-2648 Terminal Block
The TB-2648 (Part Number: 781131-01) is an accessory for the NI-2531. This Terminal Block supports single-wire, 4 × 128 matrix topology or configuration for the NI-2531 Switch Module. The NI TB-2648 is widely used in the construction of multifunction switching systems. This Terminal Block comes with a 160-position device connector. This connector can easily be mated with the connector of the NI-2531. You can check other variants of this Terminal Block for more choices for configuration.
The TB-2648 allows direct connectivity to the device under test with the help of an appropriate cable. However, you can always incorporate a connecter block between the DUT and the NI TB-2648. This Terminal Block comes with 2 front end connectors. The installation of this accessory is something that can easily be achieved without any additional hardware resources. The TB-2648 Terminal Block is vastly used in industrial applications where high-density switching is required at fast rates.
| Model | TB-2648 |
|---|---|
| Manufacturer | NI |
| Part Number | 781131-01 |
| Type | Terminal Block |
| Compatible Models | PXI-2531 and PXIe-2531 |
| Configuration | 1-wire, 4 x 128 matrix |
| Bandwidth | >10 MHz, typical |
| I/O Connectors | Two, 68-PIn VHDCI |
| Maximum Current | 0.5 A (per channel) |
| Warranty | 2-3 Year Warranty |
| TB-2648 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TB-2648:
199283A-01L, 199283B-01L, 199283C-01L, 781131-01
