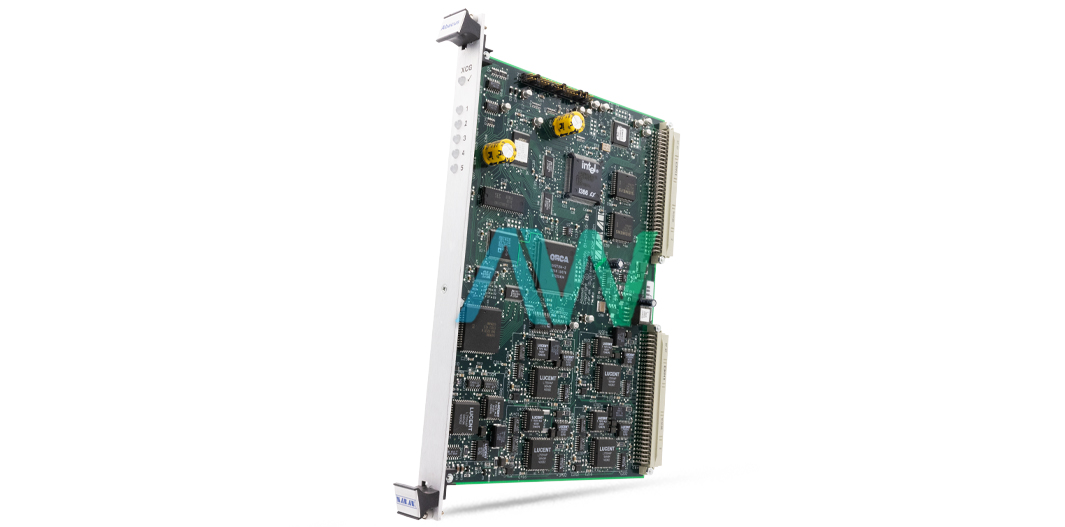

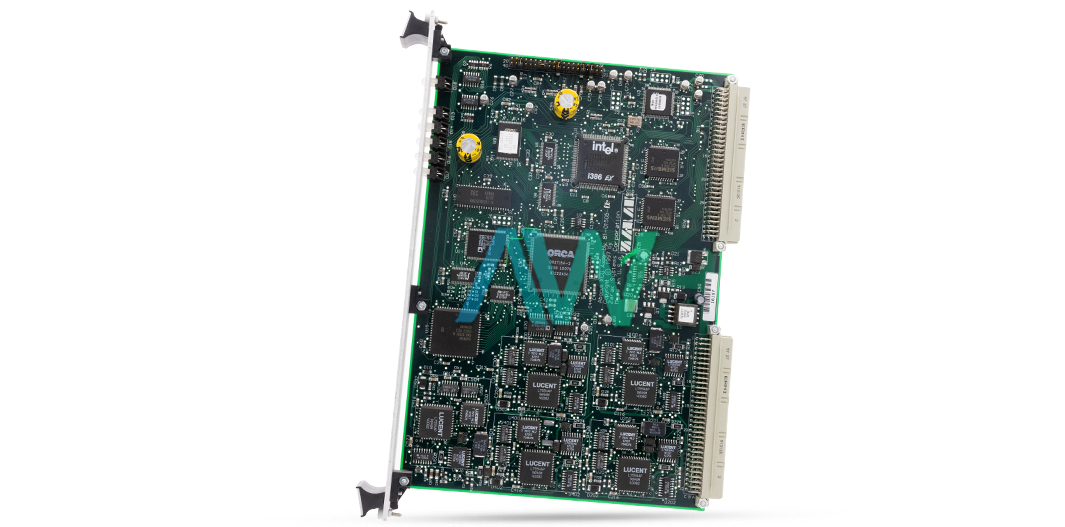

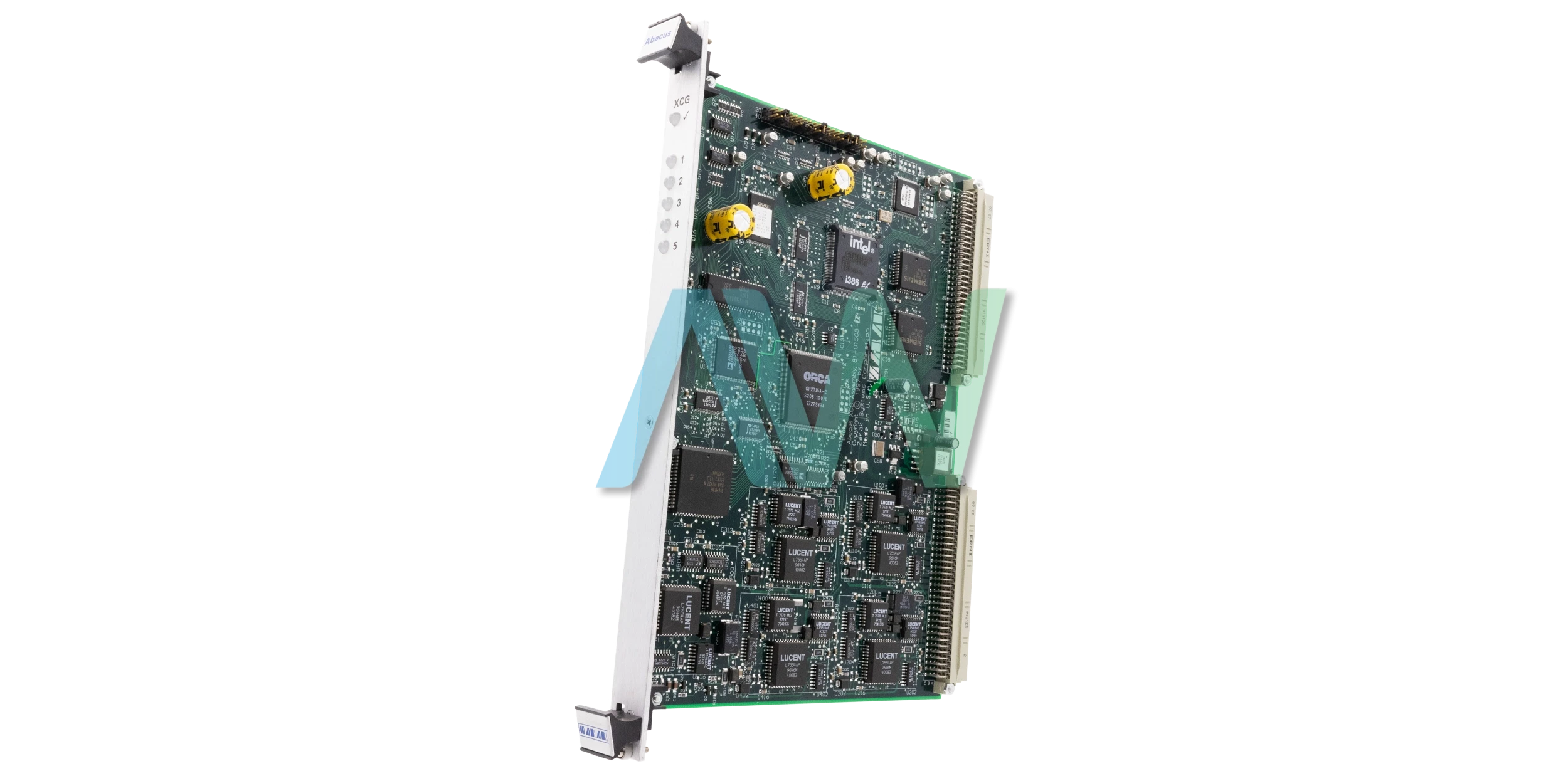

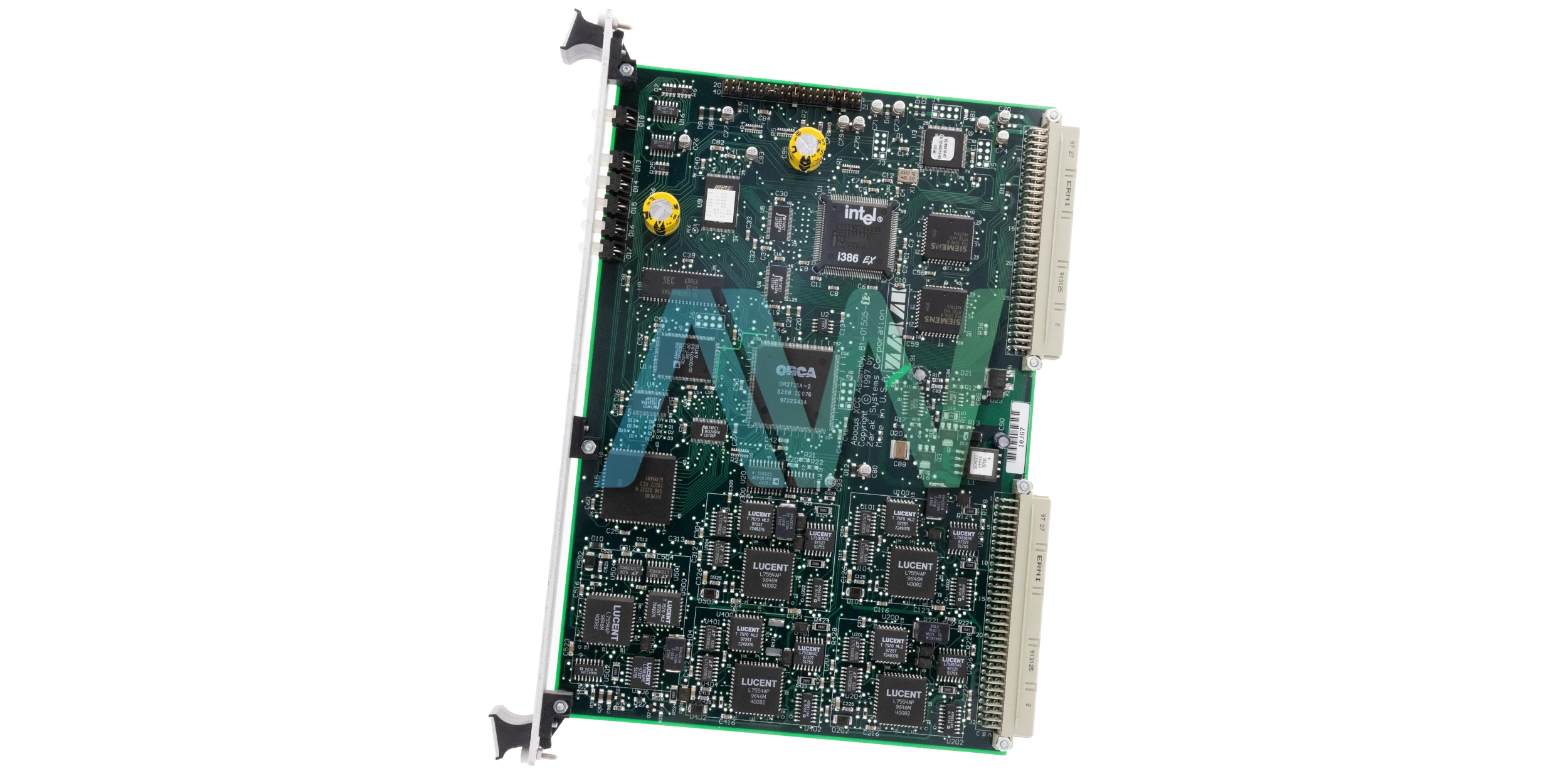

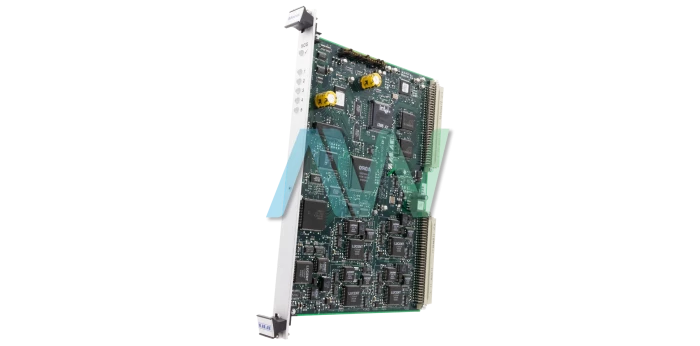

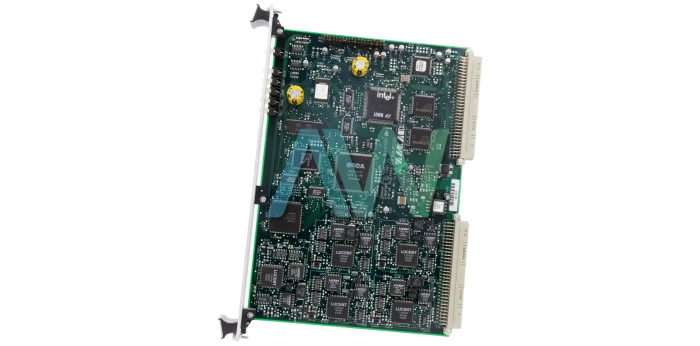

Spirent 81-01505-13 XCG Assembly Module
The Spirent 81-01505-13 XCG Assembly Module provides an innovative hardware solution for high-performance data processing within critical industrial and telecommunications applications that require strong computational support and real-time control. The 81-01505-13 assembly module is configured with two XCGs, one PCG, three ACGs, and one PI, which makes it a versatile and reliable solution in solving complex automation tasks.
The core of the Spirent 81-01505-13 module is an Intel i386 EX embedded microprocessor, running at 25 MHz. Such a microprocessor makes it possible to deal with very extensive computational tasks without complicating the execution on the 81-01505-13 device. Moreover, it integrates an Analog Devices' ADSP-2173 DSP, a unique digital signal processor that remarkably enhances its functionality in real-time data and signal processing; thus, fundamental for advanced industrial systems to guarantee that control accuracy is maintained and speed is assured.
It contains 64KB of SRAM memory onboard, thus allowing the module to store and retrieve data at a high speed. This memory enables the module to work flawlessly during intensive processing—a feature very useful for this module, especially when real-time operations need fast access to data and reliability of operation. This much memory would be significant in handling a lot of temporary data so that the module can deliver performance and efficiency at high speed for tasks that must be time-sensitive.
Due to the specific design configuration of the Spirent 81-01505-13 XCG Assembly Module, it embeds a number of components such as XCG and ACG, allows multitasking, and performs redundancy checking. These make the 81-01505-13 very important when the systems need high fault tolerance and continuity, which results in numerous varieties of signal processing, data control, and communication tasks in industrial automation and control systems.
The Spirent 81-01505-13 module is fitted for a variety of telecommunications and industrial applications, especially where utilization in VME systems is involved. Typical applications are found in areas where real-time processing, correct data manipulation, or the right interpretation of signals is involved, including automated manufacturing, signal transmission, and data acquisition networks.
| Model | 81-01505-13 |
|---|---|
| Part Type | XCG Assembly Module |
| Processor | Intel i386 EX Embedded Microprocessor |
| Digital Signal Processor (DSP) | Analog Devices ADSP-2173 DSP Microcomputer |
| Memory Capacity | 64KB SRAM |
| Embedded Modules | 2 XCGs, 1 PCG, 3 ACGs, and 1 PI |
| System Architecture | VME (Versa Module Europa) compatible |
