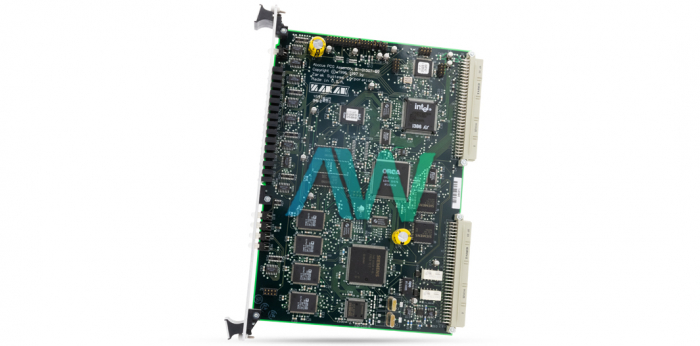

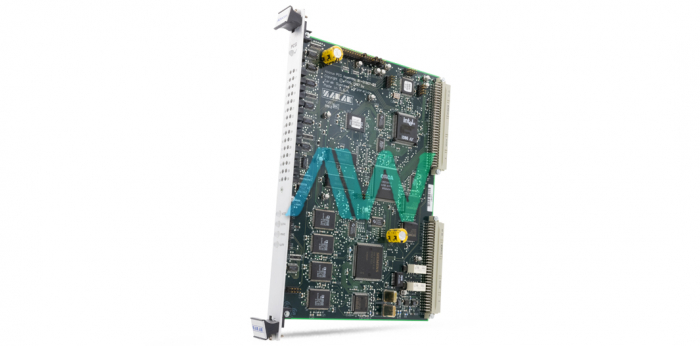

Spirent 81-01507-23 PCG Card
The Spirent 81-01507-23 PCG Card is a multiple-functional four-wire circuit generator card designed for the Abacus1 Test System. Its major function involves simulating telecommunications networks by generating calls and signalling in complicated test conditions that have often become critical to emulate real-world scenarios under controlled setup. It features T1 CAS, E1 CAS, T1 PRA, E1 PRA, SLC-96, GR-303, V5.1, V5.2, and SS7 protocols and is targeted for use in a wide range of telecommunications applications. This is highly useful for performance, reliability, and interoperability testing of various telecommunication systems.
One of the major features that make the 81-01507-23 PCG Card outstanding is its programmability, allowing it to be configured for a wide range of protocols in order to simulate conditions or requirements. This makes it suitable in a wide variety of telecommunications test systems and regional or protocol-specific applications. The E1 and T1 interfaces supported by the card extend compatibility to a wide range of systems and hence find favor with both North American and international customers.
The PCG Card emulates a subscriber or exchange environment in application, using one circuit per card. It provides high performance for load testing and validation of routing and for checking quality metrics like jitter and delay. This would emulate actual traffic conditions, thereby allowing performance studies and optimizations to be done according to the most stringent standards in telecommunication. This provides for complete integration with the Spirent Abacus1 platform through which all test configurations can be managed on a single software interface and reporting automated for further streamlining of the testing process.
The Spirent 81-01507-23 PCG Card module ensures flexibility and a robust hardware design in such a way that users can easily integrate it with other Spirent products, which will mean the ease of expansion into other test capabilities as needs for a system grow. It provides a telecom service provider or equipment manufacturer the ability to evaluate and further improve their call processing performance over a wide variety of different network configurations.
| Model | 81-01507-23 |
|---|---|
| Model Number | 81-01507-23 |
| Interface Type | 4-wire; T1 CAS, E1 CAS, T1 PRA, E1 PRA, SLC-96, GR-303, V5.1, V5.2, SS7 |
| Protocol Compatibility | T1 and E1 standards |
| Circuit Support | One circuit per card |
| Applications | Call generation, switching, load testing |
| Traffic Capacity | Up to 824k BHCA in E1 PRA mode |
| Programmable Protocols | User-defined call generation and response |
| Software Compatibility | External PC, Windows OS |
| System Integration | Abacus1 platform, compatible with other Spirent products |
Associated part numbers for 81-01507-23:
