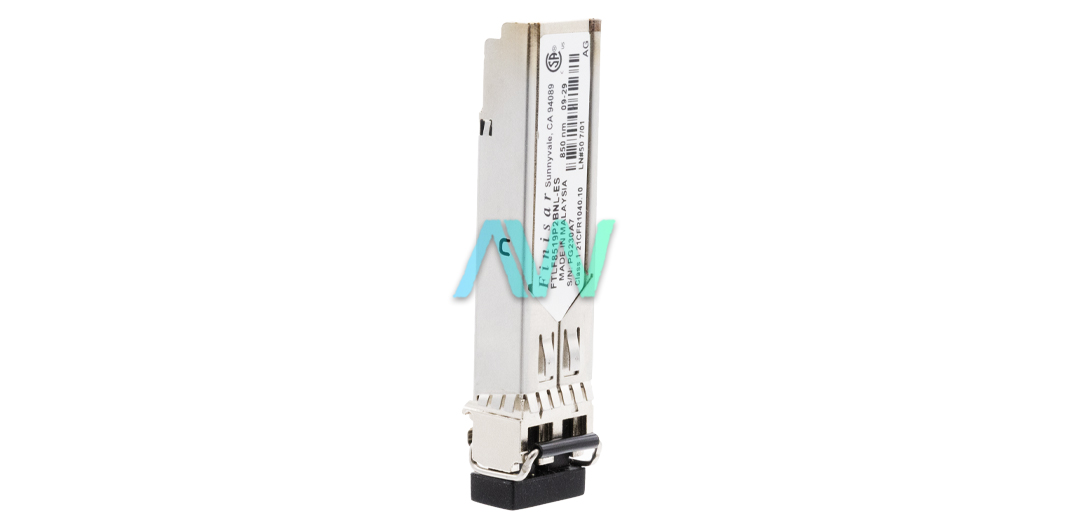

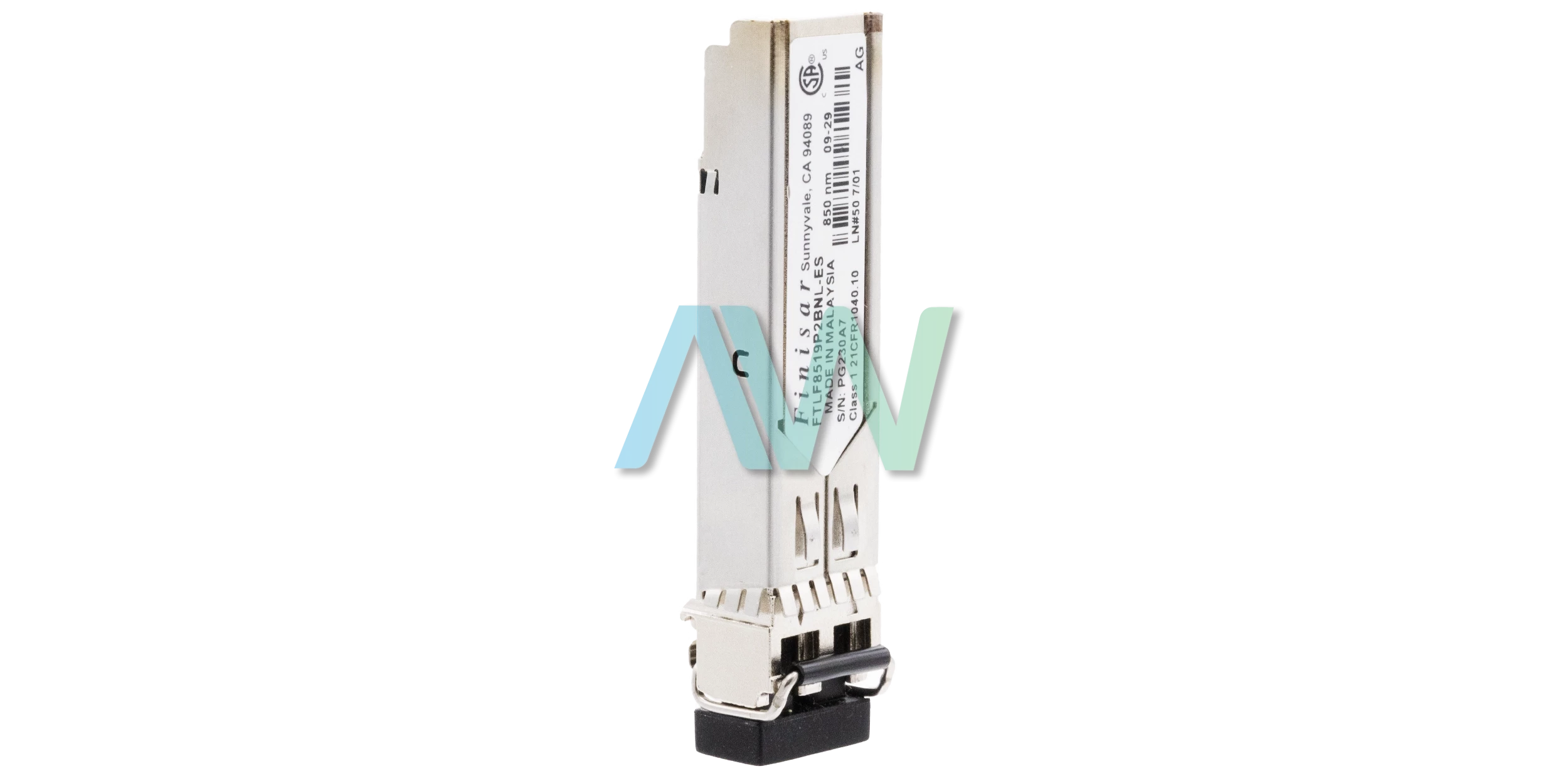

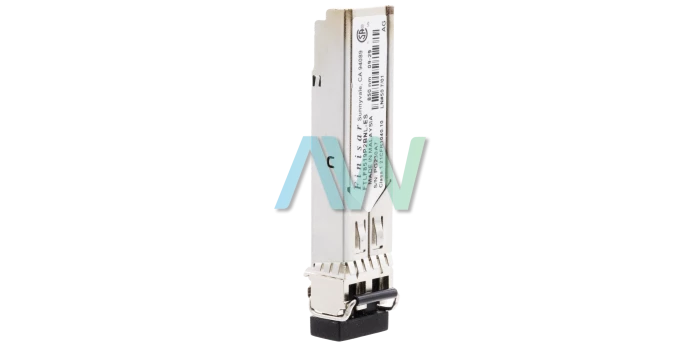

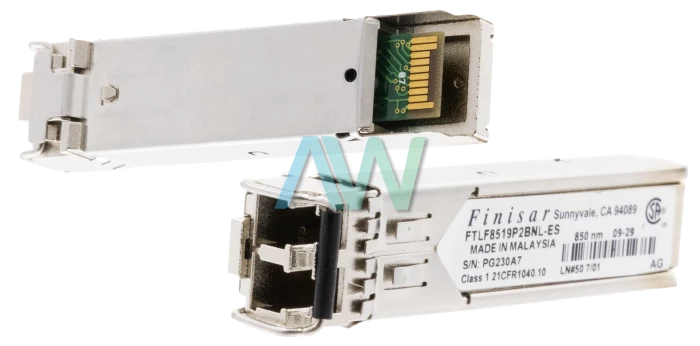

Spirent SFP 1000BASE-LX/LH Optical Transceiver
The Spirent SFP 1000BASE-LX/LH Optical Transceiver is a rugged, high-performance networking module to support Gigabit Ethernet applications over long distances using single-mode fiber. Operating on the 1310 nm wavelength, this transceiver provides data transmission up to 1.25 Gbps in a reliable manner and allows for a distance of up to 10 km using 9/125 µm SMF. In other terms, it is hot-swappable and MSA Compliant, meaning the MSA compatibility provides a flexible interfacing with a wide array of network devices. Because the device is designed in operation over extended temperature, therefore it's suitable in various commercial and industrial enviros.
This transceiver incorporates advanced features such as Fabry-Perot Laser transmitter and PIN Photodiode receiver with an associated trans-impedance amplifier. It also offers built-in Digital Diagnostic Monitoring (DDM), providing real-time access to key operational parameters including temperature, voltage, laser bias current, and optical power. This functionality aids in proactive maintenance and performance optimization. With a low power consumption and the SFP form factor compactness, it allows integration into dense networking, ensuring low space requirements and decreased operational costs.
The Spirent SFP 1000BASE-LX/LH comes with full compatibility according to the IEEE 802.3 standard and, therefore, enjoys broad interoperability with Gigabit Ethernet equipment like switches and routers. Besides this, it is compatible with more extended protocols and technologies involved in different fields of environments, such as fiber channel switches and other optical infrastructures. With its duplex LC connector interface, deployment can be made simpler with good stability in the connections.
The result is a module designed to meet strict industry standards with great electromagnetic interference shielding and also complies with regulatory requirements on laser safety and ESD tolerance. Because of this, it finds an ideal application in data centers, enterprise networks, and telecommunications infrastructure to meet high-quality data transmission with maximum reliability in a hard environment. The Spirent SFP 1000BASE-LX/LH Optical Transceiver is an efficient means of extending and complementing network functionality at the best levels of reliability and precision.
| Model | SFP 1000BASE-LX-LH |
|---|---|
| Part Type | Optical Transceiver |
| Data Rate | 1.25 Gbps |
| Transmission Distance | 10 km on SMF |
| Wavelength | 1310 nm |
| Connector Type | Duplex LC |
| Compliance Standards | IEEE 802.3, MSA |
| Diagnostics | DDM support |
| Operating Temperature | -40°C to +85°C |
| Form Factor | SFP, hot-swappable |
Associated part numbers for SFP 1000BASE-LX-LH:
