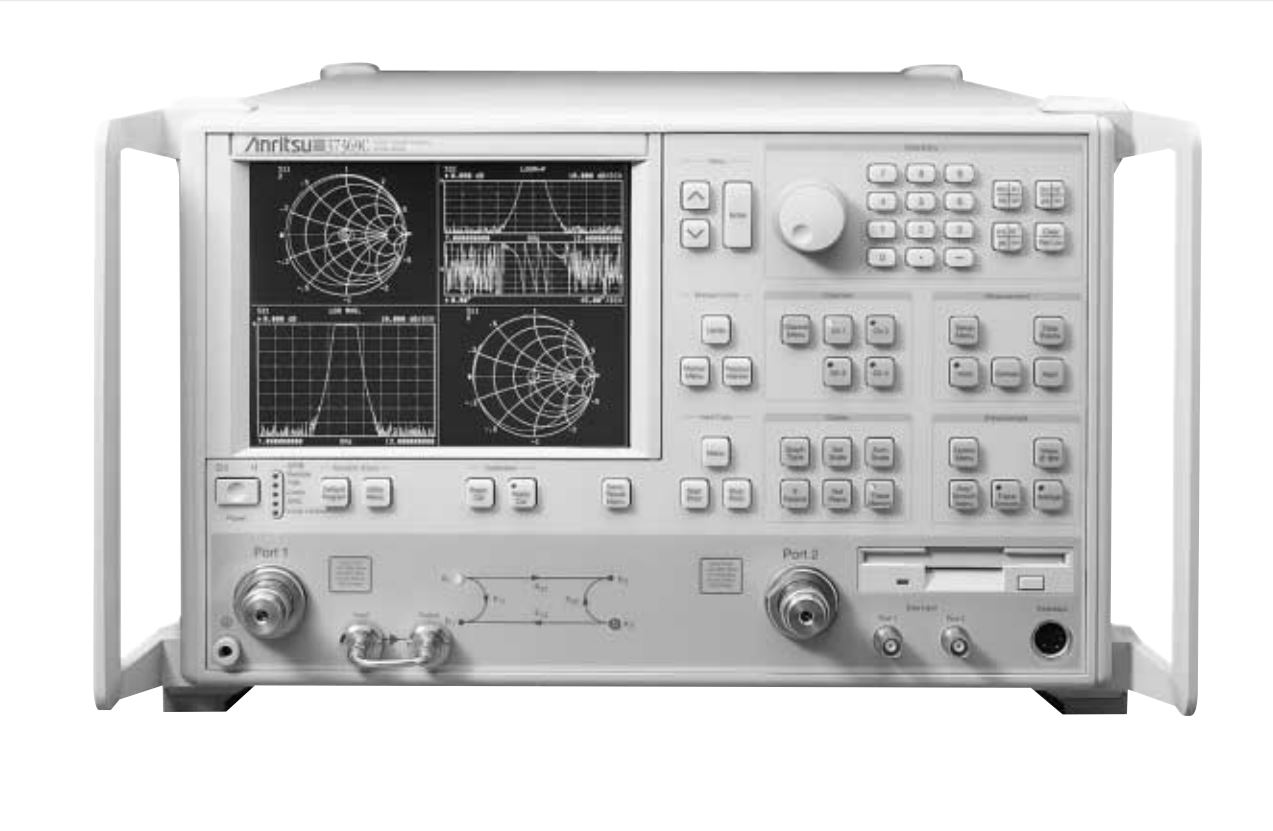

Anritsu Vector Network Analyzer 37377C
The Anritsu 37377C offers the base frequency of 40 MegaHertz. The maximum frequency measurement range for the instrument is 50 GHz. The instrument comes with amazing features and measurement capabilities. The model also comes with data transfer capabilities at very high speed. It helps to improve the work efficiency of the user. The standard GPIB ports are incorporated to extract the maximum efficiency out of the system. These ports implement the IEEE 488.2 specifications.
The 37377C VNA also has built-in mass storage capabilities. The user can recall different options and calibration that are used very often. The user can choose to store hundreds of calculations and data traces, with the capability to connect an external device. It uses SCSI port to accomplish this capability. The 37377C VNA is also capable of implementing the fast synthesized sweep mechanism. It can update the measurements in less than two seconds. This value is for per point measurements. These measurements are phase-locked. It enables the user to get the optimum error accuracy. The measurements are also already corrected for vector-errors.
The 37377C vector analyzer is also compatible with LabVIEW instrument drivers. It offers easy and simple to use graphical programming environment. The user can control different options of the 37377C product using this utility. It enables the user to create different test programs. These are totally customized test sets. It prepares measurement reports and displays the test results automatically. The model also allows the user to utilize and control various tuning operations. The 37377C VNA offers the complete capabilities set according to modern needs.
| Model | 37377C |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 37000C |
| Type | Vector Network Analyzer |
| Frequency | 40 MHz to 50 GHz |
| Display | 8.5 inch color LCD |
| Operating Temperature | 23 +/- 3 deg C |
| Power Range | -87 dBm to -7 dBm |
| 37377C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 37377C:
| Model/Option | Description |
|---|---|
| 37377C Option 1 | Rack mount kit with slides |
| 37377C Option 1A | Rack mount kit with handles |
| 37377C Option 2A | High-speed time (distance) domain capability |
| 37377C Option 4 | External SCSI-2 hard disk drive compatibility |
| 37377C Option 7A | Replaces universal K connector (standard) with universal GPC-7 |
| 37377C Option 7N | Replaces universal K connector (standard) with universal N-male |
| 37377C Option 7NF | Replaces universal K connector (standard) with universal N-female |
| 37377C Option 7S | Replaces universal K connector (standard) with universal 3.5 mm-male |
| 37377C Option 7K | Replaces universal V connector (standard) with universal K (m) (37277C/37297C/37377C/37397C models only) |
| 37377C Option 12 | Rear Panel IF Inputs (for 37x97C and 37x77C only). Required for upgrade to ME7808A Broadband VNA. |
