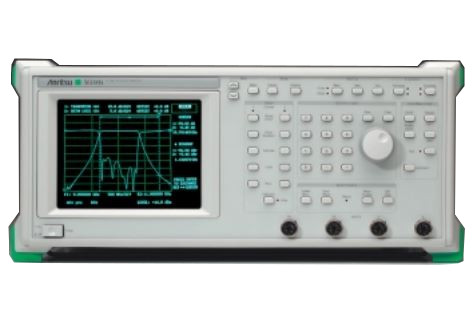

Anritsu 54111A Scalar Network Analyzer
The Anritsu 54111A Scalar Network Analyzer is an instrument which measures the intricate transmission and reflection attributes of two-port gadgets in the recurrence space. This instrument has a range between 1MHz to 3 GHZ. It does this by testing the occurrence signal, isolating the transmitted and reflected waves, and afterward performing proportions that are straightforwardly identified with the reflection and transmission coefficients of the two-port. Recurrence is cleared to quickly get plentifulness and stage data over a band of frequencies of intrigue.
Every byte set on the information transport speaks to either an order or an information byte. In the event that the Attention (ATN) interface administration line is TRUE while the information is exchanged, the information transport is conveying a transport charge which is to be received by each GPIB gadget. In the event that ATN is FALSE, then an information byte is exchanged and the attentive people will get that byte. The handshake lines, similar to the next GPIB lines, are low.
The 54111A has the control of the exchange of every datum byte on the information transport is finished by a strategy called a three-wire handshake, which includes the three flag lines of the Data Byte Transfer Control Bus. This system makes an extraordinary power towards information exchanges at the speed of the slower audience, which ensures the honesty of the information in various wire exchanges. One line (DAV) is controlled by the speaker, while the other two (NRFD and NDAC) are OR-link lines shared by every single attentive person.
There is a manual of this model available on the ApexWaves.com website.
| Model | 54111A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 0.001 to 3 GHz |
| Dynamic Range | -55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54111A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54111A:
| Model/Option | Description |
|---|---|
| 54111A Option1 | Rack mounting with slides |
| 54111A Option 2 | Step attenuator 70 dB RF |
| 54111A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54111A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54111A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54111A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54111A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54111A Option 5 | Add reference channel |
| 54111A Option 6 | Add external levelling |
| 54111A Option 7 | Internal distance-to-fault software |
| 54111A Option 8 | Internal relative group delay software |
| 54111A Option 12 | Add front panel cover |
| 54111A Option 13 | Add front mounted handles |
| 54111A Option 16 | +15 V DC supply for millimeter wave source module |
| 54111A Option 25 | Maintenance manual |
| 54111A Option 26 | Extra operation and GPIB programming manual |
| 54111A Option 33 | Canon printer |
