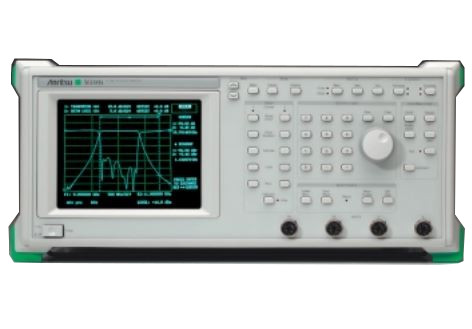

Anritsu 54117A Scalar Network Analyzer
Anritsu's 54117A Scalar Network Analyzer works with exactness waveguide reflectometers that is accessible as far as 110 GHz. This application note depicts how to work the client characterized scaling, outer leveling, and identifier counterbalance highlights of the 54117A to influence duplicated and recurrence to balance estimations precisely. In this model, the multipliers are intended to work with any 12.5 GHz to 18.75 GHz source, giving no less than +5 dBm output control and −60 dBc sounds. The low input harmonics are required to meet the multiplier's output spurious symphonious particular of −55 dBc(−60 dBc commonplace). Higher source harmonics, for example, the−20 dBc execution regular to existing millimeter recurrence expansions, cause critical blunders. For instance, a −20 dBc spurious level has more than ± 2.0 dB measuring gadgets, with more than 10 dB return misfortune.
54117A recognizes return loss magnitude error because of source harmonics. In transmission estimations, sub-sounds and intersection goads from over the top information source music can make channel tuning unthinkable. The 54117A Network Analyzer utilizes broadband identifiers. Precise gadget portrayal requires that sounds and spurious signs be altogether lower than control level of the test's principal recurrence.
The contribution of the multiplier is outfitted with isolation and a pick up arrange driving the 4x (V-band 50-75 GHz) or 6x (W-band 75-110 GHz) multiplier diodes. The multiplier configuration fuses transitional and post channel stages for the low −60 dBc symphonious execution. The post channels can be evacuated for higher yield control or supplanted with through waveguide.
If you want to learn more about this model and its functions you can read its manual on the ApexWaves.com website.
| Model | 54117A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 10 MHz to 8.6 GHz |
| Dynamic Range | -55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54117A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54117A:
| Model/Option | Description |
|---|---|
| 54117A Option1 | Rack mounting with slides |
| 54117A Option 2 | Step attenuator 70 dB RF |
| 54117A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54117A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54117A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54117A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54117A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54117A Option 5 | Add reference channel |
| 54117A Option 6 | Add external levelling |
| 54117A Option 7 | Internal distance-to-fault software |
| 54117A Option 8 | Internal relative group delay software |
| 54117A Option 12 | Add front panel cover |
| 54117A Option 13 | Add front mounted handles |
| 54117A Option 16 | +15 V DC supply for millimeter wave source module |
| 54117A Option 25 | Maintenance manual |
| 54117A Option 26 | Extra operation and GPIB programming manual |
| 54117A Option 33 | Canon printer |
