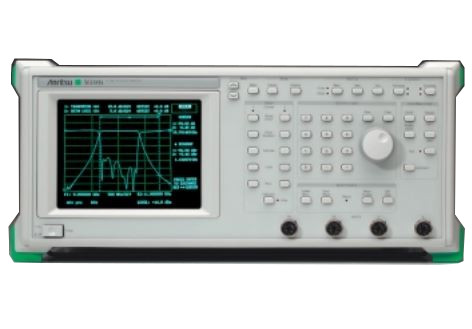

Anritsu 54136A Scalar Network Analyzer
Anritsu’s 54136A Scalar Network Analyzer is capable of offering a Follow At Cursor to Reference Line, this consequently modifies the counterbalance with the end goal that the follow at the cursor is set on the reference line for channel N, the Resolution (scale) if not changed. Legitimate for all estimation modes giving the cursor is on. 54136A also offers Autoscale, which naturally changes the determination and counterbalance for channel (N) to fit the flag on the screen. Determination is set to the most suitable incentive at a '1,2,5' succession. Balance will be a variety of the chosen determination.
This model includes a Set User Title and Set Standard Titles. The first one permits passage of a title string, for either channel (N) that is shown set up of the estimation sort title at the upper left of the show screen. The string might be up to 12 characters long and should be encased in single quotes ('). The second one drops SUT order and reestablishes the standard estimation show sort titles.
54136A has a High Limit On and Low Limit On; this sets straight line point of confinement to (n) dB for the chose channel (N). These cutoff points can be utilized as a manual for test signal follow reaction. Setting these cutoff points suspends the utilization of any perplexing breaking points beforehand sent for that channel. Case: "LHI 2 10 dB" will set as far as possible for channel 2 to 10 dB. The breaking points can be utilized as a manual for test flag follow reaction. For instance, by setting low and high breaking points to reasonable esteems on channel 1, it is anything but difficult to check whether the flag follow (appeared on channel 1) of a gadget under test falls outside this characterized run. The outcome (pass/come up short) of this point of confinement tests might appear on screen (DLT), sent to the controller (OLT) or sent to the client I/O yields (LIO).
| Model | 54136A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 17 GHz to 26.5 GHz |
| Dynamic Range | −55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54136A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54136A:
| Model/Option | Description |
|---|---|
| 54136A Option1 | Rack mounting with slides |
| 54136A Option 2 | Step attenuator 70 dB RF |
| 54136A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54136A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54136A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54136A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54136A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54136A Option 5 | Add reference channel |
| 54136A Option 6 | Add external levelling |
| 54136A Option 7 | Internal distance-to-fault software |
| 54136A Option 8 | Internal relative group delay software |
| 54136A Option 12 | Add front panel cover |
| 54136A Option 13 | Add front mounted handles |
| 54136A Option 16 | +15 V DC supply for millimeter wave source module |
| 54136A Option 25 | Maintenance manual |
| 54136A Option 26 | Extra operation and GPIB programming manual |
| 54136A Option 33 | Canon printer |
