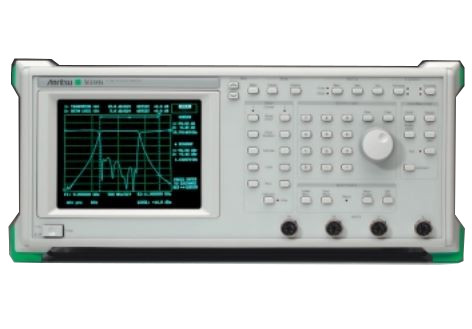

Anritsu 54177A Scalar Network Analyzer
The Anritsu 54177A Scalar Network Analyzer has Twofold trace data commands, if the controller is anticipating that Binary information should be returned (OBT, OCD, OIC, OTM, and so forth) and a mistake condition is recognized and revealed by the 541XXA, the controller's message cradle might be required to incorporate the (blunder) ASCII string end characters (0Dh,0Ah). The twofold information "Learn Commands", LBT, LCC, LCD, LTM, and LSS, must be ended utilizing a LF or CR, LF or EOI eliminator before the exchange of paired information has begun. Any event of ASCII information bytes 0Dh,0Ah inside the double information will be disregarded by these orders. A summary of the GPIB charges for setup and follow information spare, review and yield capacities (OSS, OCD, OTM, LSS, LCD and LTM).
The 54177A also offers an Output Binary Trace Data, which sends a paired portrayal of the estimation follow information for show channel (N) to the controller. This model is capable of learning Binary Trace Data; it gets the paired information stream sent from the controller. The information stream contains a parallel portrayal of the estimation follow information for show channel (N) already received by the controller (utilizing order OBT). The Binary Data Stream organized is the same with respect to summoning OBT. Likewise with charge LAT, the quantity of information focuses sent and the estimation should compare to the present settings.
If you are interested in this model, you should know that it comes with a manual, which is also available on the ApexWaves.com website.
| Model | 54177A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 10 MHz to 50 GHz |
| Dynamic Range | −55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54177A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54177A:
| Model/Option | Description |
|---|---|
| 54177A Option1 | Rack mounting with slides |
| 54177A Option 2 | Step attenuator 70 dB RF |
| 54177A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54177A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54177A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54177A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54177A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54177A Option 5 | Add reference channel |
| 54177A Option 6 | Add external levelling |
| 54177A Option 7 | Internal distance-to-fault software |
| 54177A Option 8 | Internal relative group delay software |
| 54177A Option 12 | Add front panel cover |
| 54177A Option 13 | Add front mounted handles |
| 54177A Option 16 | +15 V DC supply for millimeter wave source module |
| 54177A Option 25 | Maintenance manual |
| 54177A Option 26 | Extra operation and GPIB programming manual |
| 54177A Option 33 | Canon printer |
