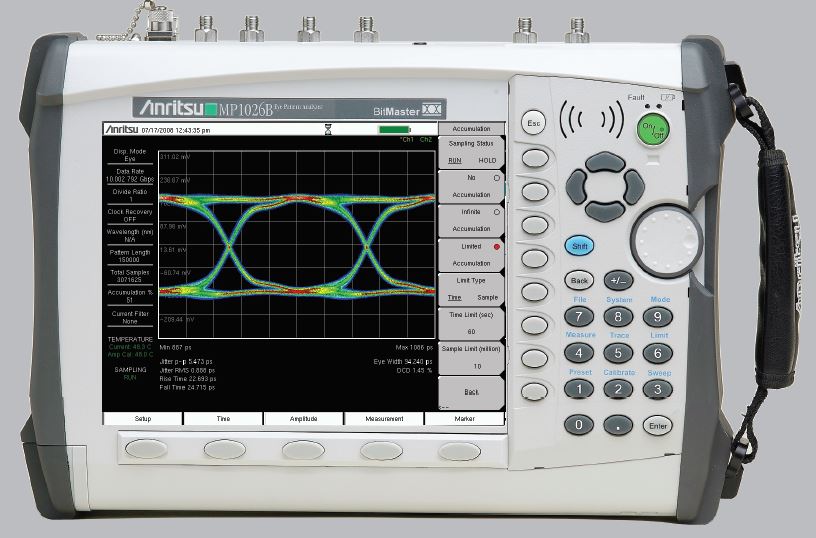

Anritsu MP1026B Handheld Bit Master Eye Pattern Analyzer
The MP1026B is a fast handheld bit master eye pattern analyzer from Anritsu. The Anritsu MP1026B offers eye pattern measurements for data rates from 0.1 to 12.5 Gbps and allows users to perform measurements anywhere and at any time. The Anritsu MP1026B comes with two electrical channel inputs with 25 GHz bandwidth. This feature is ideal for the measurement of OC-192/STM-64, 10G Fiber Channels, and 10G Ethernet. The Anritsu MP1026B bit master also comes with a large 8.4 inch (21.3 cm) full-color TFT screen, as well as 2GB of storage to save and access the setups.

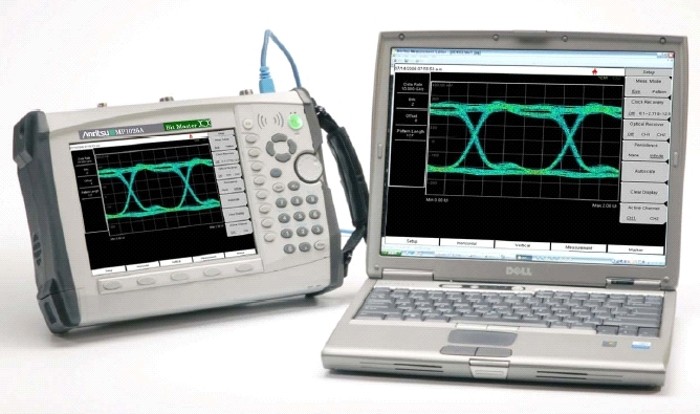

The Anritsu MP1026B bit master eye pattern analyzer comes with a fast sampling capability, with measurement updates at 100 k samples/sec. This feature enables fast jitter and mask measurements. The MP1026B offers eye pattern measurements for high-speed signals. It also triggers small pulse pattern displays for high-speed signals and can verify the performance of high-speed circuits, transceivers, and transponders. The Anritsu MP1026B comes with user-friendly front panel options. There are many functions and setup keys to enable easy operations. There is a Mini-B USB 2.0 Port and an Ethernet 10/100 Base-T RJ45 connector to enable remote programming, data transfer, and firmware upgrades.
The Anritsu MP1026B eye pattern analyzer has numerous valuable features, including the affordability and compact design, which ensures it will occupy very little bench space. It also ensures easy handling of the instrument. The MP1026B offers low-cost compliance mask testing as well. This test is applicable with the new MP1026B fully-integrated (Option 3) optical interface. This model also helps identify the causes of eye closure with portable measurement power for design and troubleshooting tasks.
| Model | MP1026B |
|---|---|
| Manufacturer | Anritsu Corporation (ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha) |
| Type | Handheld Bit Master Eye Pattern Analyzer |
| Bandwidth | Up to 25 GHz (typical) |
| Clock Trigger Frequency | 0.1 to 12.5 GHz |
| Storage | 2 GB |
| Display | 8.4 inch color |
| MP1026B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
