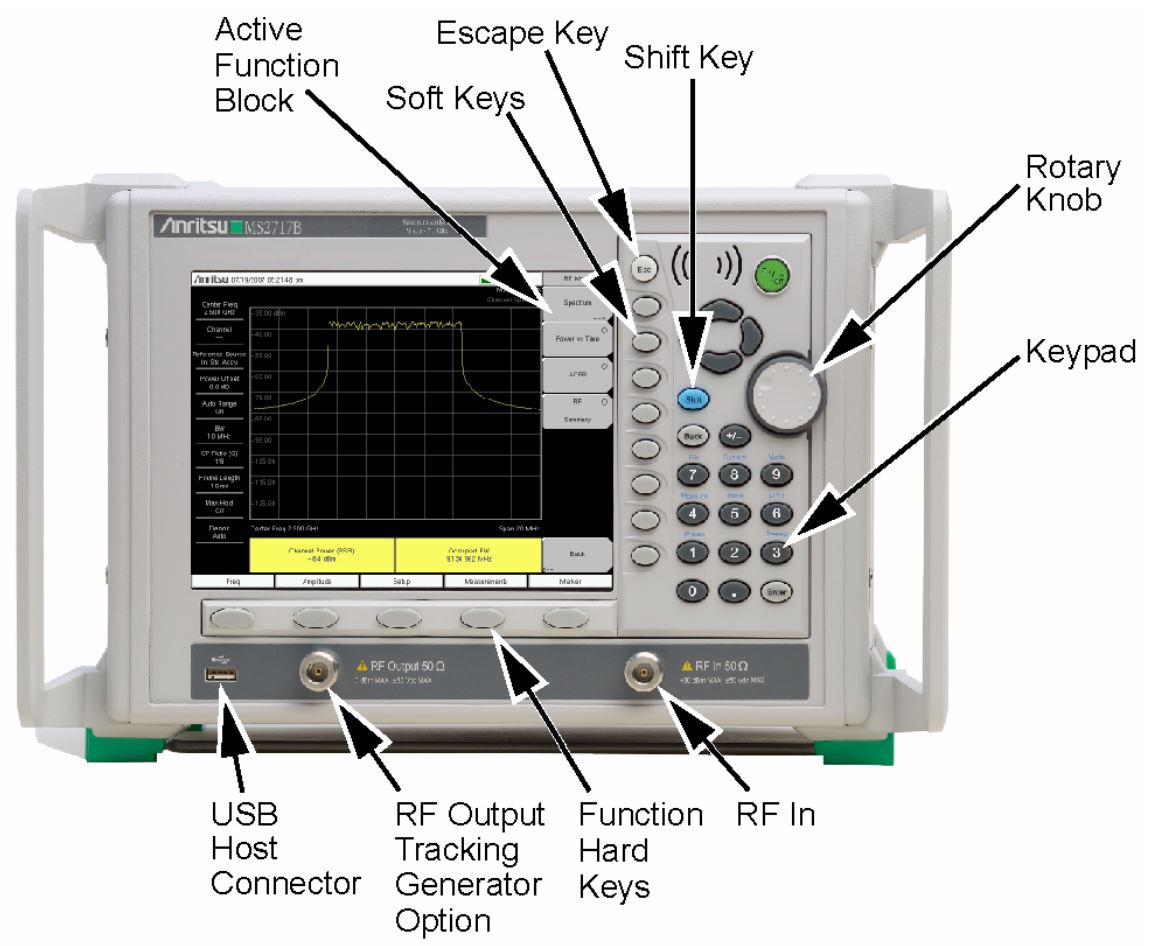

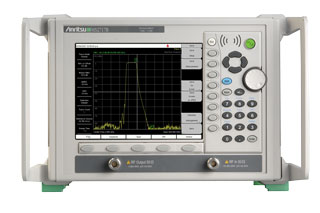

Anritsu MS2717B Economy Spectrum Analyzer
The Anritsu MS2717B is an Economy Microwave Spectrum Analyzer skilled to cover a range between 9 kHz to 7.1 GHz. This instrument enhances profitability, increment generation outputs, and lower cost-of-test. Regardless of whether you're using this model for assembling, R&D, or administration, you'll discover its propelled range investigation with exceptional esteem. The instrument can be improved with up to 15 remote options for testing conventions from GSM to Mobile WiMAX. RF estimation and demodulation options are available for every convention to improve testing of both transmitter outputs and regulation quality for astounding flexibility in the economy class of range analyzers.
The MS2717B offers the lower cost-of-proprietorship with amazing unwavering quality (guaranteeing insignificant downtime on generation lines), bolsters transmission estimations of parts to more than 100 dB dynamic range, brings down cost-of-test by utilizing better powerful range than increment determination data transmission. The RF Measurements options compose the spectral estimations into easy-to-read results: range, control versus time, control proportion, spectral emission mask, spurious outflow, and RF summary.
The microwave recurrence region to 20 GHz is populated with an astonishing variety of frameworks working in basic applications and transmission advances. Specialists end up taking a shot at a wide range of radar frameworks, satellite and terrestrial interchanges, and aviation and resistance gadgets. In every one of these frameworks, engineers rely upon the best RF transmission and modulation execution to accomplish their key goals.
Look at the manual of this item on the ApexWaves.com site and find more features about this model.
| Model | MS2717B |
|---|---|
| Manufacturer | Anritsu Corporation (ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha) |
| Series | Economy Spectrum Analyzer |
| Type | Spectrum Analyzer |
| VNA Frequency | 9 kHz to 7.1 GHz |
| Dynamic Range | 100 dB |
| Screen Size | 8.4 inch Color TFT Display |
| Storage | 256 MB Internal Storage |
| MS2717B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2717B:
MS2717B FAQ- Anritsu
Frequently Asked Questions
Question:
My Anritsu Spectrum Analyzer is showing the message “Trace not saved.”
Answer:
To rectify this, wait for a minimum of one complete sweep and attempt saving again.
Question:
What do I do if my Anritsu Spectrum Analyzer is displaying the message, “Operation not permitted in Recall Mode?”
Answer:
This message means that you attempted to perform an operation on a recalled trace. Many of the operations are only available for use on a live or active trace.
Question:
What is the resolution bandwidth for the MS2717B Anritsu Spectrum Analyzer?
Answer:
The resolution bandwidth for this model is from 1 Hz to 3 MHz.
Question:
What equipment is recommended for testing and maintaining the MS2717B Spectrum Analyzer?
Answer:
Many instruments can be used to aid in testing and maintaining the MS2717B. Some of them include: a synthesized signal generator, power meter, power sensor, VNMS, fixed attenuator, power splitter, coaxial cable, and a low frequency cal fixture.
Question:
If the SMP Adapter breaks on my MS2717B, is this part replaceable?
Answer:
Yes. The part number is 513-80.
| Option Description |
|---|
| MS2717B-007 Secure Data Operation Option |
| MS2717B-009 RF and Demodulation Hardware |
| MS2717B-017 GPIB Option |
| MS2717B-019 High Accuracy Power Meter |
| MS2717B-020 Tracking Generator |
| MS2717B-040 GSM/GPRS/EDGE RF Measurements (requires Option 009) |
| MS2717B-041 GSM/GPRS/EDGE Demodulator (requires Option 009) |
| MS2717B-042 CDMA RF Measurements (requires Option 009) |
| MS2717B-043 cdmaOne and CDMA2000 1xRTT Demodulator (requires Option 009) |
| MS2717B-044 WCDMA/HSDPA RF Measurements (requires Option 009) |
| MS2717B-045 WCDMA Demodulator (requires Option 009) |
| MS2717B-046 Fixed WiMAX RF Measurements (requires Option 009) |
| MS2717B-047 Fixed WiMAX Demodulation (requires Option 009) |
| MS2717B-060 TD-SCDMA RF Measurements (requires Option 009) |
| MS2717B-061 TD-SCDMA Demodulator (requires Option 009) |
| MS2717B-062 EVDO RF Measurements (requires Option 009) |
| MS2717B-063 EVDO Demodulator (requires Option 009) |
| MS2717B-065 WCDMA/HSDPA Demodulator (requires Option 009) |
| MS2717B-066 Mobile WiMAX RF Measurements (requires Option 009) |
| MS2717B-067 Mobile WiMAX Demodulator (requires Option 009) |
