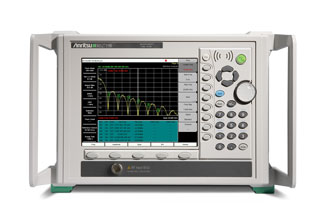

Anritsu MS2719B Economy Spectrum Analyzer
Anritsu developed the MS2719B Microwave Spectrum Analyzer as one of their most economic and qualified products. With a Frequency Range between 9 kHz to 20 GHz, this instrument incorporates a duplicate of Anritsu's Master Software Tools™ for Windows® 2000/XP. This enables an administrator to include the handling capacities of a PC and to shape an intense and adaptable estimation arrangement.
The MS2719B is suited for testing advanced microwave framework signals. With an appealing mix of cost and execution, the MS2719B offers highlights and details typically discovered only on higher performing range analyzers. For instance, a run of the mill dynamic scope of 100 dB permits synchronous estimation of both huge and little signals in intermodulation distortion estimations. With regular spectral purity of - 110 dBc/Hz at 10 kHz balance, the MS2719B now allows reasonable assessment of your most difficult nearby oscillators.
The modulation analysis fused in this model offers complete testing of rising conventions that brings down cost-of-test, increment administrator profitability with less keystrokes, and precisely and rapidly decides if frameworks are working inside determination. On the other hand, the R&D Environment offers benefits like exact portrayal linearity of dynamic gadgets and execution of local oscillators, enhancement of dynamic range for exactness, and complex marker capacities offer adaptable choices to rapidly extricate estimation results. The manual of this model can be found on the ApexWaves.com site.
| Model | MS2719B |
|---|---|
| Manufacturer | Anritsu Corporation (ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha) |
| Series | Economy Spectrum Analyzer |
| Type | Spectrum Analyzer |
| VNA Frequency | 9 kHz to 20 GHz |
| Dynamic Range | 100 dB |
| Storage | 256 MB Internal Storage |
| MS2719B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2719B:
MS2719B FAQ- Anritsu
Frequently Asked Questions
Question:
Is the main keypad replaceable for the MS2719 B Anritsu Spectrum Analyzer?
Answer:
Yes. The part number is 61362.
Question:
How big is the screen for the MS2719B?
Answer:
The MS2719B has an 8.4 inch full-color TFT display screen.
Question:
What are the benefits for the R&D environment while using the Anritsu MS2719B Spectrum Analyzer?
Answer:
The benefits of this series are: the wide dynamic range and phase noise performance, the front panel USB 2.0 Host connector, total marker flexibility, and unparalleled spectrum and optional modulation analysis capabilities.
Question:
How much does the MS2719B weigh?
Answer:
Less than 12 pounds.
Question:
What optional capabilities can I add to this model?
Answer:
Several of the options are: a tracking generator option, high accuracy power meter, a rack mount chassis, W-CDMA/HSDPA Measurements, and W-CDMA/HSDPA Demodulation.
| Option Description |
|---|
| MS2719B-007 Secure Data Operation Option |
| MS2719B-009 RF and Demodulation Hardware |
| MS2719B-017 GPIB Option |
| MS2719B-019 High Accuracy Power Meter |
| MS2719B-040 GSM/GPRS/EDGE RF Measurements (requires Option 009) |
| MS2719B-041 GSM/GPRS/EDGE Demodulator (requires Option 009) |
| MS2719B-042 CDMA RF Measurements (requires Option 009) |
| MS2719B-043 cdmaOne and CDMA2000 1xRTT Demodulator (requires Option 009) |
| MS2719B-044 WCDMA/HSDPA RF Measurements (required Option 009) |
| MS2719B-045 WCDMA Demodulator (requires Option 009) |
| MS2719B-046 Fixed WiMAX RF Measurements (requires Option 009) |
| MS2719B-047 Fixed WiMAX Demodulation (requires Option 009) |
| MS2719B-060 TD-SCDMA RF Measurements (requires Option 009) |
| MS2719B-061 TD-SCDMA Demodulator (requires Option 009) |
| MS2719B-062 EVDO RF Measurements (requires Option 009) |
| MS2719B-063 EVDO Demodulator (requires Option 009) |
| MS2719B-065 WCDMA/HSDPA Demodulator (requires Option 009) |
| MS2719B-066 Mobile WiMAX RF Measurements (requires Option 009) |
| MS2719B-067 Mobile WiMAX Demodulator (requires Option 009) |
| MS2719B-089 IF Output Option |
