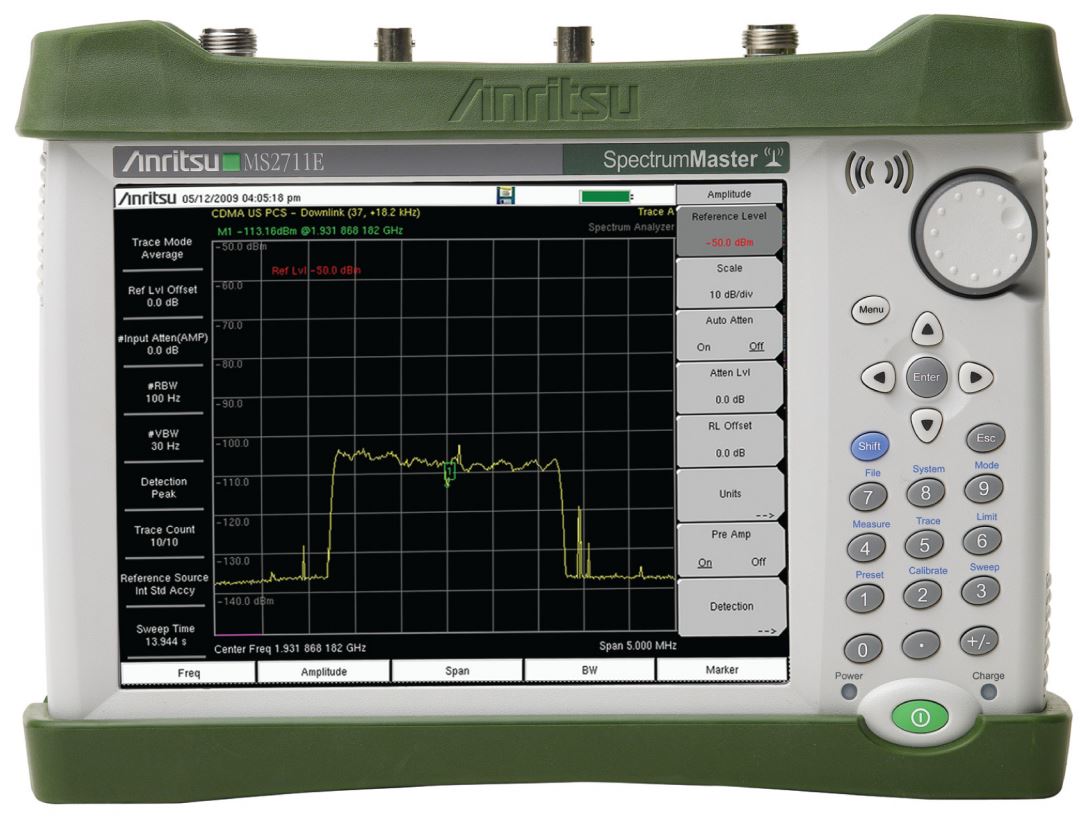

Anritsu Handheld Spectrum Analyzer MS2711E
The Anritsu Handheld Spectrum Analyzer MS2711E has a massive 8.4-inch daylight viewable touchscreen display and a net weight < 3.45 kilogram. The Anritsu MS2711E is a Compact Spectrum Analyzer designed especially for field technicians, installers, radio frequency (RF) engineers, etc. Among the greatest features of the MS2711E Handheld Spectrum Analyzer are: the frequency range encompassing 9 kHz - 3 GHz, an interference analyzer with mapping, a high precision power meter, a channel scanner, AM/FM/PM, GPS analyzer, 3 hours maximum battery life, a field replaceable battery, and a menu-driven touchscreen interface.
This model is equipped with a large internal memory, large enough to store around 2,000 traces or measurement setups. From a fully charged battery, the Spectrum Analyzer MS2711E can be operated from a 12-volt DC source. However, users can keep spare batteries as well because this instrument is equipped with field-replaceable batteries.
The Anritsu MS2711E has features like excellent repeatability, high sensitivity, and the convenient operating procedure is an ideal tool to pinpoint the smallest degradation in system`s performance and for easy verification or validation of system compliance as well. Following are a few typical applications where MS2711E can be employed for high precision: Field Strength Measurements, Spectrum Monitoring, Tracking Generator, EMF Measurement System, and for Interference Analysis of land mobile, radio systems, Wi-Fi & cellular systems.
This Spectrum Analyzer is suitable for mobile operators, cellular providers, and military spectrum analysis. For further information and to access the product’s manual, you can visit ApexWaves.com website.
| Model | MS2711E |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Handheld Spectrum Analyzers |
| Type | Handheld Spectrum Analyzer |
| Frequency | 9 kHz to 3 GHz |
| Dynamic Range | >85 dB |
| Display | 8.4 inch daylight viewable touchscreen |
| Memory | 2,000 stored traces and 2,000 test setups |
| MS2711E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2711E:
MS2711E Anritsu Handheld Spectrum Analyzer FAQ:
Question:
What is Option 29, the power meter function, used for on the MS2711E?
Answer:
Option 29 performs channelized transmitter power measurements.
Question:
What types of directional antennas are available for the MS2711E?
Answer:
There are eight types: 600 to 21000 MHz, 500 to 3000 MHz, 2400 to 2500 MHz, 1920 to 2170 MHz, 1710 to 1880 MHz, 822 to 900 MHz, 885 to 975 MHz, and 1850 to 1990 MHz.
Question:
Is there a certain type of GPS antenna necessary for the interference mapping measurements on the MS2711E?
Answer:
Yes, the 2000-1528-R GPS antenna, along with Option 31, is needed for interference mapping measurements.
