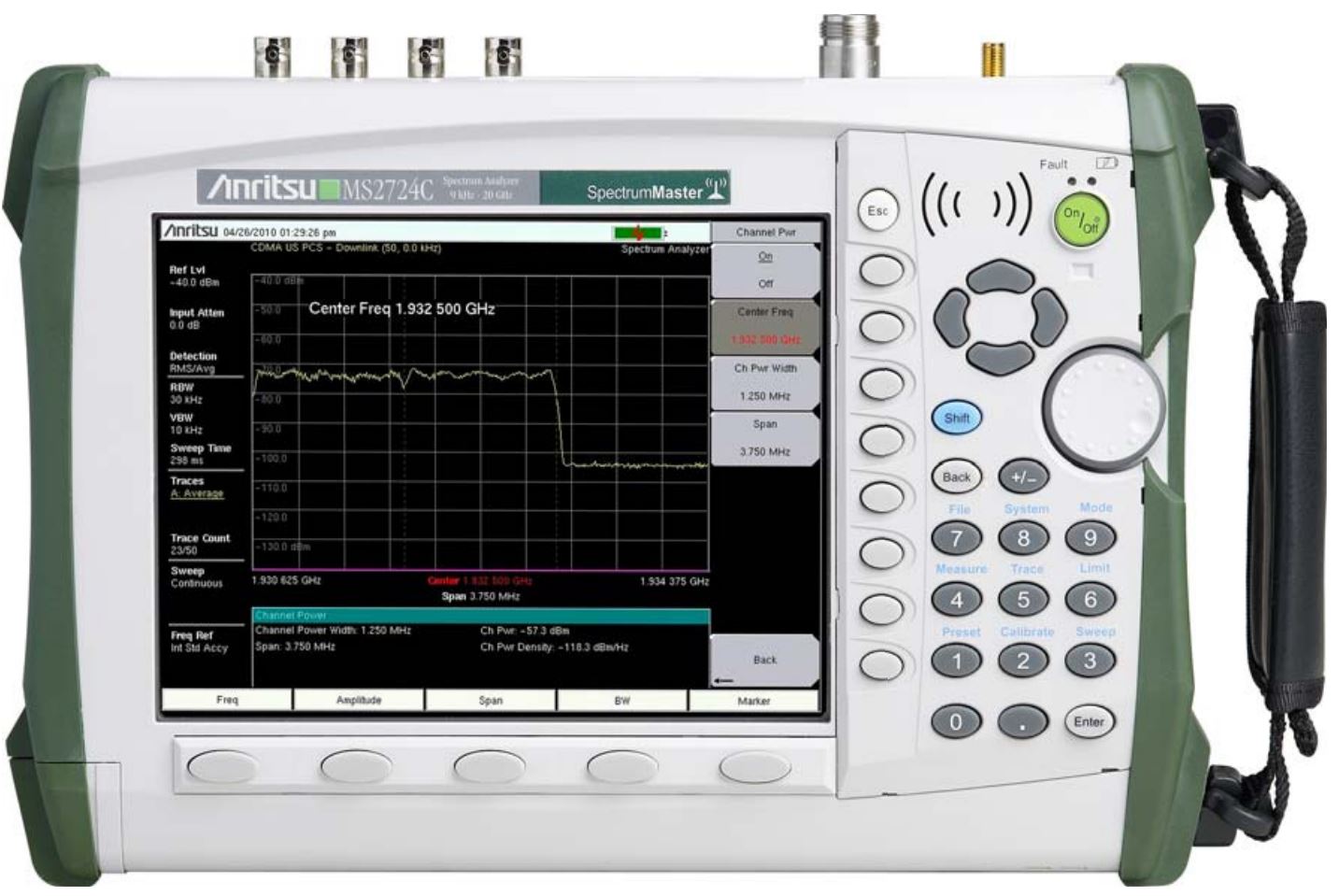

Anritsu Spectrum Analyzer MS2724C
The MS2724C Spectrum Analyzer is a handheld, lightweight and compact model created by Anritsu - a mighty instrument to measure the power of spectrums of known/unknown signals. It can collect information such as the composition and magnitude of signals compared to its frequency.
The powerful combination of low phase noise, wide dynamic range and full RBW range, down to 1 Hz in this model, provides you with better chances to find hidden transmitters operating at frequencies near a high-power transmitter. The MS2724C comes with new fast sweep mode designed with parading busting tendency to set resolution bandwidth from 10 MHz to 30 KHz with zero effect on sweep speed.
The MS2724C Spectrum Analyzer is a simple but powerful instrument. As a technician, you will be able to have more control over the features and settings not found on lab-grade benchtop analyzers. This device is designed for one-button measurements and have several other powerful features like: different sweep detection methods including Quasi-Peak and true RMS, enhanced market functions, the capturing of I/Q waveform, and advanced limit line functions.
For advanced post measurement operations and the remote controlling of the instrument over LAN, the Anritsu MS2724C Spectrum Analyzer can be coupled with a PC. Each unit is delivered with a powerful propriety software program that can be used for functions like reporting, transfer, and capture of the measurement data. The MS2724C Spectrum Master is designed to withstand challenging testing environments and is used to operate cordlessly using easily replaceable batteries.
For access to the Anritsu MS2724C Manual, you can visit ApexWaves.com.
| Model | MS2724C |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Spectrum Master |
| Type | Handheld Spectrum Analyzer |
| Frequency | 9 kHz to 20 GHz |
| Display | LCD display, viewable in daylight |
| Memory | 256 MB |
| Battery | Up to 2.5 hours |
| MS2724C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2724C:
MS2724C Anritsu Spectrum Master- FAQ:
Question:
What is the dynamic range for the MS2724C?
Answer:
The dynamic range is > 104 dB in 1 Hz RBW.
Question:
Does the MS2724C have different display options available?
Answer:
Yes, there are several display options on the MS2724C: normal, black and white, night vision, and high contrast.
Question:
How large is the display screen on the MS2724C?
Answer:
The display is 8 inches.
Question:
If I would like to order another rechargeable battery for my MS2724C, how do I know what the part number is?
Answer:
The part number should be listed in the manual. The rechargeable battery for the MS2724C is 633-44.
Delivery:
Eligible returns may be accepted within 30 days at Apex Waves’ discretion. A 25% restocking fee applies; non-refundable and built-to-order products are excluded.
Payment:
Receive Price & Availability Today!
Ask About Our Tiered Calibration Levels
Option & Modules:
Confirm Your Requirements or Versions
Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
