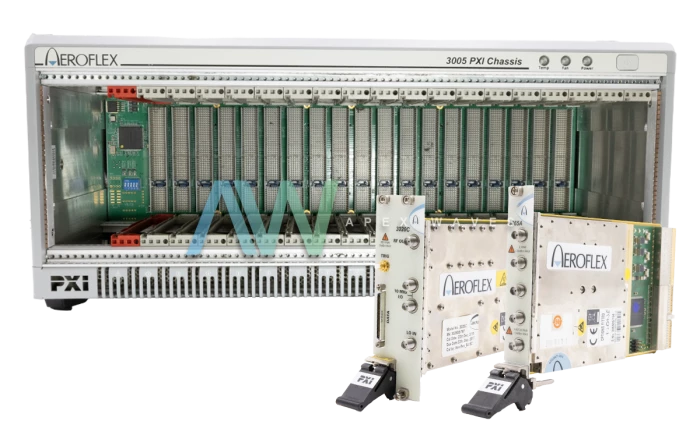

Aeroflex - RF Digitizers - Aeroflex 3030A
❮ ❯

Actual item may vary if no part number is provided on quote request.

Aeroflex - RF Digitizers - Aeroflex 3030A
Aeroflex - RF Digitizers - Aeroflex 3030A - Wiring
Aeroflex 3030A New
Aeroflex 3030A Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the Aeroflex 3030A

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships in 5-7 Days

Aeroflex 3030A PXI Wideband RF Digitizer

The Aeroflex 3030A is a PXI wideband RF digitizer that provides high accuracy RF signal digitization. The unit offers a 330 MHz–3 GHz frequency range, maintaining stability across demanding conditions due to its controlled architecture. The module ensures consistent identification within integrated automation racks.The 3030A RF digitizer supports a 33 MHz corrected bandwidth that upholds level reliability. The device offers 14 bit A/D resolution which improves low level measurement detail. It works at a 103.68 MHz sample rate that captures transient RF activity effectively and remains aligned with established PXI measurement frameworks.

The PXI-3030A digitizer gives a 75 dB spurious free dynamic range that supports clean RF evaluation. Its 75 dB intermodulation range helps maintain linearity under two tone excitation. The unit achieves noise spectral density values below -145 dBm per hertz below one gigahertz. The performance above one gigahertz remains stable within noise floor values.

The 3030A provides 128 million samples of digital IF memory which supports extended capture windows. Real time digital output is available through the LVDS interface which ensures controlled throughput. Residual responses remain below -100 dBm when the RF input is terminated into 50 Ohms. The 3030A digitizer module has a RF input return loss that is found to be 16 dB when RF attenuation is 8 dB or higher which supports stable matching. The unit requires less than 5 minutes of warm up time which allows predictable operational readiness. The FFT spectrum analyzer suite supports detailed evaluation of linearity conditions. It also chains spectral characterization tasks under controlled RF input states.

The Aeroflex 3030A has high-level accuracy about 0.3 dB which benefits calibrated operations. It supports list mode operation that enables fast frequency settling within automated test sequences. The system offers digital IQ or digital IF output which provides flexible data routing and ensures a VSWR that remains under 2:1. The intermodulation characteristics typically reach 75 dB with two tone inputs at 0 dBm per tone. Adjacent channel leakage ratio performance reaches 63 dB on 3GPP downlink test model one. The 3030A digitizer’s uplink ACLR performance typically reaches 68 dB which improves air interface validation. Its operating humidity specification is 10 to 90% non condensing in accordance with IEC 60068 2 5

ModelAeroflex 3030A
ManufacturerAeroflex
Part TypePXI Wideband RF Digitizer
Corrected Bandwidth33 MHz
A/D Resolution14 bit
Frequency Range330 MHz to 3 GHz
Digital IF Memory128 M samples
ACLR (3GPP Downlink Test Model 1)63 dB
Relative Humidity10% to 90%
Warm-Up TimeLess than 5 minutes
